30L Double Layer Stainless Steel Reactor For Distillation
30L Double Layer Stainless Steel Reactor For Distillation

30L Double Layer Stainless Steel Reactor For Distillation

LSR-30L

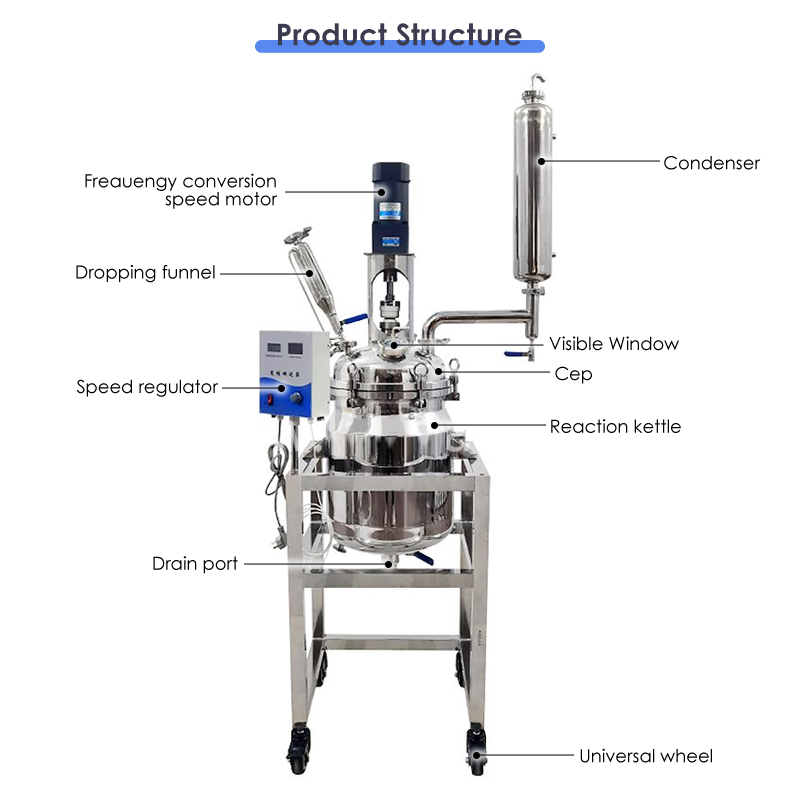

The overall structure of LABOAO 30L chemical stainless steel double layer reactor is made of stainless steel S304 or S316L, which is highly resistant to corrosion, high temperature, and high pressure, has higher tolerance, has a stronger surface, is not easily damaged, and is easy to clean and maintain. Mainly used in industrial-scale chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature and high-pressure reactions.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

SPECIFICATIONS

Model

LSR-30L

Kettle   volume

30L

Mezzanine   volume

8L

Voltage/frequency

220V/50   Hz

Reaction   temperature

-120~260℃

Pressure

-0.1~0.3Mpa

Stirring   speed

0-460rpm

Power

200W

Sealed   form

Stainless   steel graphite combination mechanical seal

Number   of cauldron lid openings

Eight   ports (optional)

Material

SUS316L/SUS304

Sight   glass

Φ32

Scraper   sight glass

Φ51

Temperature   measuring hole

50.5   chuck/Φ12 temperature   measuring tube

Return   hole

50.5   chuck/1000ml funnel

Drop   hole

50.5   chuck/Φ38 return port

Pressure   gauge

50.5   chuck/± integrated pressure gauge

Impeller

SUS316L   propeller mixing paddle

Condenser

50.5 chuck/φ89   column cooling

Exhaust

2-point   exhaust valve

Bottom   valve

50.5   chuck/Φ89 column   cooling

Overall   dimensions

530*530*1900mm

Optional(Additional   fee)

Explosion-proof   whole machine/

electric   heating/Total 316L/collection tank/

mobile   frame /spraying PTFE

6 Good Reasons To Choose LABOAO 30L Double Layer Stainless Steel Reactor For Distillation
