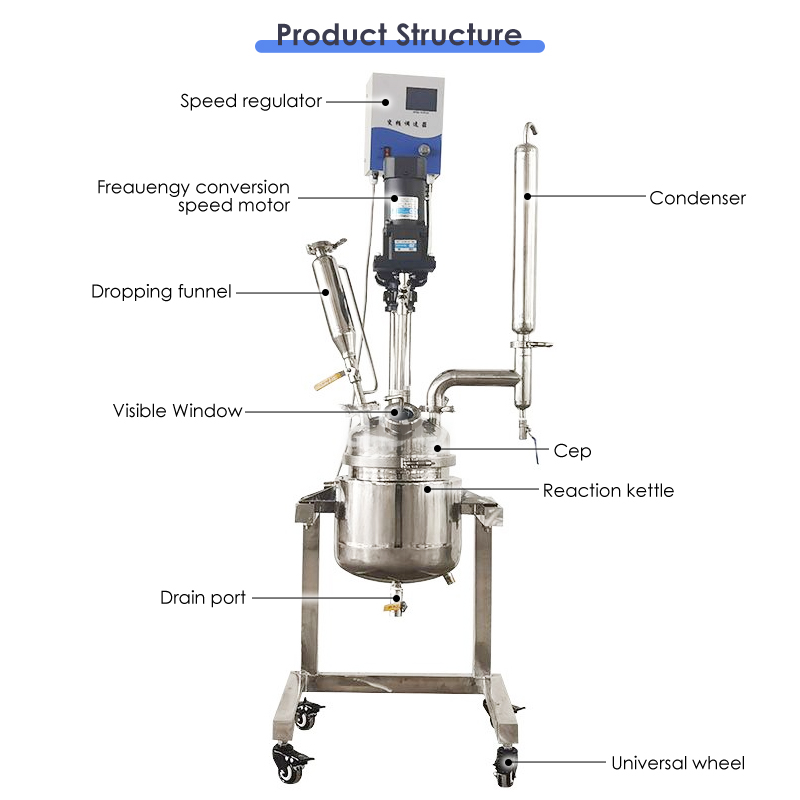

5L Lab Jacketed Stainless Steel Reactor

LSR-5L

The overall structure of LABOAO 5L stainless steel double layer reactor is made of stainless steel S304 or S316L, which is highly resistant to corrosion, high temperature, and high pressure, has higher tolerance, has a stronger surface, is not easily damaged, and is easy to clean and maintain. Mainly used in industrial-scale chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature and high-pressure reactions.

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

SPECIFICATIONS

Model	LSR-5L
Kettle volume	5L
Mezzanine volume	0.6L
Voltage/frequency	220V/50 Hz
Reaction temperature	-120~260℃
Pressure	-0.1~0.3Mpa
Stirring speed	0-460rpm
Power	120W
Sealed form	skeleton seal
Number of cauldron lid openings	Seven ports (optional)
Material	SUS316L/SUS304
Sight glass	Φ32
Scraper sight glass	Φ51
Temperature measuring hole	50.5 chuck/Φ8 temperature measuring tube
Return hole	50.5 chuck/Φ38 return port
Drop hole	50.5 chuck/constant pressure funnel 500ml
Impeller	SUS316L propeller mixing paddle
Exhaust	2-point exhaust valve
Bottom valve	6 points ball valve
Overall dimensions	4504801500mm
Optional(Additional fee)	Explosion-proof whole machine/ electric heating/Total 316L/collection tank/ mobile frame /spraying PTFE

6 Good Reasons To Choose LABOAO 5L Lab Jacketed Stainless Steel Reactor

Frequency conversion speed regulation, AC induction motor. The speed is constant, no brushes, no sparks, safe and stable, and can work continuously.
The entire set of instruments is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.
The mezzanine interface is connected with hot oil for circulation and heating reaction can be carried out, and the refrigerant liquid is connected with it for low-temperature reaction.
It can react at room temperature, and the reaction heat can be quickly taken away by running tap water on it.
The lower discharge port uses a stainless steel ball valve. There is no dead space in the container and it is removable to facilitate the discharge of solid materials.
Six-port reactor cover, extra-large port design for easy cleaning, standard port sockets for optional assembly of reflux and distillation synthesis devices.
