50L Double Layer Jacketed Stainless Steel Reactor
50L Double Layer Jacketed Stainless Steel Reactor

50L Double Layer Jacketed Stainless Steel Reactor

LSR-50L

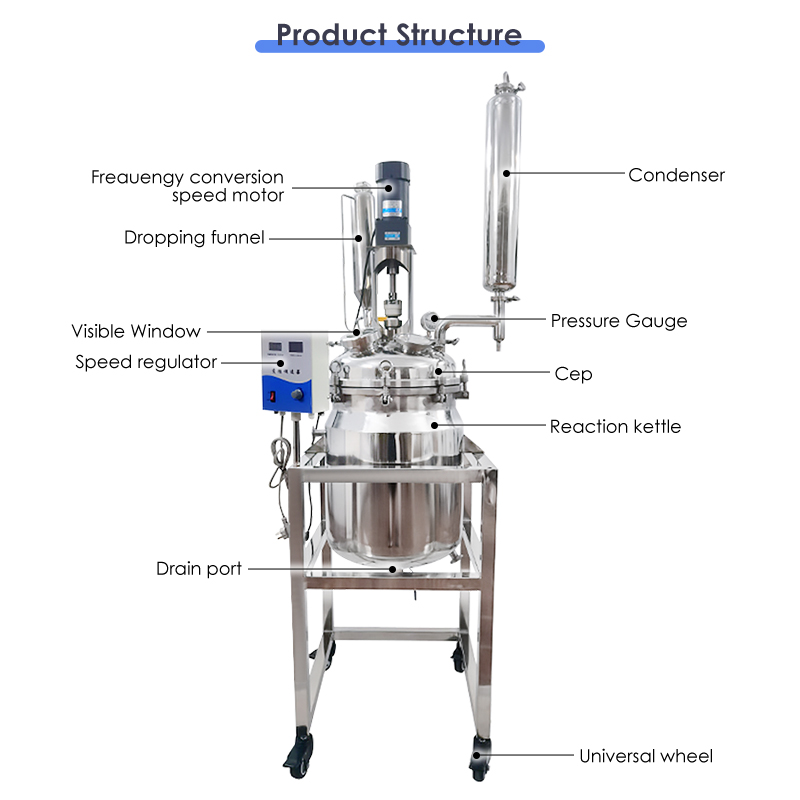

The overall structure of LABOAO 50L chemical stainless steel double layer reactor is made of stainless steel S304 or S316L, which is highly resistant to corrosion, high temperature, and high pressure, has higher tolerance, has a stronger surface, is not easily damaged, and is easy to clean and maintain. Mainly used in industrial-scale chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature and high-pressure reactions.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

SPECIFICATIONS

Model

LSR-50L

Kettle   volume

50L

Mezzanine   volume

15L

Voltage/frequency

220V/50   Hz

Reaction   temperature

-120~260℃

Pressure

-0.1~0.3Mpa

Stirring   speed

0-460rpm

Power

200W

Sealed   form

Stainless   steel graphite combination mechanical seal

Number   of cauldron lid openings

Eight   ports (optional)

Material

SUS316L/SUS304

Sight   glass

Φ89

Feeding   port

Φ89

Temperature   measuring hole

50.5   chuck/Φ12 temperature   measuring tube

Return   hole

50.5   chuck/2000ml funnel

Drop   hole

50.5   chuck/Φ38 return port

Pressure   gauge

50.5   chuck/± integrated pressure gauge

Impeller

SUS316L   propeller mixing paddle

Condenser

Φ108/length 600mm

Exhaust

2-point   exhaust valve

Bottom   valve

Φ35/50.5   chuck

Overall   dimensions

580*580*2100mm

Optional(Additional   fee)

Explosion-proof   whole machine/

electric   heating/Total 316L/collection tank/

mobile   frame /spraying PTFE
