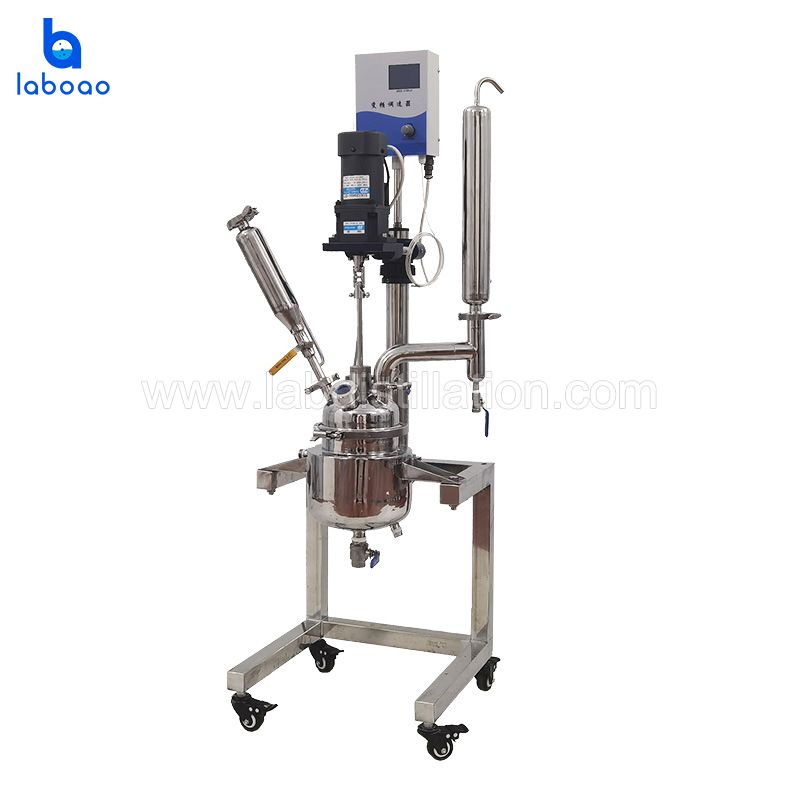

2L Small Jacketed Stainless Steel Reactor

LSR-2L
The overall structure of LABOAO 2L stainless steel double layer reactor is made of stainless steel S304 or S316L, which is highly resistant to corrosion, high temperature, and high pressure, has higher tolerance, has a stronger surface, is not easily damaged, and is easy to clean and maintain. Mainly used in industrial-scale chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature and high-pressure reactions.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

SPECIFICATIONS

Model

LSR-2L

Kettle   volume

2L

Mezzanine   volume

0.6L

Voltage/frequency

220V/50   Hz

Reaction   temperature

-120~260℃

Pressure

-0.1~0.3Mpa

Stirring   speed

0-460rpm

Power

120W

Sealed   form

skeleton   seal

Number   of cauldron lid openings

Seven   ports (optional)

Material

SUS316L/SUS304

Sight   glass

Φ32*2

Temperature   measuring hole

50.5   chuck

Return   hole

50.5   chuck/Φ38 return port

Drop   hole

50.5   chuck/constant pressure funnel 500ml

Impeller

SUS316L   propeller mixing paddle

Exhaust

2-point   exhaust valve

Bottom   valve

4   point ball valve

Overall   dimensions

450*450*1410mm

Optional(Additional   fee)

Explosion-proof   whole machine/

electric   heating/Total 316L/collection tank/

mobile   frame /spraying PTFE
