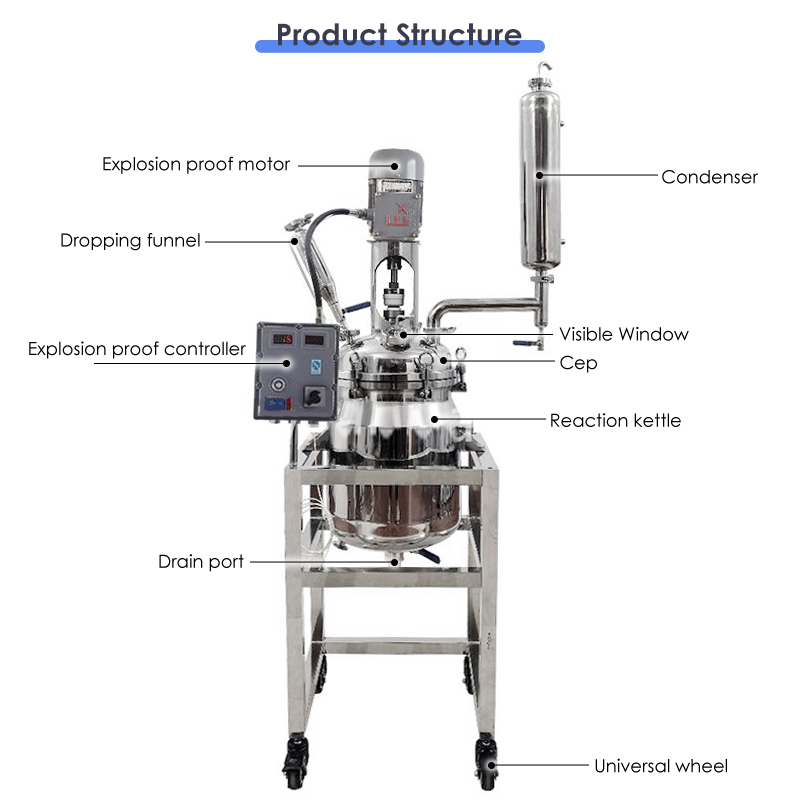

10L 20L 30L 50L Explosion Proof Double Layer Stainless Steel Reactor

LEXSR-10L/LEXSR-20L/LEXSR-30L/LEXSR-50L

The overall structure of LABOAO explosion proof stainless steel double layer chemical reactor is made of stainless steel S304 or S316L, which is highly resistant to corrosion, high temperature, and high pressure, has higher tolerance, has a stronger surface, is not easily damaged, and is easy to clean and maintain. Mainly used in industrial-scale chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature and high-pressure reactions.

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

SPECIFICATIONS

Model	LEXSR-10L	LEXSR-20L	LEXSR-30L	LEXSR-50L
Kettle volume	10L	20L	30L	50L
Mezzanine volume	3.8L	5L	8L	15L
Voltage/frequency	220V/50 Hz
Reaction temperature	-120~260℃
Pressure	-0.1~0.3Mpa
Stirring speed	0-460rpm
Power	370W
Sealed form	SUS304 ceramic combination mechanical seal
Number of cauldron lid openings	Eight ports (optional)
Material	SUS316L/SUS304
Sight glass	Φ32		Φ89
Scraper sight glass	Φ51		Φ89(Feeding port)
Temperature measuring hole	50.5 chuck/Φ10 temperature measuring tube		50.5 chuck/Φ12 temperature measuring tube
Return hole	50.5 chuck/1000ml funnel		50.5 chuck/2000ml funnel
Drop hole	50.5 chuck/Φ38 return port
Pressure gauge	50.5 chuck/± integrated pressure gauge
Impeller	SUS316L propeller mixing paddle
Condenser	50.5 chuck/φ89 column cooling		Φ108/length 600mm
Exhaust	2-point exhaust valve
Bottom valve	Φ35/50.5 chuck
Overall dimensions	4804801560	5005001850mm	5305301900mm	5805802100mm
Optional(Additional fee)	Explosion-proof whole machine/electric heating/Total 316L/collection tank/mobile frame /spraying PTFE

6 Good Reasons To Choose LABOAO 10L 20L 30L 50L Explosion Proof Double Layer Stainless Steel Reactor

Frequency conversion speed regulation, AC induction motor. The speed is constant, no brushes, no sparks, safe and stable, and can work continuously.
The entire set of instruments is made of SUS316L/SUS304 stainless steel, which has good chemical and physical properties.
The mezzanine interface is connected with hot oil for circulation and heating reaction can be carried out, and the refrigerant liquid is connected with it for low-temperature reaction.
It can react at room temperature, and the reaction heat can be quickly taken away by running tap water on it.
The lower discharge port uses a stainless steel ball valve. There is no dead space in the container and it is removable to facilitate the discharge of solid materials.
Eight-port reactor cover, extra-large port design for easy cleaning, standard port socket for optional assembly of reflux and distillation synthesis devices.
