1-1000mbar Laboratory Vacuum Controller

LVC-100

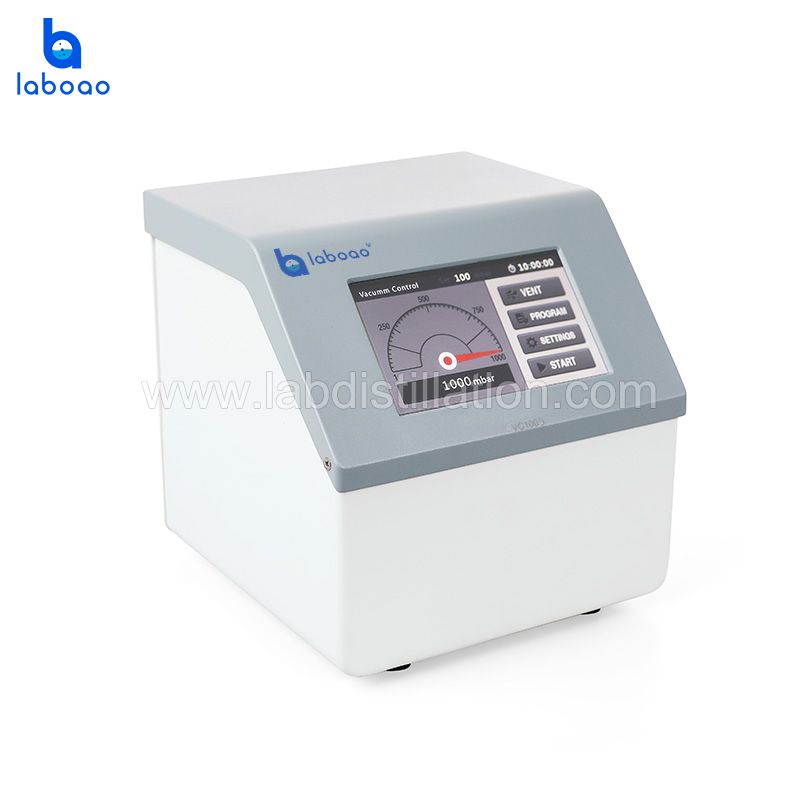

LVC-1000 vacuum controller regulates the vacuum level. Vacuum level can be set and tested from 1-1000mbar. More used for rotary evaporator, vacuum ovens and chambers, and other common laboratory vacuum processes. The controller stores up to 5 programmed methods, establishing up to 2 vacuum level setpoints and durations for each method. Convenient keypad enables rapid manual vacuum level adjustment.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

LVC-1000 vacuum controller is programmable, can save 5programs, every program has 5sections. TFT touch screen makes operation more convenient. All connecting parts are PTFE, ceramics high-performance materials, which can effectively resist the corrosion of organic solvents, water, acids and alkalis.

FEATURES

1.A wide range of measurement and control 1-1000mbar

2.Two control modes of single-point control and programmed control available for choice as needed

3.Can store up to 5 programs, each containing up to 5 segments of programming control

4.A large-size TFT touch screen display control allows easy operation

5.All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials and can effectively resist corrosion caused by organic solvents, water, acid and alkali

6.A built-in vent valve can feed inert gas into system equipment

7.One-stroke decompression allows easy installation and dismantling of vacuum system

8.Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection. Can also be operated in the normally open statue of pump

SPECIFICATIONS

Specifications

LVC-100

Vacuum setting range

1-1000mbar

Vacuum measurement range

1-1000mbar

Control operation mode

Single-point control mode,
  Programmed control mode

Control program

Can store up to 5 programs, each
  containing 5-step control (capable to
  set the degree of vacuum and time)

Setting method

Touch screen setting

Display

5'' TFT

Sensor overload pressure

1,500mbar

Connector diameter

8mm

Materials in contact with vapor

PTFE, PP, silicone and ceramics

Power

600w

Overall dimensions(W×D×H)

189×207×193mm

Weight

4.0KG

Power supply

110—240V,50Hz/60Hz

Operating environment

1040≤80%RH

5 Good Reasons To Choose LABOAO 1-1000mbar Laboratory Vacuum Controller
