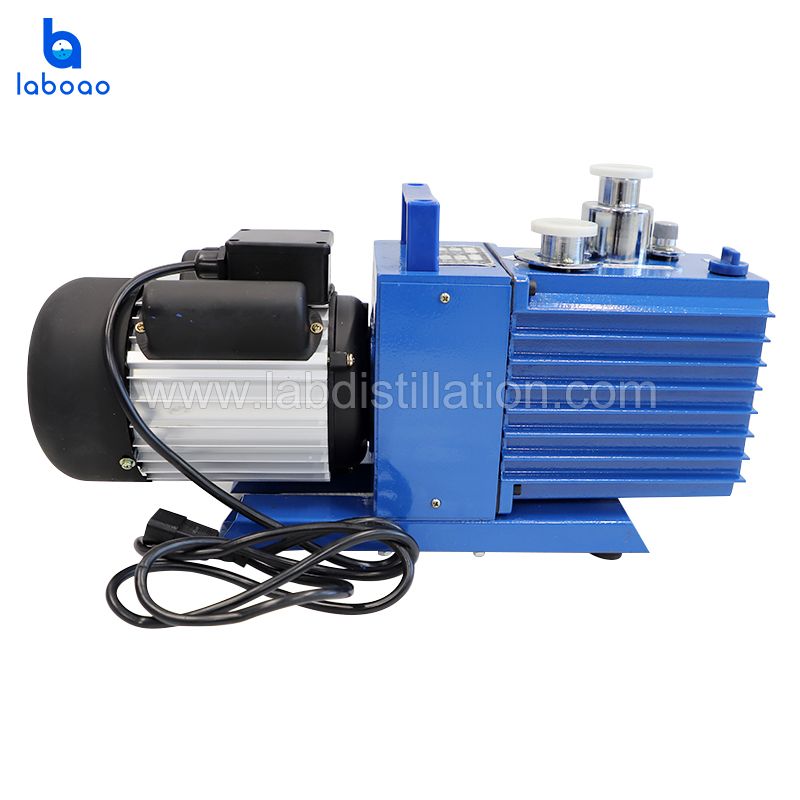

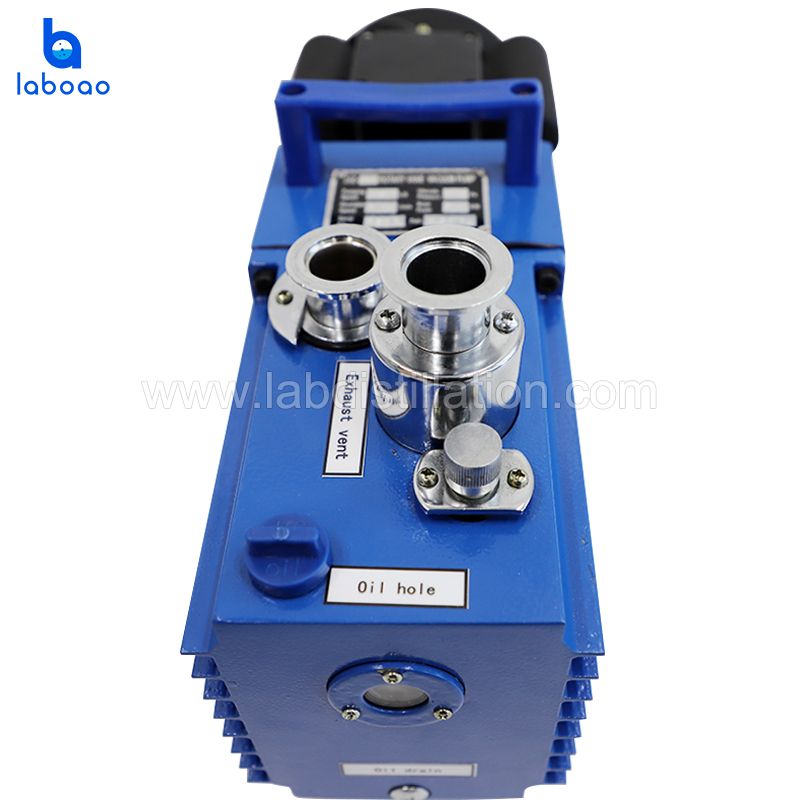

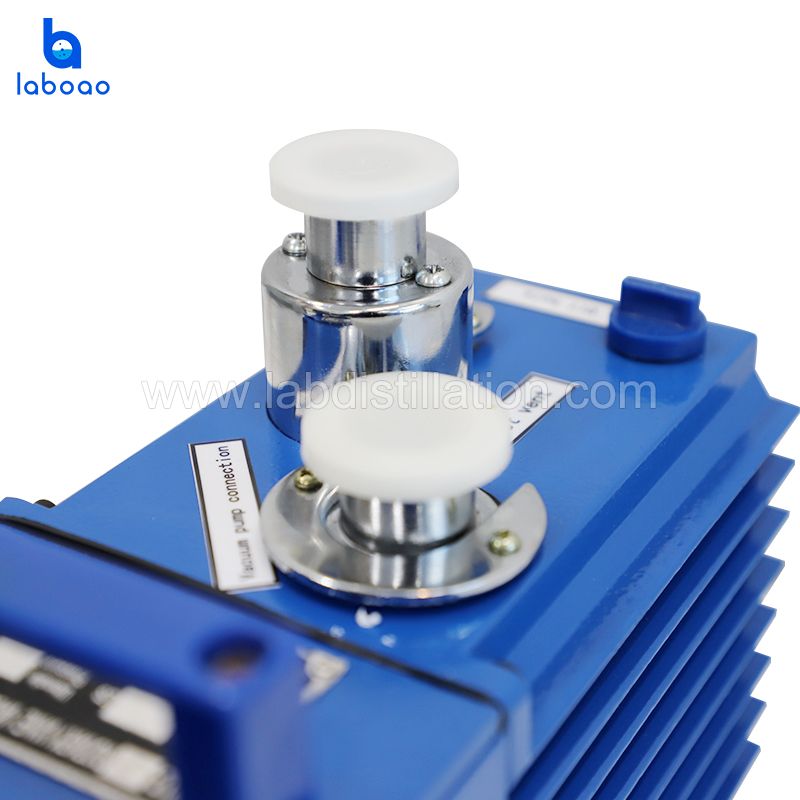

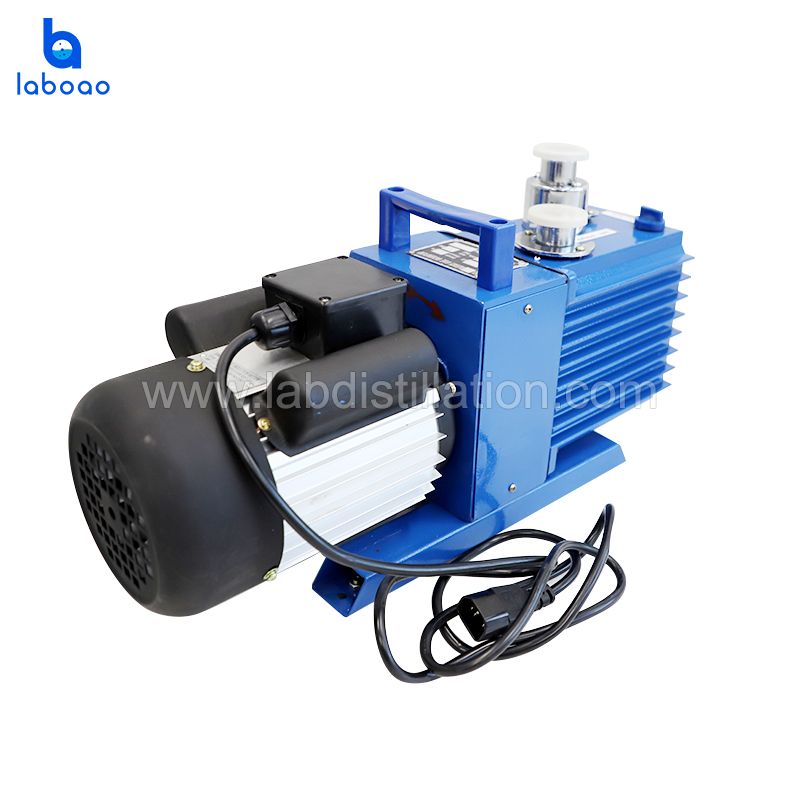

Rotary Vane Vacuum Pump

2XZ Series
This series of pumps are elementary equipment for pumping air from sealed vassals. It can be used alone, also can be used as the forepump, process pump or titanium pump of booster pump, diffusion pump, and molecular pump.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

This series of pumps are elementary equipment for pumping air from sealed vassals. It can be used alone, also can be used as the forepump, process pump or titanium pump of booster pump, diffusion pump, and molecular pump. The pumps are also used in making electrical vacuum cases, vacuum jointing, printing, photoengraving, food packaging, vacuum forming, refrigeration equipment repair and instruments or a set of equipments in laboratory, It is widely used in aerospace, semiconductor , coating , food packaging ,drying machines, refrigeration equipment, scientific research, medical treatment, electro 1ics, chemicals, medicine and laboratory or labouratory of universities and colleges.It is essential euipment for the above industry.

FEATURES

1. Small volume, low weight and low noise.

2. Equipped with gas ballast to pump a little water vapor.

3. Equipped with oil anti-suckback device.

4. 2XZ-2 with small cliber, 2XZ-4 ,and 2XZ-8Cpump with vacuumdrying oven, freezing dry machine and printing machine.

5. Euipped with small caliber transforming joints and KF joints.

SPECIFICATIONS

Model

2XZ-0.25

2XZ-0.5

2XZ-1

2XZ-2

2XZ-4

Pumping speed (L/S)

50HZ

0.25

0.5

1

2

4

Ultimate   pressurePa

Partial pressure

≤6×10-1

≤6×10-2

≤6×10-2

≤6×10-2

≤6×10-2

Total pressure

≤6.5

≤1.33

≤1.33

≤1.33

≤1.33

Rotary speedr/min)

50HZ

1400

1400

1400

1400

1400

Motor power (KW)

0.12

0.18

0.25

0.37

0.55

VoltageV)

220

220/380

220/380

220/380

220/380

Inlet diam(O.D.)mm

Φ12

Φ12

Φ12

Φ12

Φ12

Noise leveldBA

63

65

65

66

68

Oil capacityL

0.5

0.6

0.7

1

1.2

Dimensionsmm)

403*130*240

447*168*260

469*168*260

514*168*282

565*168*282

Gross weight/Net   weight(Kg

16/15

17/16

18/17

22/20

24/22
