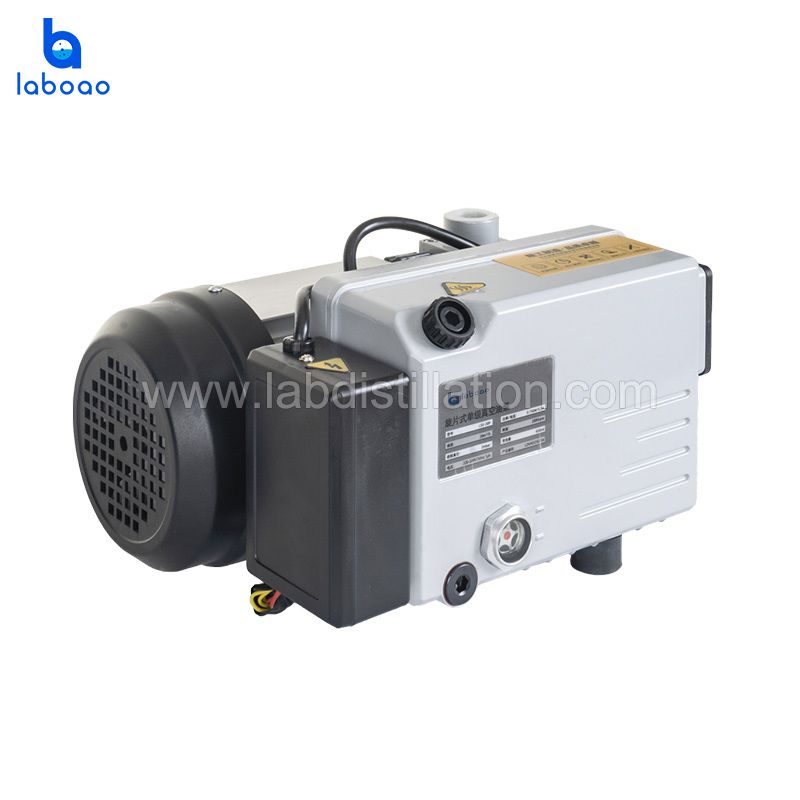

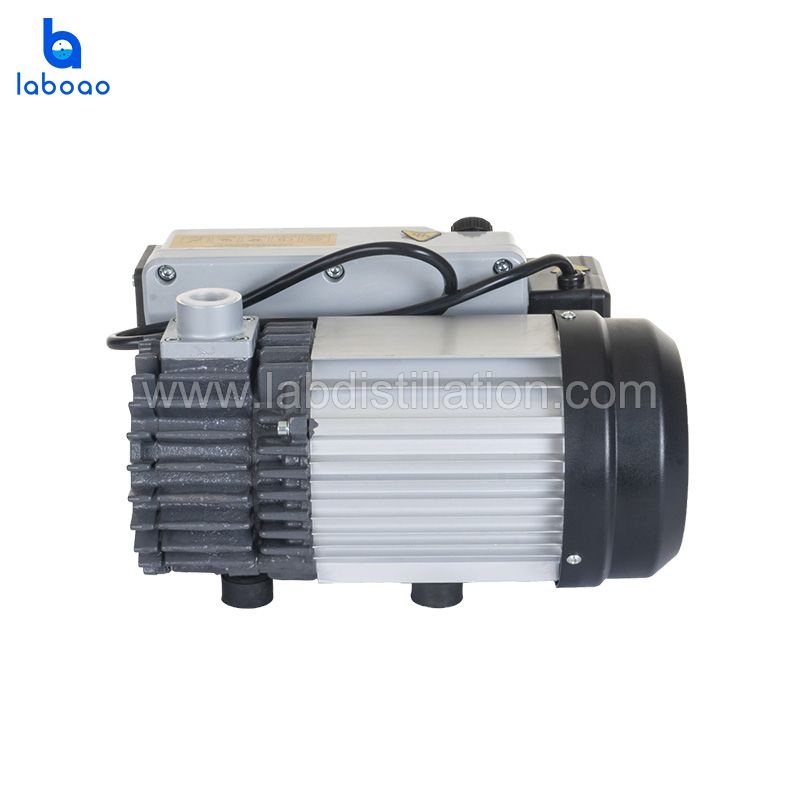

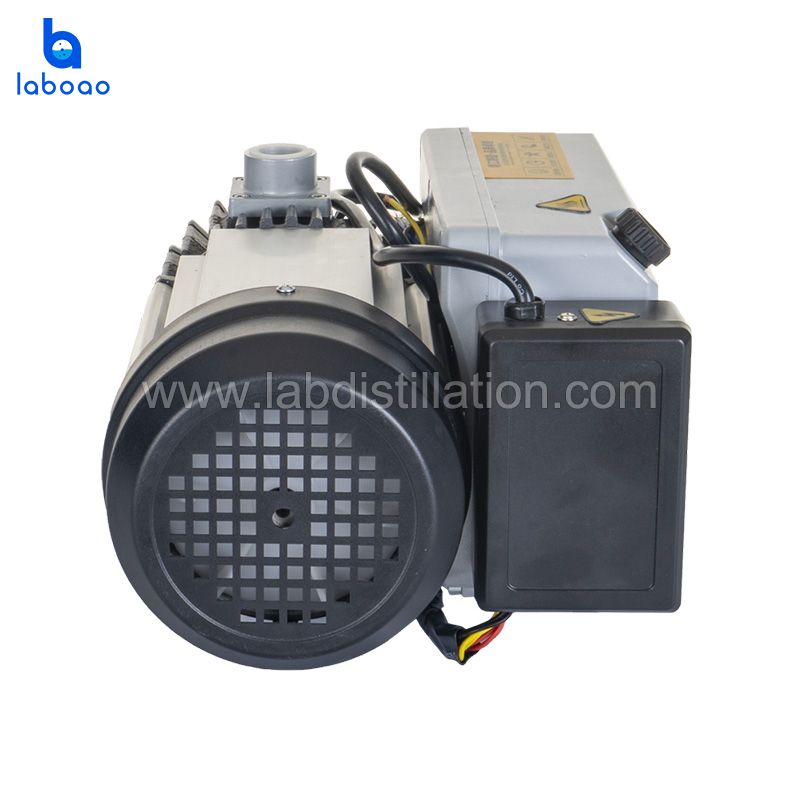

Single Stage Rotary Vane Vacuum Pump

LSV Series
The single stage rotary vane vacuum pump is a single-stage oil-sealed rotary vane vacuum pump. It is suitable for situations where the vacuum degree and flow rate requirements are low and long-term continuous operation is required. It needs to be replaced and waste disposed of regularly during use. It has a simple structure and is easy to manufacture, maintain and operate.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

The single stage rotary vane vacuum pumps LSV series with Integral cylinder structure, compact appearance, pump and motor integral design, lighter and smaller, to meet the size of various applications. Built-in high quality oil mist filter, effectively filtering oil mist, avoiding oil mist pollution and protecting the environment. Good heat dissipation, air-cooled structure, no need for external water-cooling tank.


Application

Analysis (mass spectrometry, electron microscopy)

Coating technology (surface protection, decorative layer, display, screen)

Vacuum metallurgy (vacuum brazing, vacuum sintering, vacuum alloying, furnace manufacturing)

Leak detection technology (vacuum equipment, car fuel tank, airbag box, packaging)

Lighting industry (lamp manufacturing)

Drying industry (vacuum drying, transformer drying)

Food packaging (vacuum packaging machine, vacuum pre sealing)

Pre stage pump used (as Roots pump, vacuum system maintenance use)

FEATURES

1. Anti-oil return structure. Effectively avoid and solve the problem of oil return in unexpected situations, so that your equipment will not be contaminated because of oil return.

2. Open type gas town. Long-term work, effectively solve the vacuum pump oil emulsification phenomenon.

3. Efficient oil mist filter . Built-in high-quality oil mist filter, effectively filter oil mist to avoid oil mist pollution of the environment, to protect the environment clean.

4. Fluorine rubber seals. Improve corrosion resistance and solve the problem of oil leakage.

SPECIFICATIONS

Model

LSV-2

LSV-20P

LSV-40

LSV-63

LSV-100

LSV-200

LSV-300

Rated flow rate

20m³/h 50HZ

40m³/h 50Hz

63m³/h

100m³/h

200m³/h Hz

300m³/h 0Hz

24m³/h 60Hz

48m³/h 60Hz

76m³/h 60Hz

120m³/h 0Hz

240m³/h 60Hz

360m³/h 0Hz

Extreme vacuum

1 mbar

0.5 mbar

0.1 mbar

Interface

G3/4"   G1/2"

G1-1/4"

G2"

Voltage

220-240v 50Hz

200-240/345-415v 50Hz

220-240/380-415v 50Hz

220-240Vh 60Hz

220-275/380-480v 60Hz

220-280/380-440v 60Hz

Motor power

0.75/0.9 KW

1.5 KW

2.2 KW

3.0 KW

5.5 KW

7.5 KW

Electric current

5.5/2.3A

5.0/2.9A

8.5/4.9A

11.8/6.8A

9.0/5.2A

16.7/9.6A

6/4A

5.4/3.1A

9.2/5.3A

13.0/7.5A

9.4/5.2A

17.3/11.0A

Rotational speed

3000/3600 r/min

1440/1720 r/min

1140/1720 r/min

1405/1720 r/min

1455/1720 r/min

Noise

68/70dB

63dB

64dB

65dB

69dB

72dB

Oil quantity

0.5L

1.5L

2L

2L

6.0L

8.0L

Weight

18.5 kg

43 kg

56 kg

70 kg

149 kg

193 kg
