DESCRIPTION
New 50L Rotary Evaporator
LRE-50
Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
Download
SPECIFICATIONS
Model | LRE-50 |
Voltage | 220V/50HZ/60HZ |
Rotary motor | 100W |
Lifting motor | 60W |
Heating power | 8KW |
Vacuum degree | 0.098Mpa |
Rotary flask | 50L |
Φ3550mm/Φ95mm Flange mouth | |
Collection flask | 20L |
Φ355mm/Φ60mm | |
Flange mouth | |
Rotary speed | 0-120rpm/min |
Temp. controlling range | 0-400℃ |
Temp. accuracy | ±1℃ |
Glass bear temp. | -80-250℃ |
Oil bath lifting stroke | 0-180(mm) |
Condenser size | Main Φ160×840H(mm) ViceΦ160×480H(mm) |
Feeding valve | Φ35 Flange mouth |
Release valve | Φ35 Flange mouth*2 |
Discharge valve | Φ10mmm Glass side discharge port |
Bath size | Φ550×320H(mm) |
76L | |
Dimension | 1400*600*2250 |
Packing size | 1270L×620W×1440H(mm) |
10 Good Reasons To Choose LABOAO New 50L Rotary Evaporator
-
The main body of the use of stainless steel + aluminum alloy.
-
Glass parts are all high borosilicate glass (GG-17).
-
Sealing system imported fluorine rubber and Teflon two-way combination of sealed.
-

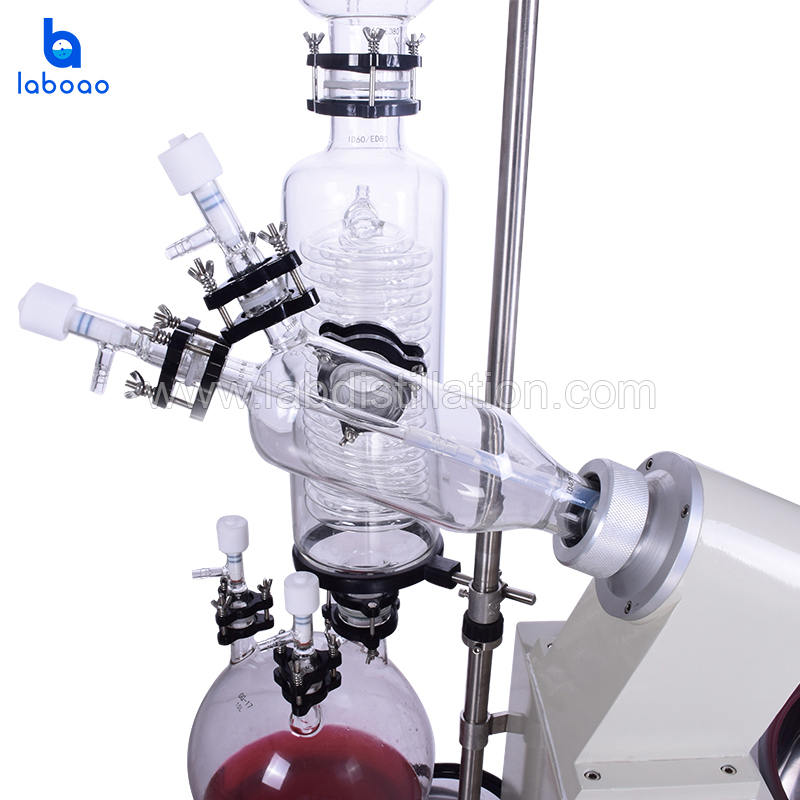

Vertical three-tier serpentine coil condenser, the main cold + cold dual condenser.
-
All valves with the latest one hand wheel valve.
-
Microcomputer power switch control,Vacuum pressure gauge.
-

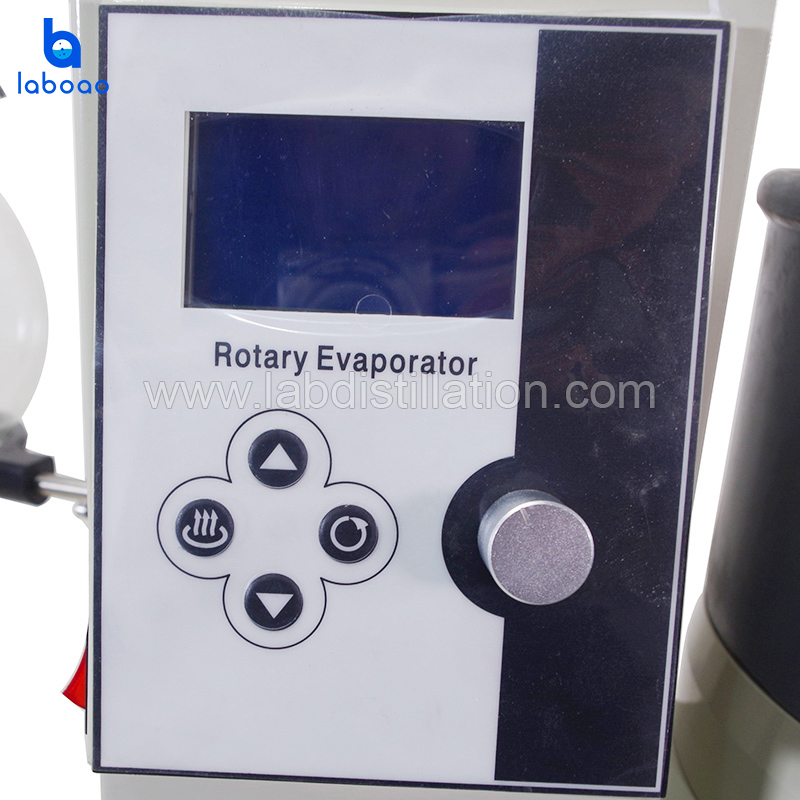

LCD full screen display, temperature, speed double digital display, bath pot thermostat control.
-
DC brushless motor, rotating stability, no spark, slow increase force.
-
Pot gallbladder with high quality 304 stainless steel.
-
Over-temperature safety protection and anti-dry function.
