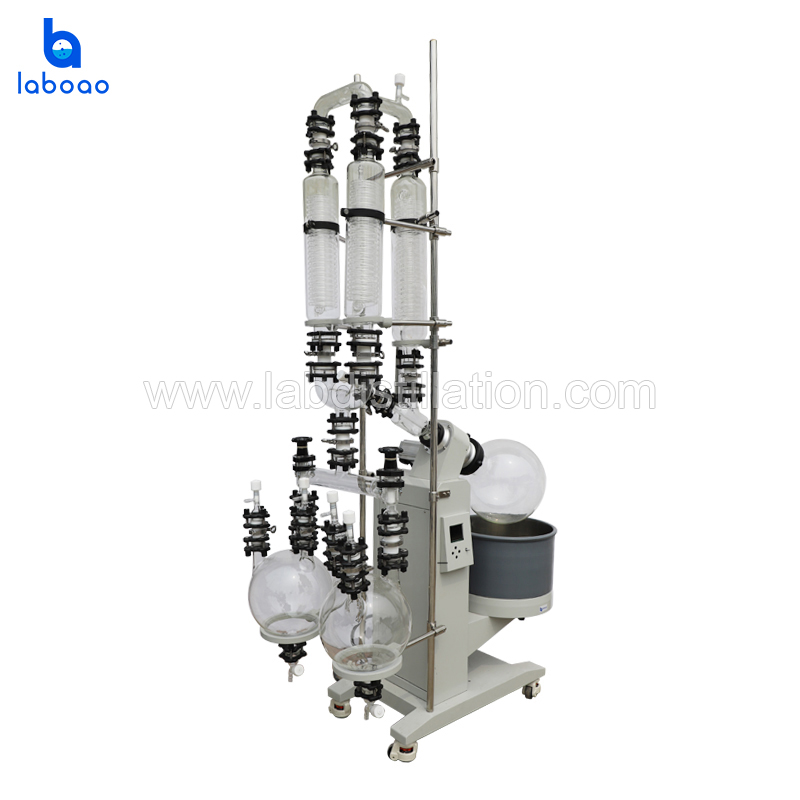

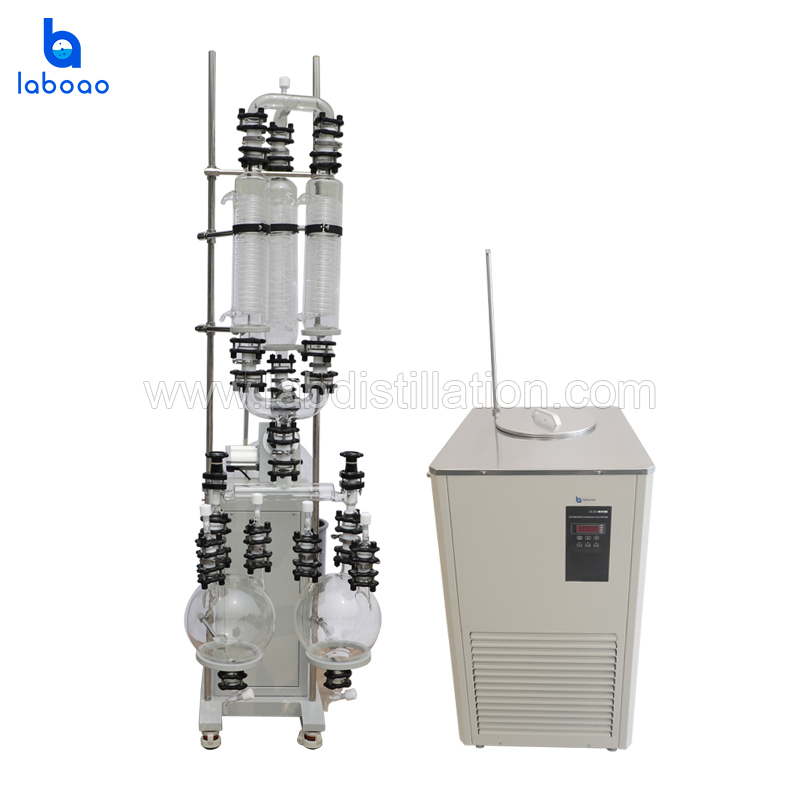

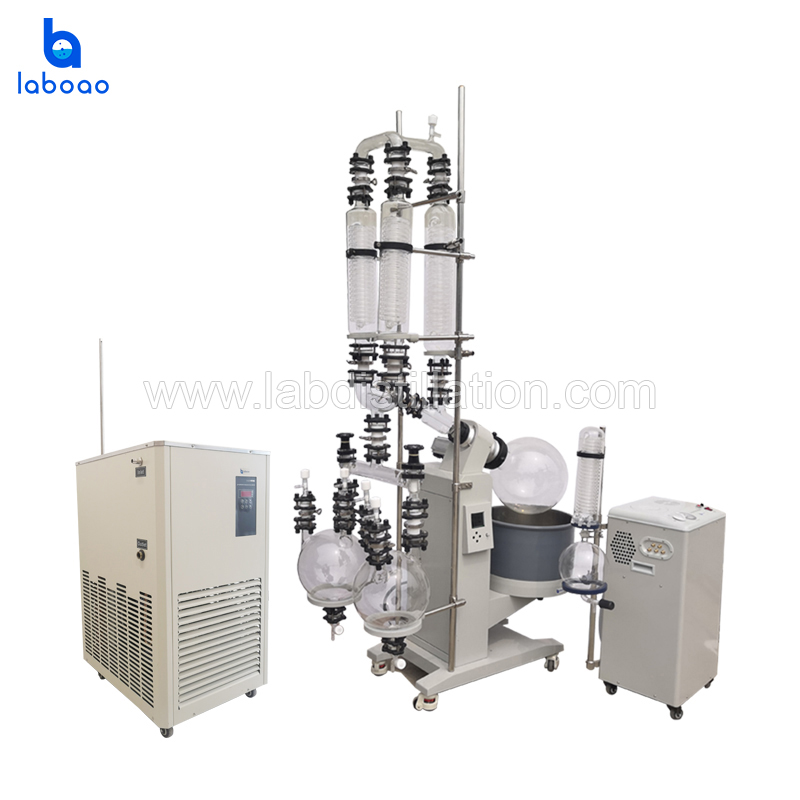

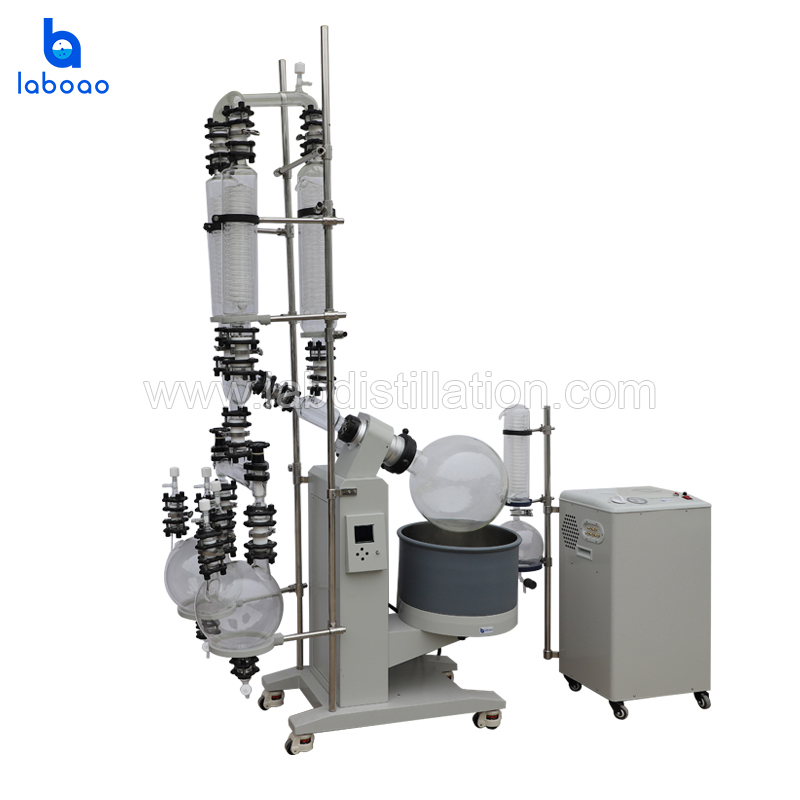

20L Rotary Evaporator With Double Condenser And Receiving Flasks
LRE-20C1
Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
Download
SPECIFICATIONS
NO. | ITEM | DETAILS |
1 | 20L rotary evaporator | Distillation rate>10 liter/hr Ethanol |
2 | Dual condenser | |
3 | Dual collection flask | 10L |
4 | Expansion Column | |
5 | Vacuum controller | Display vacuum |
Control vacuum | ||
1 mbar steps for setting | ||
6 | Heating water bath | For 20L flask |
Motorized lifting | ||
5-90 C water temp | ||
Measurement, Accuracy ±1 C | ||
3*2.1kw=6.3 kW | ||
Display temperature | ||
1 ºC steps for setting | ||
7 | Rotation | 5-150 rpm, Soft Start |
adjustable electronically | ||
Accuracy ±1 | ||
ab 0.3kw | ||
Display rotation speed rpm | ||
1 rpm steps for setting | ||
8 | Receiving Flask | 2 * 10 liter |
Disconnecting Valves at top/Bottom, PTFE valve | ||
#1 can be unloaded, while Distillation continue to #2 | ||
9 | Expansion Column | Exist Upstream to Condense |
With vapor temperature sensor | ||
Display Vapor Temperature | ||
1 ºC steps for setting | ||
10 | Condenser | 2 condensers, inparallel manner, Chilled, D2HP configuration |
Connection between glassware is Quick Clamps | ||
each condenser >0.6 m2 | ||
Vacuum is at bottom Condensers | ||
11 | Material | MOC: SS304/SS316 |
Glass: Borosilicate 3.3 | ||
In Contact with Product: PTFE | ||
12 | Other request | With timer function |
Leakage of complete System: <1mbar/min | ||
With Process Data Recording function, USB interface | ||
With air switch for emergency button | ||
Over-Pressure protection |
9 Good Reasons To Choose LABOAO 20L Rotary Evaporator With Double Condenser And Receiving Flasks
-
With vacuum controller, can control and display vacuum degree.
-
Double condensers and dual receiving flasks.
-
Can display vapor temperature.
-
With Expansion Column.
-
All PTFE material sealing, with Quick Clamps.
-
Time function, can setting time.
-
USB interface, can download history data.
-
Emergency button for protection.
-
LCD screen display.
