DESCRIPTION
1L Handwheel Lift Rotary Evaporator
LRE-201
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.
Download
SPECIFICATIONS
Model | LRE-201 |
Glass material | GG-17 |
Frame material | Stainless steel |
Pot shell Material | Spray anti-corrosion 270*270*195mm |
Pot bravery material | Stainless steel 250*140mm |
Plate size | 280*330mm |
Evaporator flask | 1L 24#standard port |
Collect flask | 1L 24#standard port |
Vacuum degree | 0.098Mpa |
Rotary power | 30W |
Rotary speed | 0-120rpm |
Heating power | 1.5KW |
Heating temperature range | 0-400℃ |
Temperature accuracy | ±1℃ |
Voltage | 220V/50Hz |
Lifting distance | 120mm |
Dimension(mm*mm*mm) | 700*440*885 |
Packing size(mm*mm*mm) | 600*460*460 0.12CBM |
Packing weight（KG） | 21 |
Speed mode | Electronic stepless adjustable speed |
Rotor speed display | digital display |
Temperature display | K type sensor with digital display |
Temperature control | Intelligent temperature control |
Sealing method | PTFE sealing |
Condenser | vertical condenser85*460mm 29Pumping head 29#standard port |
Lifting mode | Bath pot manual lifting |
Continuous feed | 19#standard port feeding valve |
Vacuum display | vacuum gauge |
Anti-Splash device | Transparent cover for heating bath |
Anti-explosion | Explosion-proof inverter, explosion-proof motor EX40W |
Frame material optional | Spray or spray PTFE |
8 Good Reasons To Choose LABOAO 1L Handwheel Lift Rotary Evaporator
-
The parts in contact with materials are all made of high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene materials.
-
The main frame is made of cold plate anti-corrosion spray + aluminum alloy material, and the pot is made of stainless steel. The sealing system adopts PTFE + fluorine rubber compound combination seal.
-

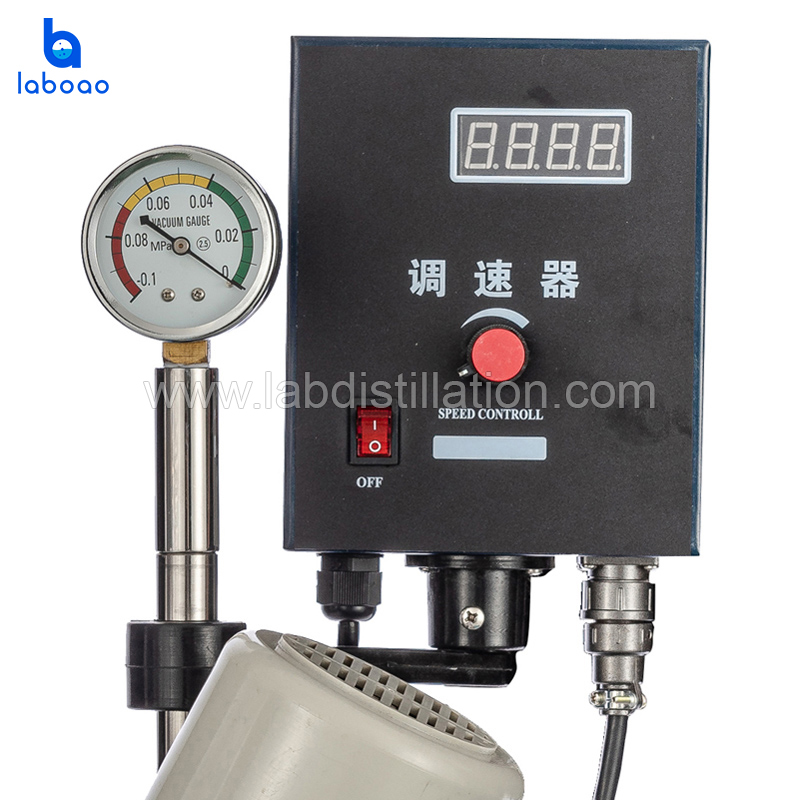

The vacuum pressure gauge displays real-time vacuum and the pointer displays.
-

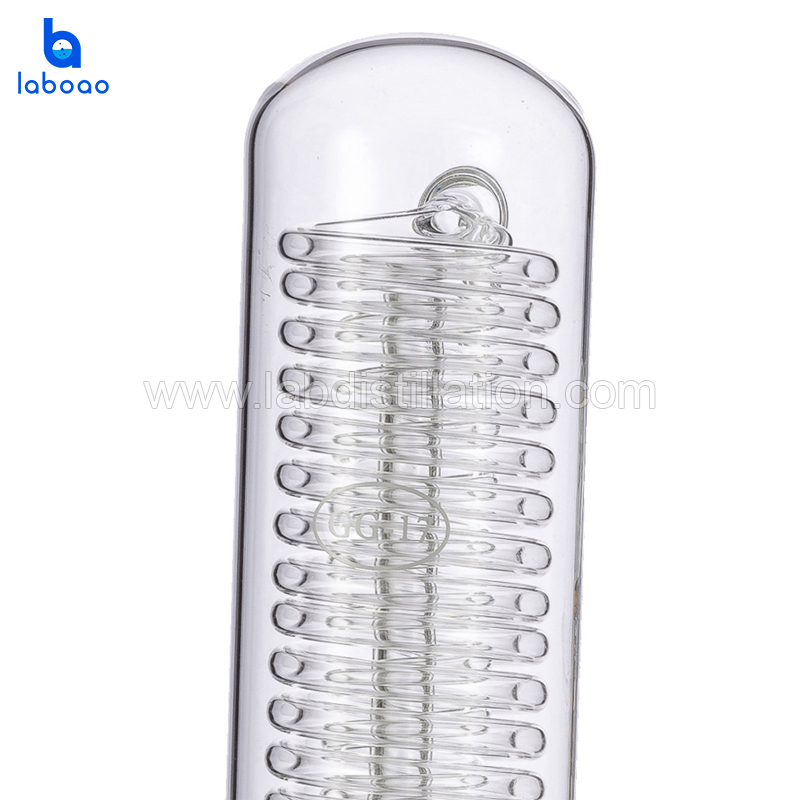

One-piece condenser, upright double-layer serpentine coil, the collection bottle equipped with a cap-type PTFE valve.
-
Rotating and heating power switch control, tilt button (ON-OFF).
-
Electronic stepless speed regulation, fine-tuning by twisting, digital display of speed.
-
Digital display of temperature of constant temperature bath, K-type sensor at the bottom of the pot + stainless steel probe.
-

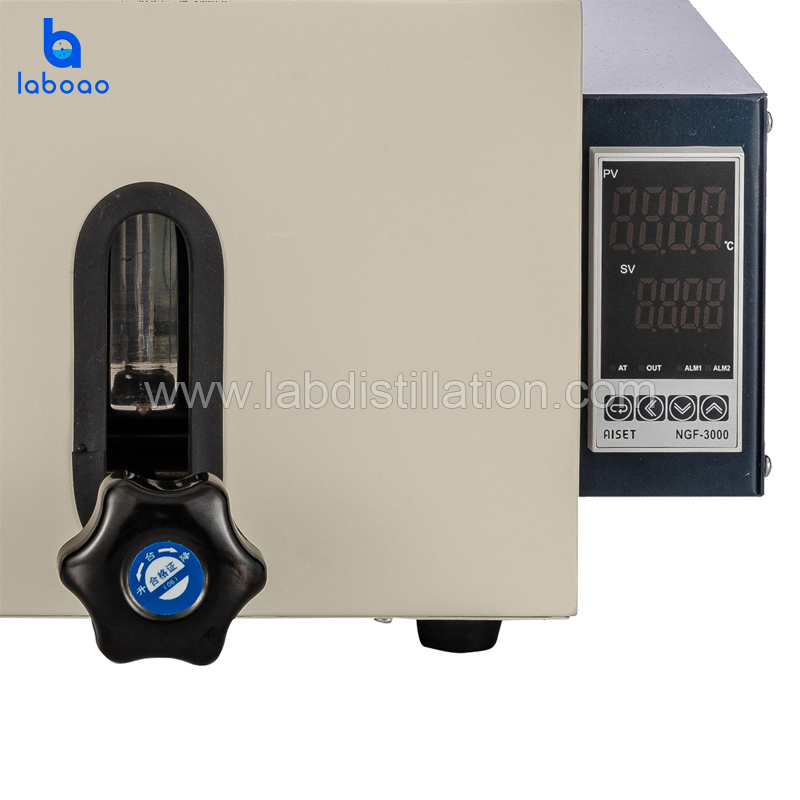

The handwheel of the heating bath rises and falls. Rotating, heating double fuse safety protection.
