DESCRIPTION
New 10L Rotary Evaporator
LRE-10
Rotary evaporator (or rotavap/rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
Download
SPECIFICATIONS
Model | LRE-10 |
Voltage | 220V/50HZ/60HZ |
Rotary motor | 60W |
Lifting motor | 40W |
Heating power | 4.5KW |
Vacuum degree | 0.098Mpa |

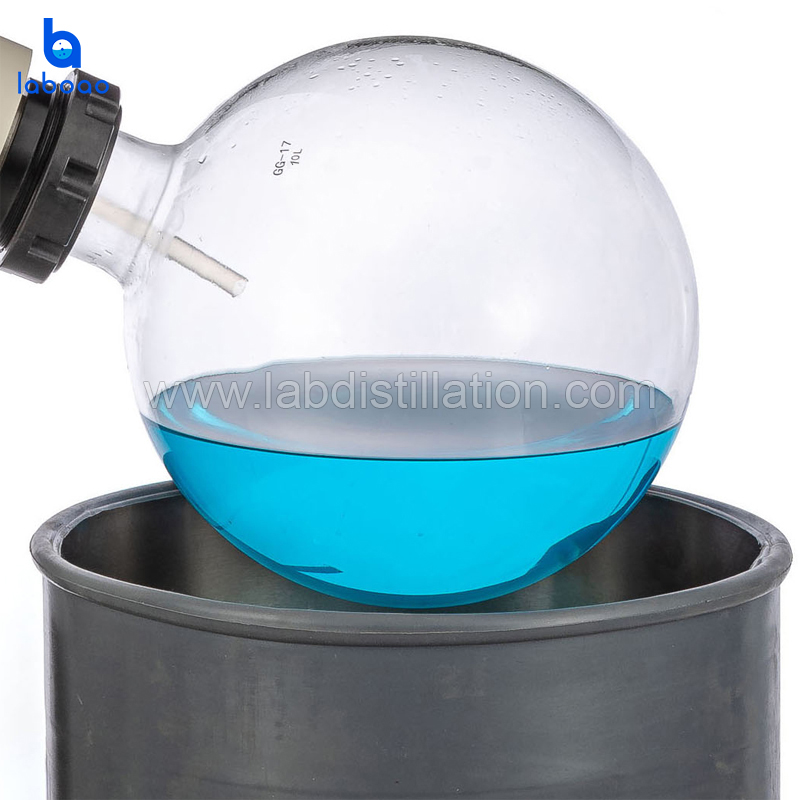

Rotary flask | 10L |
Φ280mm/Φ95mm | |
Flange mouth | |
Collection flask | 5L |
Φ230mm/Φ50mm | |
Flange mouth | |
Rotary speed | 0-120rpm/min |
Temp. controlling range | 0-400℃ |
Temp. accuracy | ±1℃ |
Glass bear temp. | -80-250℃ |
Oil bath lifting stroke | 0-180(mm) |
Condenser size | Main Φ130×640H(mm) ViceΦ130×410H(mm) |
Feeding valve | Φ35 Flange mouth |
Release valve | Φ35 Flange mouth*2 |
Discharge valve | Φ10mmm Glass side discharge port |
Bath size | Φ350×220H(mm) |
21L | |
Model | LRE-10 |
Voltage | 220V/50HZ/60HZ |
Packing weight | 95kg |
10 Good Reasons To Choose LABOAO New 10L Rotary Evaporator
-
The main body of the use of stainless steel + aluminum alloy.
-
Glass parts are all high borosilicate glass (GG-17).
-
Sealing system imported fluorine rubber and Teflon two-way combination of sealed.
-
Vertical three-tier serpentine coil condenser, the main cold + cold dual condenser.
-
All valves with the latest one hand wheel valve.
-
Microcomputer power switch control,Vacuum pressure gauge.
-
LCD full screen display, temperature, speed double digital display, bath pot thermostat control.
-
DC brushless motor, rotating stability, no spark, slow increase force.
-
Pot gallbladder with high quality 304 stainless steel.
-
Over-temperature safety protection and anti-dry function.
