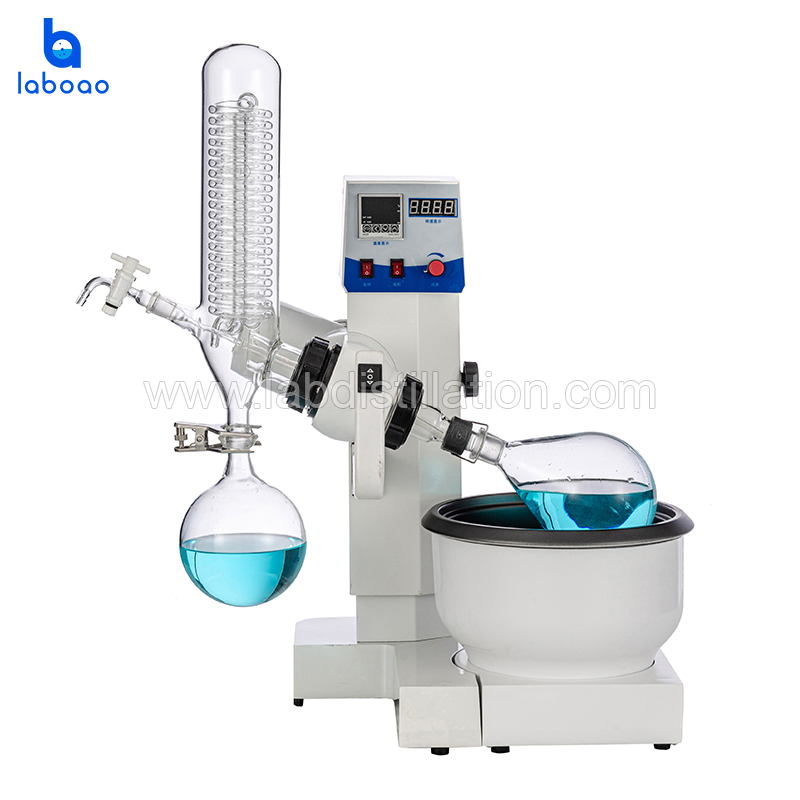

1L Rotary Evaporator With Dual Digital Display
LRE-2000B
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.
Download
DESCRIPTION
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.
Rotators consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-180 RPM range, it has reached the advanced level at home and abroad. 1. the move up and down lift system adopts motor revolved lifting structure. 2. the condenser adopted two kinds of optional structure , one is double line convection principle, the other one is a single line with interlayer water, ice, and dry ice container. Used in organic solvent evaporation. And the vertical condenser saves space. 3. the axis of rotation use high temperature high borosilicate glass, heat resistant and good sealing. Sealing parts use teflon + teflon two-way sealing, and the effect is good. 4. it is equipped with heating trough, and built-in resistance wire heater, heating temperature is from room temperature to 99 ℃. 5. the device is equipped with temperature indicator, intelligent temperature controlling, digital display, temperature control implemented by PT100 sensors. When the water temperature reaches primary temperature, the controller automatically cut off the heater power; When is lower than the water, temperature controller automatically turn on the heater power; To realize the tank water temperature be constant. 6. B type, E type is equipped with speed display, can accurately display rotation speed, E type is LCD screens. Model LRE-2000B Voltage/Frequency 220V/50HZ Whole power 1260W Rotary power 40W Lifting power 20W Heating power 1200W Vacuum degree 0.0098Mpa Rotary flask volume Eggplant shape 1L,Φ131mm/24# standard port Receiving flask volume Round shape 1L,Φ131mm/35# ball mill port Rotary speed 0-200rpm/min Temp.cotrolling range room temperature -99℃ Temp. accuracy ±1℃ Hosting lifting distance 120mm Condenser size Φ85*430H(mm) ,down with 35# ball mill port Condensation area 0.17㎡ Charging valve 19# standard plug valve, feed nozzle(pagoda-shape connectors),outer diameter 10mm Vacuum suction nozzle Pagoda-shape connectors, outer diameter 10mm Condensing coil in and out circuation nozzle Pagoda-shape connectors, outer diameter 12mm Pot bravery size Φ235*145H(mm) about 6.6L，3.5kg Overall dimensions (W*L*H) 630*400*(690-810)mm Net weight 20.5kg Packing dimensions 620*620*490mm, 0.19m³ Packing weight 25kgFEATURES
SPECIFICATIONS
6 Good Reasons To Choose LABOAO 1L Rotary Evaporator With Dual Digital Display
-

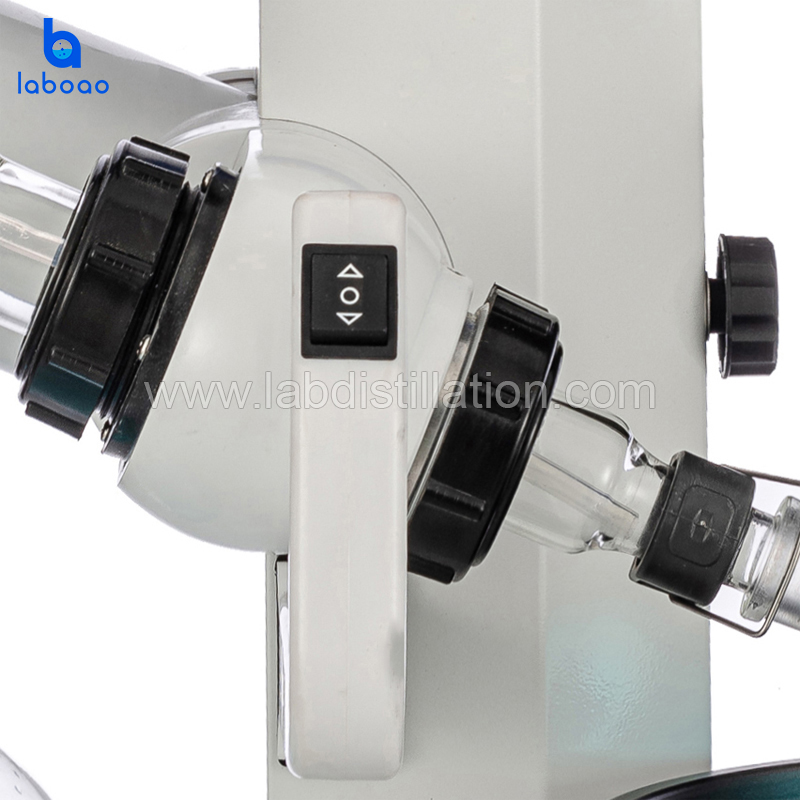

The move up and down lift system adopts motor revolved lifting structure.
-

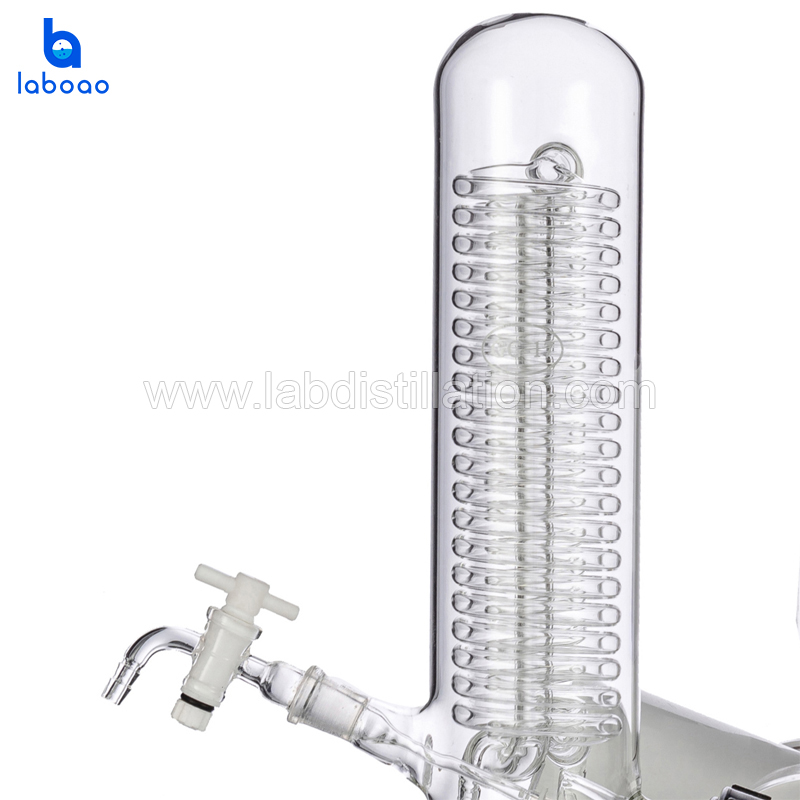

The condenser adopted two kinds of optional structure , the vertical condenser saves space.
-
The axis of rotation use high temperature high borosilicate glass. Sealing parts use teflon + teflon two-way sealing.
-

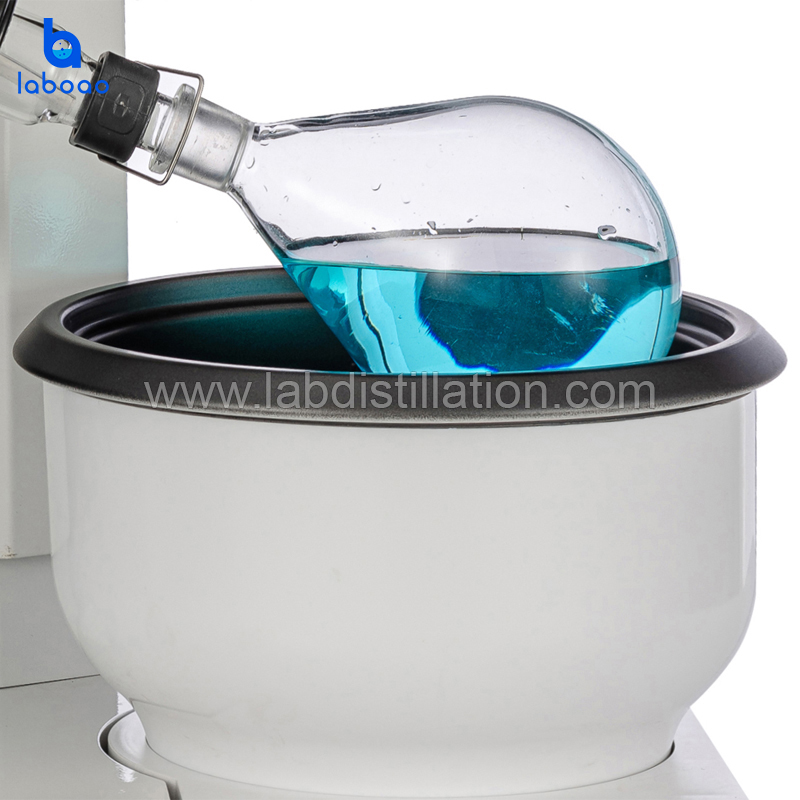

It is equipped with heating trough, and built-in resistance wire heater, heating temperature is from room temperature to 99 ℃.
-

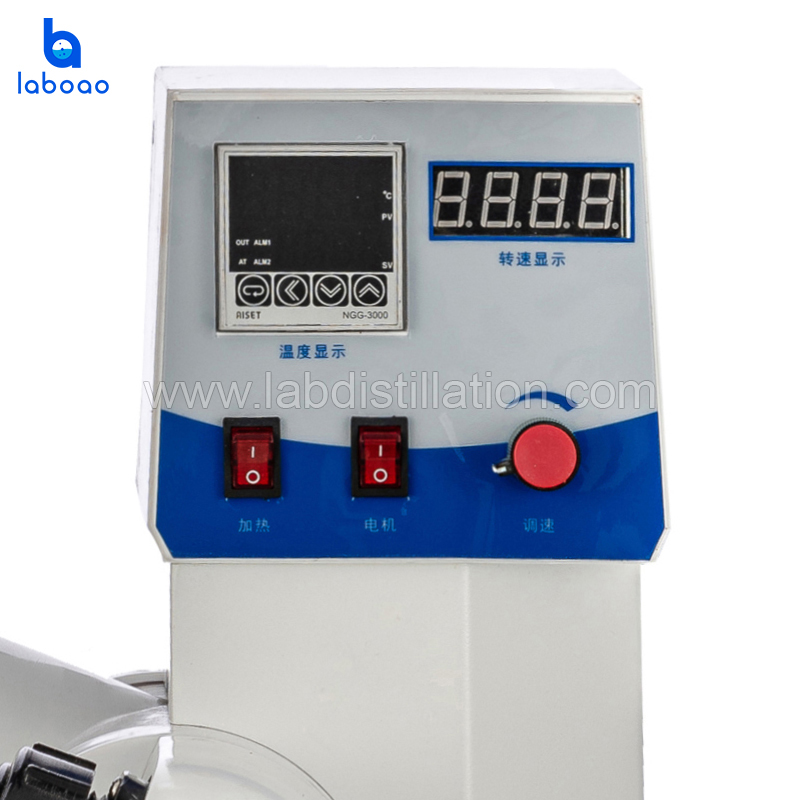

Equipped with temperature indicator, intelligent temperature controlling, digital display, temperature control implemented by PT100 sensors.
-
B type, E type is equipped with speed display, can accurately display rotation speed, E type is LCD screens.
