DESCRIPTION

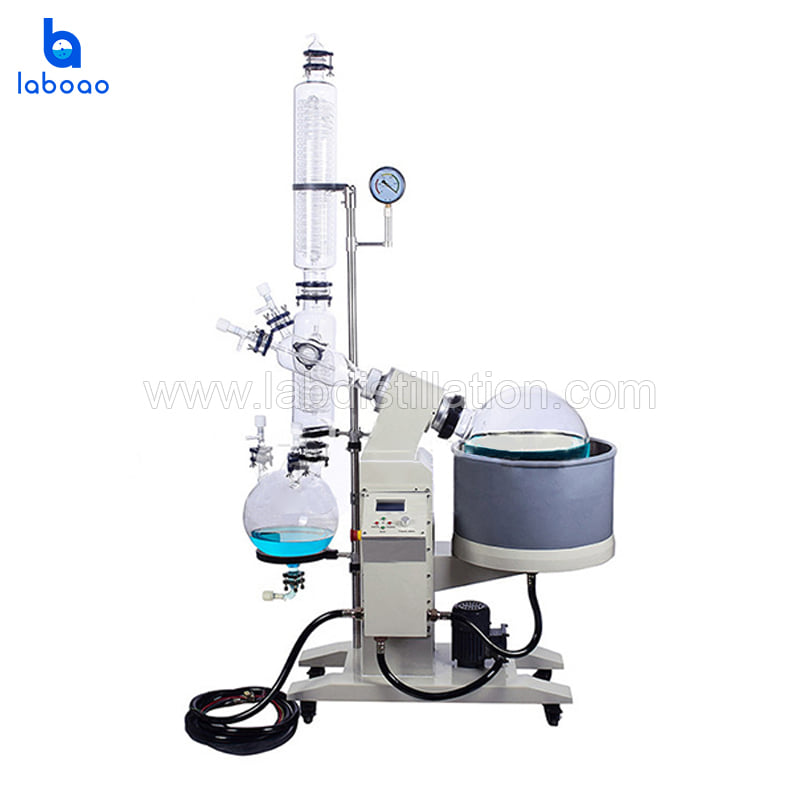

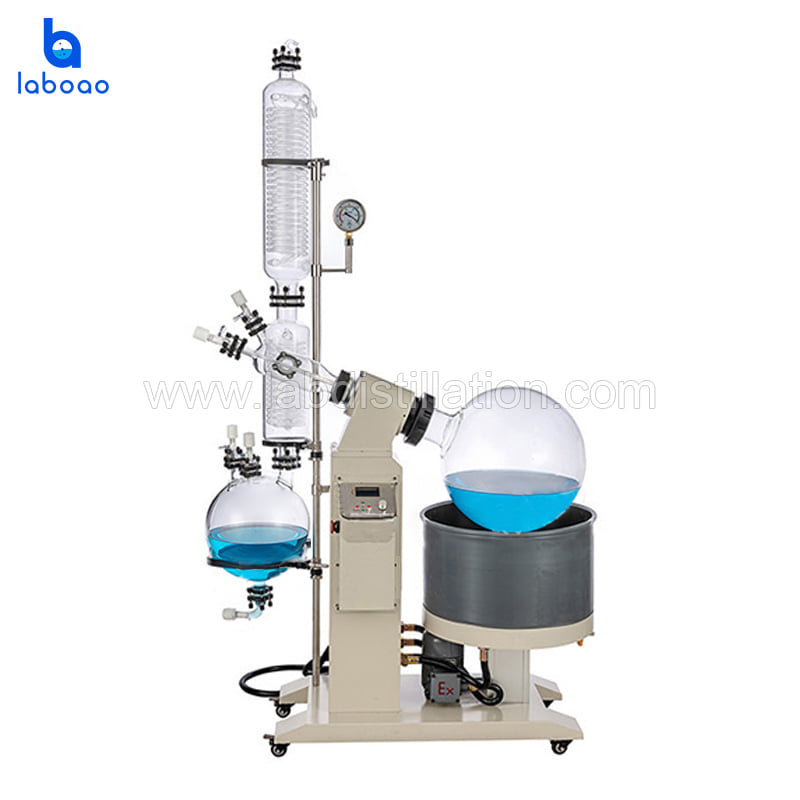

10L-50L Explosion Proof Auto Lifting Rotary Evaporator
LRE-1010EX/LRE-1020EX/LRE-1050EX
The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries.
Download
SPECIFICATIONS
Model | LRE-1010EX | LRE-1020EX | LRE-1050EX |
Voltage frequency | 220V/50Hz | 220V+380V | |
Total power | 3180W | 5120W | 6780W |
Rotating motor power | 60W | 100W | |
Lifting motor power | 120W | 180W | |
Heating power | 3000W | 5000W | 6500W |
Vacuum | 0.095Mpa | ||
Rotary flask capacity | 10L | 20L | 50L |
Collect flask capacity | 5L | 10L | 20L |
Rotating speed | 0~120rpm | ||
Temperature range | RT-180℃ | ||
Temperature control accuracy | ±1℃ | ||
Bath pot lifting stroke | 190mm | 215mm | |
Condenser size | Main condenser: φ120x620mm Sub-condenser: φ135x475mm | Main condenser: φ130x700mm Sub-condenser: φ160x530mm |
Main condenser: φ160x835mm Sub-condenser: φ160x530mm |
Condensation area | 0.51(0.33+0.18)㎡ | 0.94(0.46+0.48)㎡ | 1.44(0.95+0.49)㎡ |
Feed valve | 35# Flange port | ||
Multi-function port | 35# Flange port | ||
Release valve | 35# Flange port *2 | ||
Discharge valve | Outer diameter 20mm, 210mm from the bottom plate | Outer diameter 20mm, 300mm from the bottom plate | |
Vacuum pumping outlet | Outer diameterφ10mm | ||
Condensate tube into and out circulation port | Outer diameterφ16mm | ||
Bath size | φ350x220mm | φ450x260mm | φ550x320mm |
Overall size(W*D*H) | 1130x470x1940mm | 1210x610x2170mm | 1390x700x2300mm |
Machine net weight | 70KG | 84KG | 103KG |
Package Size | 980x520x1190mm | 1050x530x1210mm | 1230x630x1420mm |
Package weight | 107KG | 116KG | 148KG |
11 Good Reasons To Choose LABOAO 10L-50L Explosion Proof Auto Lifting Rotary Evaporator
-
All of the high boric silicon glass (expansion coefficient 3.3) and polytetrafluoride material
-
The main bracket uses cold plate anti-corrosion spray + aluminum alloy material
-
The sealing system uses the polytetrafluoroethylene + fluororubber
-
Vacuum pressure gauge,Integrated condenser
-
The piston feeding valve sleeve piratifores lengthen tubes
-
Constant temperature bath temperature digital display
-
Variable frequency speed, explosion-proof switch
-

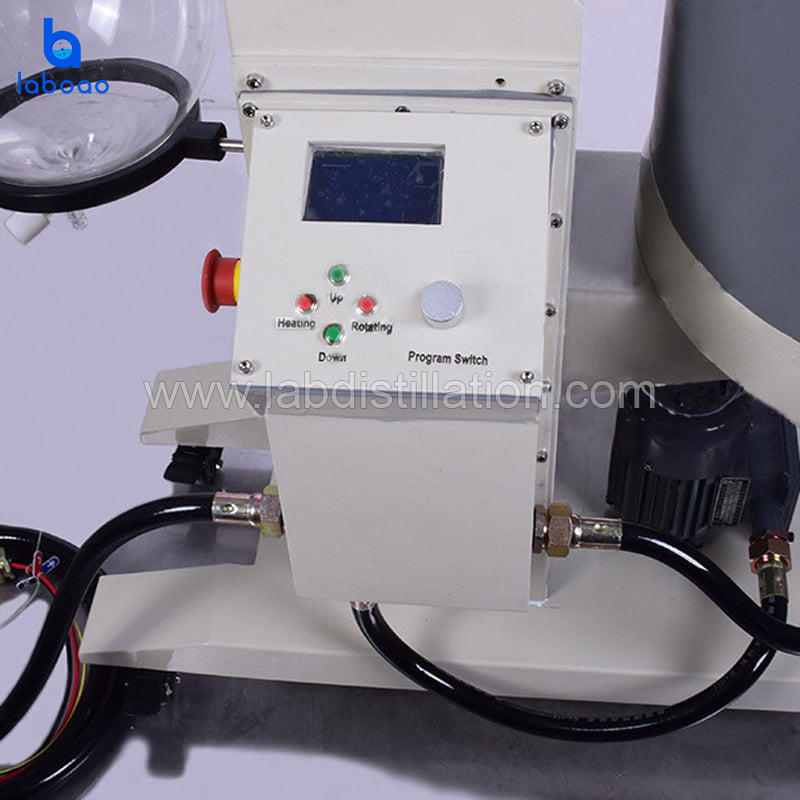

The large LCD screen controls rotation, heating and lifting at the same time
-
Rotating and heating double fuses have high protection performance
-
he collection bottle has a discharge port and is connected to a glass + PTFE discharge valve
-
Electric explosion-proof, variable frequency speed aluminum shell explosion-proof
