DESCRIPTION

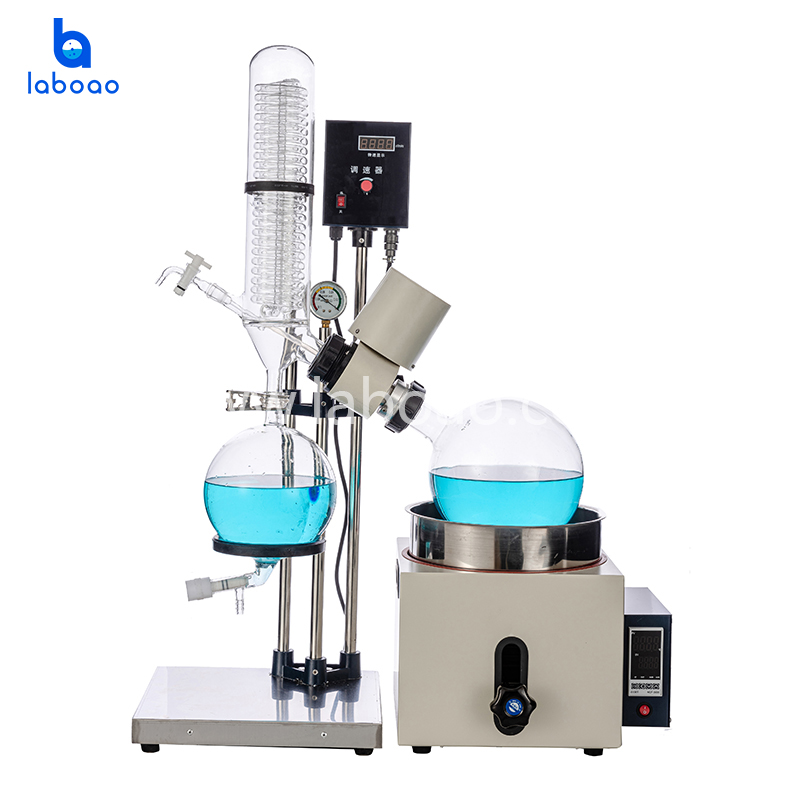

New 5L Rotary Evaporator
LRE-5

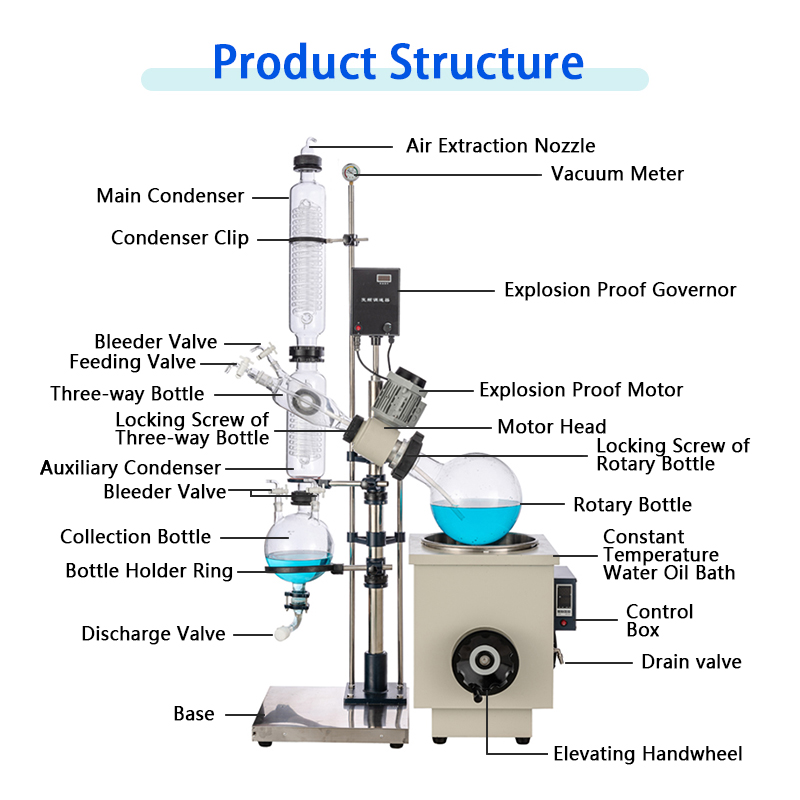

Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
Download
SPECIFICATIONS
Model | LRE-5 |
Voltage | 220V/50HZ/60HZ |
Rotary motor | 30W |
Lifting motor | 20W |
Heating power | 2KW |
Vacuum degree | 0.098Mpa |
Rotary flask | 5L |
Φ230mm/Φ80mm | |
Flange mouth | |
Collection flask | 3L |
Φ195mm/Φ50m | |
Flange mouth | |
Rotary speed | 0-120rpm/min |
Temp. controlling range | 0-400℃ |
Temp. accuracy | ±1℃ |
Glass bear temp. | -80-250℃ |
Oil bath lifting stroke Condenser size | 0-140(mm) |
Φ120×630H(mm) | |
Feeding valve Release valve | Φ35 Flange mouth |
Φ35 Flange mouth*2 | |
Discharge valve | Φ10mmm Glass side discharge port |
Bath size | Φ280×170H(mm) |
10L | |
Dimension | 920*490*1300(mm) |
Packing size | 790L×430W×1060H(mm) |
Packing weight | 80kg |
10 Good Reasons To Choose LABOAO New 5L Rotary Evaporator
-
The main body of the use of stainless steel + aluminum alloy.
-
Glass parts are all high borosilicate glass (GG-17).
-
Sealing system imported fluorine rubber and Teflon two-way combination of sealed.
-
Vertical three-tier serpentine coil condenser, the main cold + cold dual condenser.
-
All valves with the latest one hand wheel valve.
-
Microcomputer power switch control,Vacuum pressure gauge.
-
LCD full screen display, temperature, speed double digital display, bath pot thermostat control.
-
DC brushless motor, rotating stability, no spark, slow increase force.
-
Pot gallbladder with high quality 304 stainless steel.
-
Over-temperature safety protection and anti-dry function.
