DESCRIPTION
1L-5L Explosion Proof Manual Rotary Evaporator
LRE-201EX/LRE-301EX/LRE-501EX
The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries.
Download
SPECIFICATIONS
Model | LRE-201EX | LRE-301EX | LRE-501EX | |
Voltage frequency | 220V/50Hz | |||
Total power | 1040W | 2040W | ||
Rotating motor power | EX40W | |||
Heating power | 1000W | 2000W | ||
Vacuum | 0.098Mpa | |||
Rotary flask capacity | 1L | 3L | 5L | |
Collect flask capacity | 1L | 2L | 3L | |
Rotating speed | 0~120rpm | |||
Temperature range | RT-180℃ | |||
Temperature control accuracy | ±1℃ | |||
Bath pot lifting stroke | 200mm | |||
Condenser size | φ85x430mm | φ100x530mm | ||
Condensation area | 0.17㎡ | 0.26㎡ | ||
Feed valve | 19#standard port | |||
Vacuum pumping outlet | Outer diameterφ10mm | |||
Condensate tube into and out circulation port | Outer diameterφ12mm | |||
Bath size | φ245x140mm | φ265x160mm | φ280x170mm | |
Overall size(W*D*H) | 750x360x1060mm | 790x360x1090mm | ||
Machine net weight | 32KG | 33KG | 34KG | |
Package Size | 990x620x470mm | 1090x690x490mm | ||
Package weight | 49KG | 50KG | 51KG | |

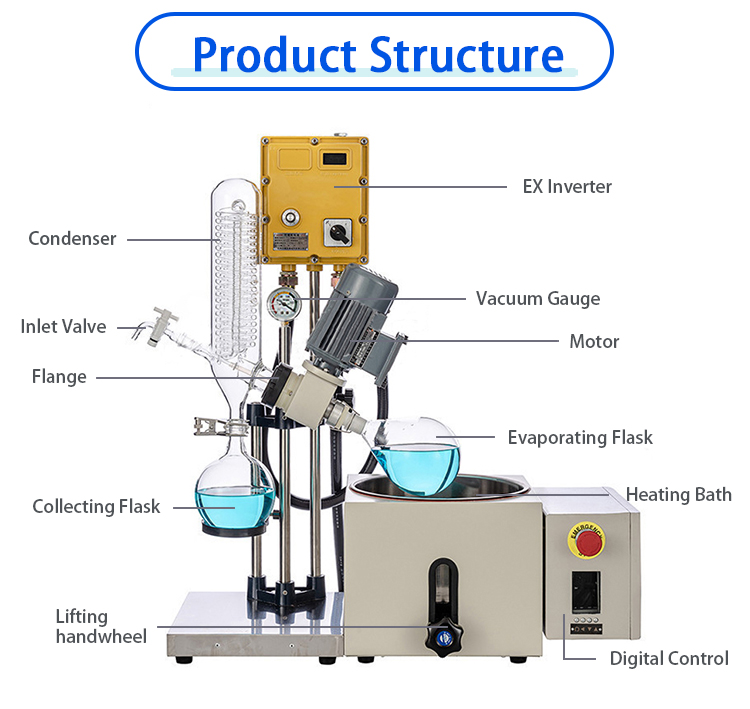

7 Good Reasons To Choose LABOAO 1L-5L Explosion Proof Manual Rotary Evaporator
-
All of the high boric silicon glass (expansion coefficient 3.3) and polytetrafluoride material
-
The main bracket uses cold plate anti-corrosion spray + aluminum alloy material
-
The sealing system uses the polytetrafluoroethylene + fluororubber
-
Vacuum pressure gauge,Integrated condenser
-
The piston feeding valve sleeve piratifores lengthen tubes
-
Constant temperature bath temperature digital display
-
Variable frequency speed, explosion-proof switch
