DESCRIPTION
10L Rotary Evaporator
LRE-1002
Rotary evaporator (or rotavap/rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
Download
SPECIFICATIONS
Specification | Model | LRE-1002 |
Glass material | GG-17 | |
Frame material | Stainless steel | |
Pot shell Material | Spray anti-corrosion 490*430*540mm | |
Pot bravery material | Stainless steel 350*220mm | |
Plate size | 474*474mm | |
Evaporator flask | 10L ￠95Flange port | |

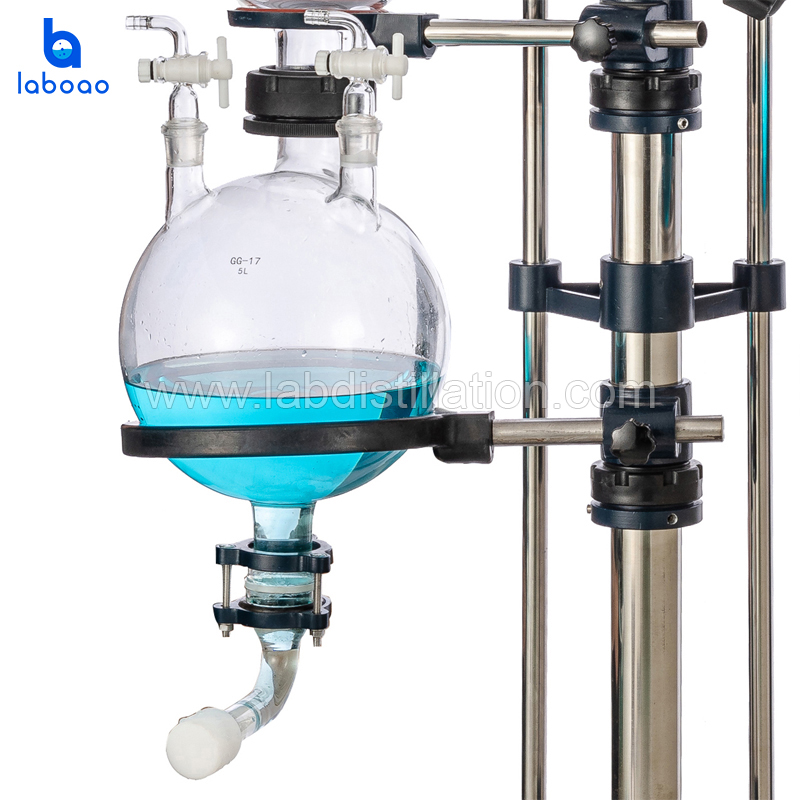

Collect flask | 5L ￠50Flange port | |
Vacuum degree | 0.098Mpa | |
Rotary power | 120W | |
Rotary speed | 0-110rpm | |
Heating power | 3KW 220V/50Hz | |
Heating temp.range | 0-400℃ | |
Temp. accuracy | ±1℃ | |
Lifting disctance | 180mm | |
Dimension(mm*mm*mm) | 970*480*1950mm | |
Packing size(mm*mm*mm) | 1340*350*450 1340*590*700 0.76CBM | |
Packing weight（KG） | (38+68)106 | |
Configuration list | Speed mode | Electronic stepless adjustable speed |
Rotor speed display | digital display | |
Temp. display | K type sensor with digital display | |
Temp. control | Intelligent temp.control | |
Sealing method | PTFE sealing | |

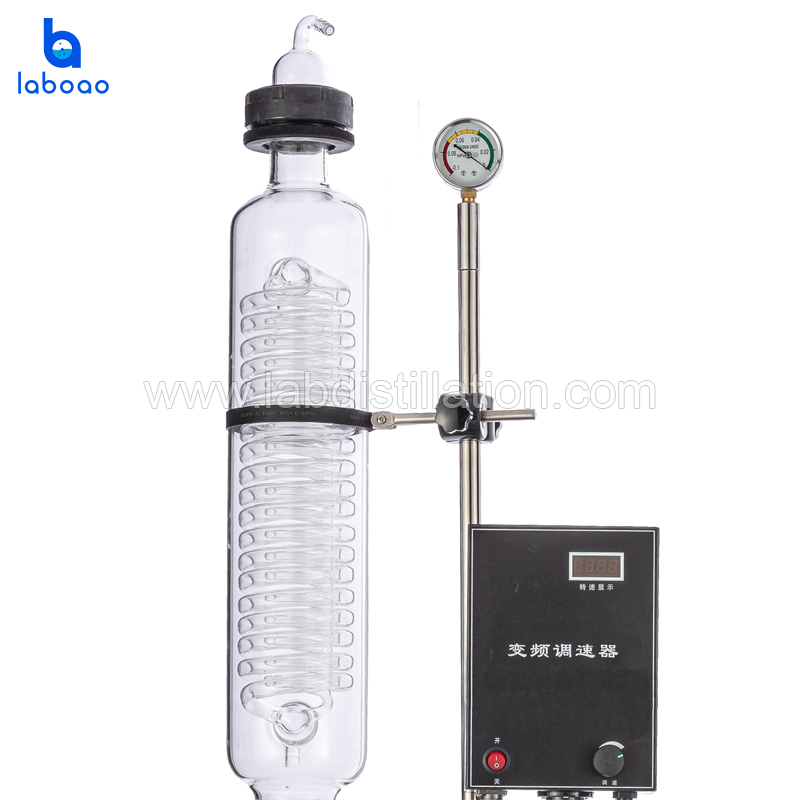

Condenser | Vertical efficiency three reflux condenser,Main condenser120*640，Secondary condenser135*470 | |
Continuous | non-return valve control | |
Lifting mode | Bath Manual lifting | |
Temp. | 19#Standard port | |
Continuous feed | 34#Standard port feeding valve | |
Discharg valve | PTFE discharge valve，￠50Flange port | |
Vacuum display | Vacuum gauge | |
Optional | Lifting mode | Automatic electric lifting |
Collecting device | Double collect bottle | |
Anti-explosion | Explosion-proof motor&Explosion-proof inverterEX120W | |
Frame material optional | Spray or spray PTFE | |
Bath material | Fully304Stainless steel |
6 Good Reasons To Choose LABOAO 10L Rotary Evaporator
-
Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree.
-
Uses the main and secondary efficient double condenser.
-
Rotating bottle with nut connection, it is easy to load and unload.
-
There is tap valve under the collection bottle mouth, recycled solvent is very fast.
-
Water bath with digital and continuous temperature controlling.
-
The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass.
