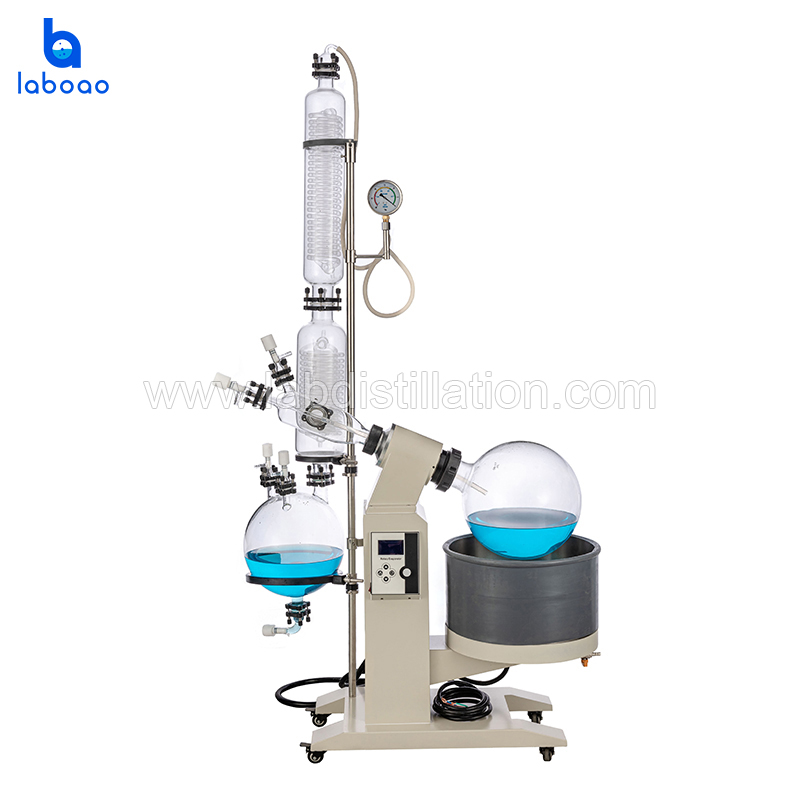

New 20L Rotary Evaporator
LRE-20
Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
Download
DESCRIPTION
Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.

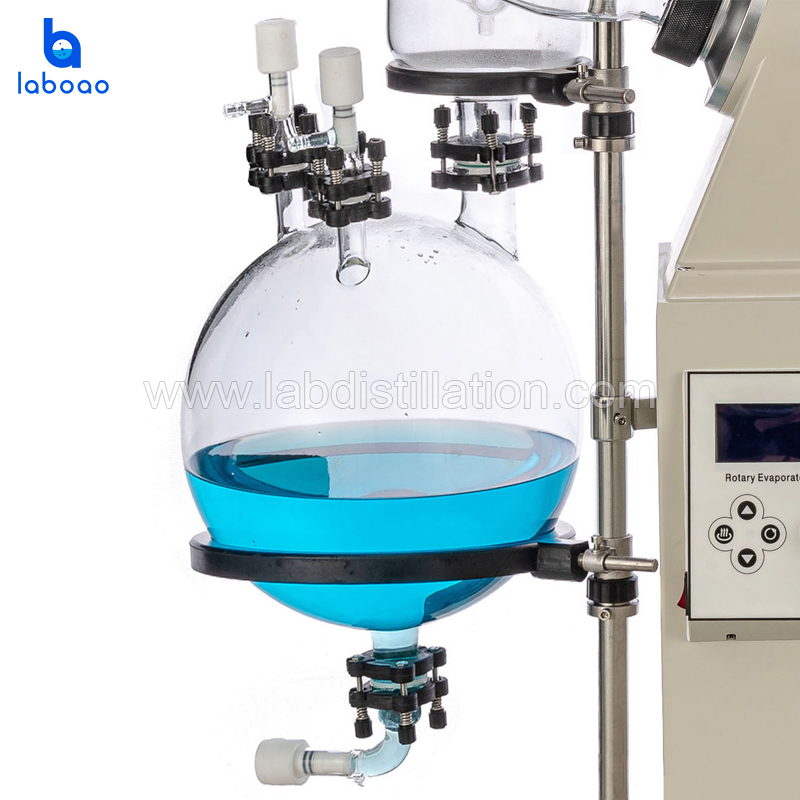

1. The main body of the use of stainless steel + aluminum alloy, reasonable structure, materials stress. 2. Glass parts are all high borosilicate glass (GG-17), high temperature, anti-corrosion. 3. Sealing system imported fluorine rubber and Teflon two-way combination of sealed, corrosion-resistant long life, to maintain high vacuum. 4. Vacuum pressure gauge shows real-time vacuum, oily table with anti-vibration characteristics. 5. Vertical three-tier serpentine coil condenser, the main cold + cold dual condenser to ensure high recovery rate. 6. Can be continuous feeding for customers to use, valve-type feeding valve sets of tetrafluoroethylene tube. 7. Collection of bottles with a discharge material to facilitate the evaporation of the collection of extract, discharge. 8. Check valve control, continuous discharge, the machine in the working state, can be vacuum switch. 9. All valves with the latest one hand wheel valve, good sealing, the operation is more simple and convenient 10. Microcomputer power switch control. 11. LCD full screen display, temperature, speed double digital display, bath pot thermostat control, PT100 sensor fast and accurate delivery temperature. 12. DC brushless motor, rotating stability, no spark, slow increase force. 13. Bath electric lift, lift part of the use of slowdown power motor, lifting process more smoothly. 14. pot gallbladder with high quality 304 stainless steel, corrosion and durable, pot gallbladder outer layer of silicone layer, high temperature use more secure. 15. Over-temperature safety protection function, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically turn off the power. 16. anti-dry function, heating pot water level below the heating pipe, the machine will automatically power off. 17. If the machine is suddenly powered off and the power is turned on again, the machine will automatically stop heating. Model LRE-20 Voltage/Frequency 220V/50HZ Whole power 5100W Rotary power 60W 1/5 Lifting power 40W 1/12.5 Heating power 5000W Vacuum degree 0.0095Mpa Rotary flask volume 20L,Φ355mm/Φ95 Flange port Receiving flask volume 10L,Φ280mm/ upper with Φ60 *Φ35 flange port*2*down with Φ50 flange port Rotary speed 0-120rpm/min Temp.cotrolling range room temperature -180℃ Temp. accuracy ±1℃ Flask lifting distance 150mm Condenser size The main condensor Φ100*700H(mm) upper with Φ60 flange port * down with Φ80 flange port Condensation area 0.94(0.46+0.48)㎡ Air guide bottle Left with Φ35 flange，upper with Φ35flange，side with Φ60 flange，right with Φ60 flange Charging valve Φ35 flange，glass+PTFE valve，feed nozzle (pagoda-shape connectors) outer diameter 12mm Multi-function port Φ35 flange，glass+PTFE valve, glass nozzle (pagoda-shape connectors) outer diameter 12mm Vacuum suction nozzle Φ60 flange glass exhaustor, suction nozzle (pagoda-shape connectors), outer diameter 10mm Condensing coil in and out circuation nozzle Pagoda-shape connectors, outer diameter 16mm Vent valve Φ35 flange port*2, glass+PTFE valve, vent nozzle (pagoda-shape connectors), outer diameter 12mm Baiting valve Φ50 flange port, side discharging nozzle(pagoda-shape connectors), outer diameter 20mm, 210mm from the floor Pot bravery size Φ450*560H(mm) about 41L Overall dimensions (W*L*H) 1210*610*2170mm Net weight 78kg Packing dimensions 1050*530*1210 ,0.68m³ Packing weight 110kgFEATURES
SPECIFICATIONS
The assisted condensor Φ160*530H(mm) upper with Φ80 flange port* down with Φ60 flange port*side with Φ60 flange port
10 Good Reasons To Choose LABOAO New 20L Rotary Evaporator
-
The main body of the use of stainless steel + aluminum alloy.
-

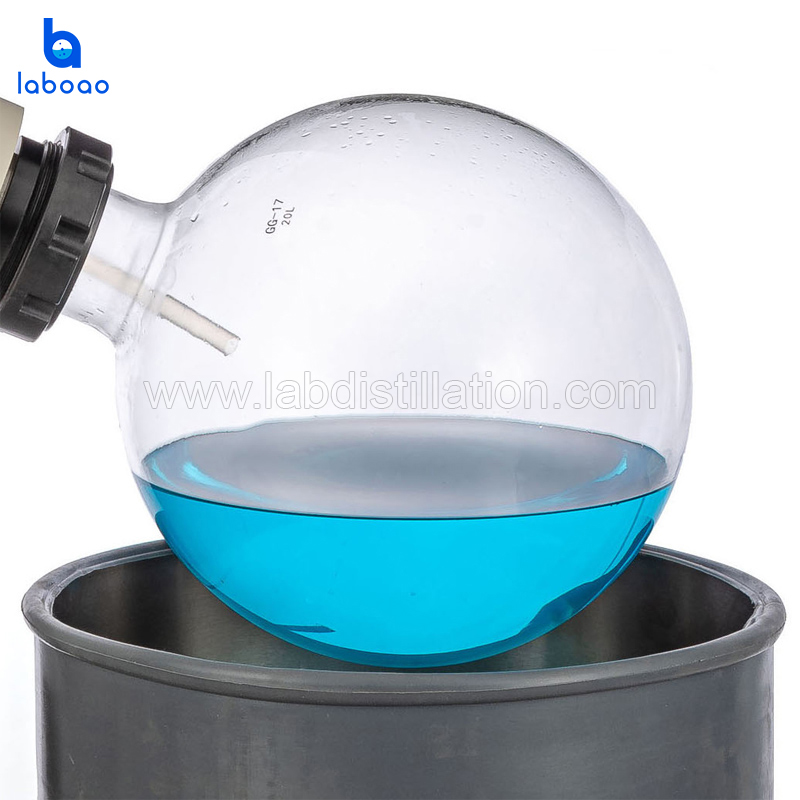

Glass parts are all high borosilicate glass (GG-17).
-
Sealing system imported fluorine rubber and Teflon two-way combination of sealed.
-

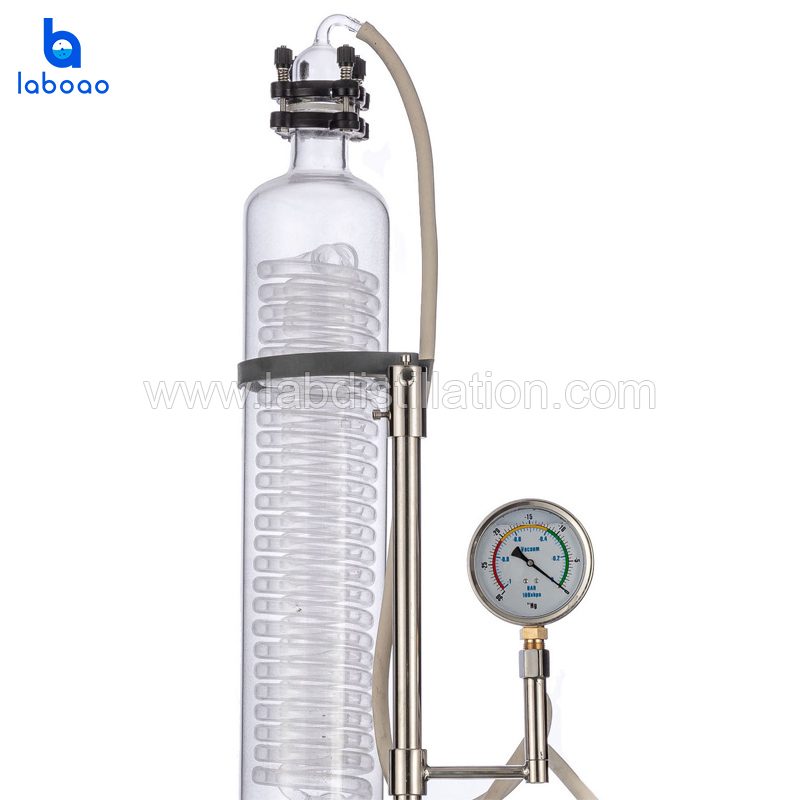

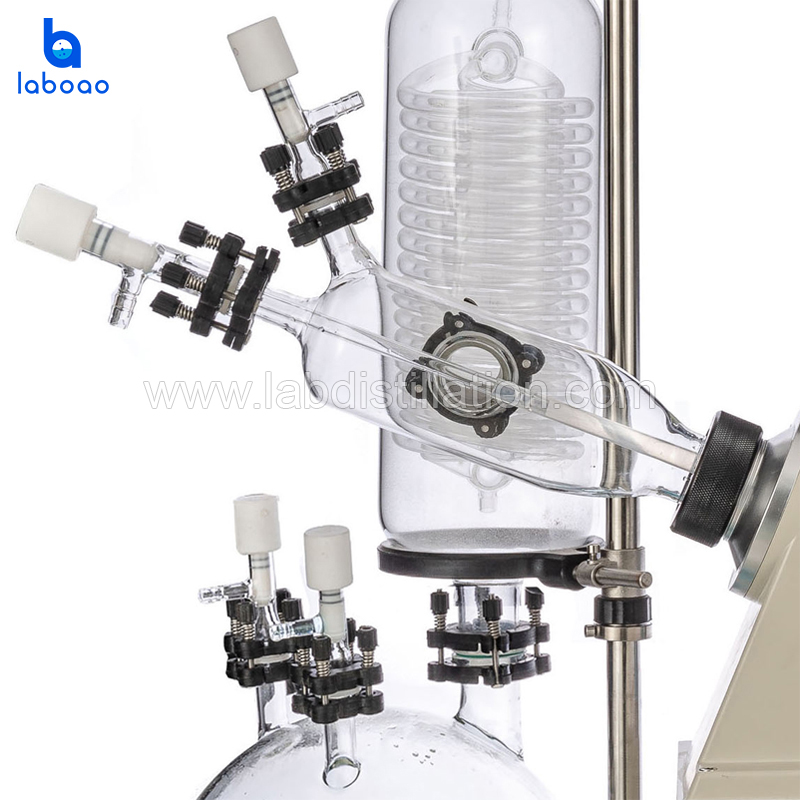

Vertical three-tier serpentine coil condenser, the main cold + cold dual condenser.
-
All valves with the latest one hand wheel valve.
-
Microcomputer power switch control,Vacuum pressure gauge.
-

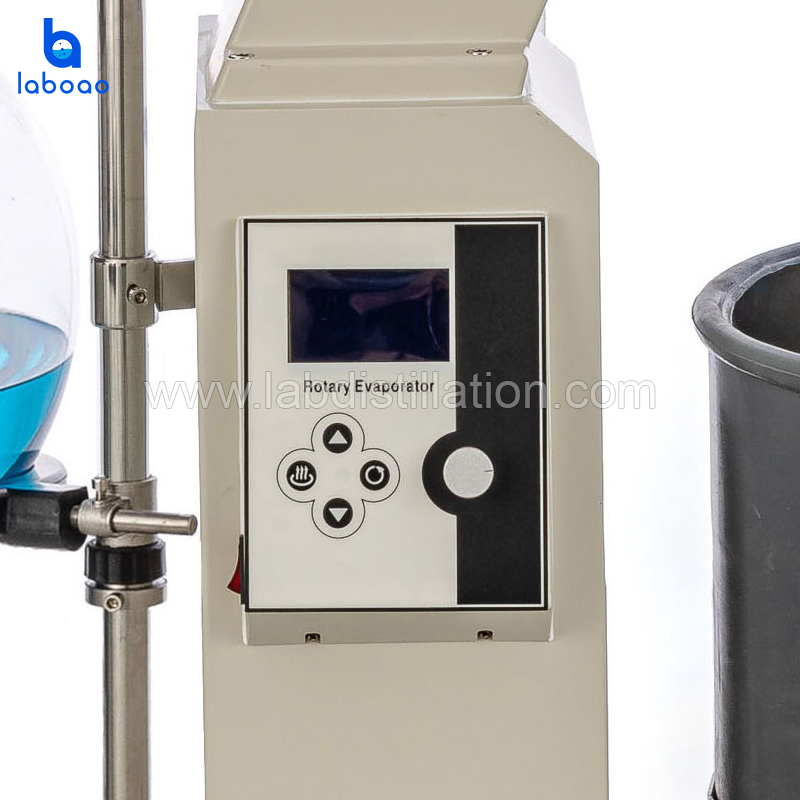

LCD full screen display, temperature, speed double digital display, bath pot thermostat control.
-
DC brushless motor, rotating stability, no spark, slow increase force.
-
Pot gallbladder with high quality 304 stainless steel.
-
Over-temperature safety protection and anti-dry function.
