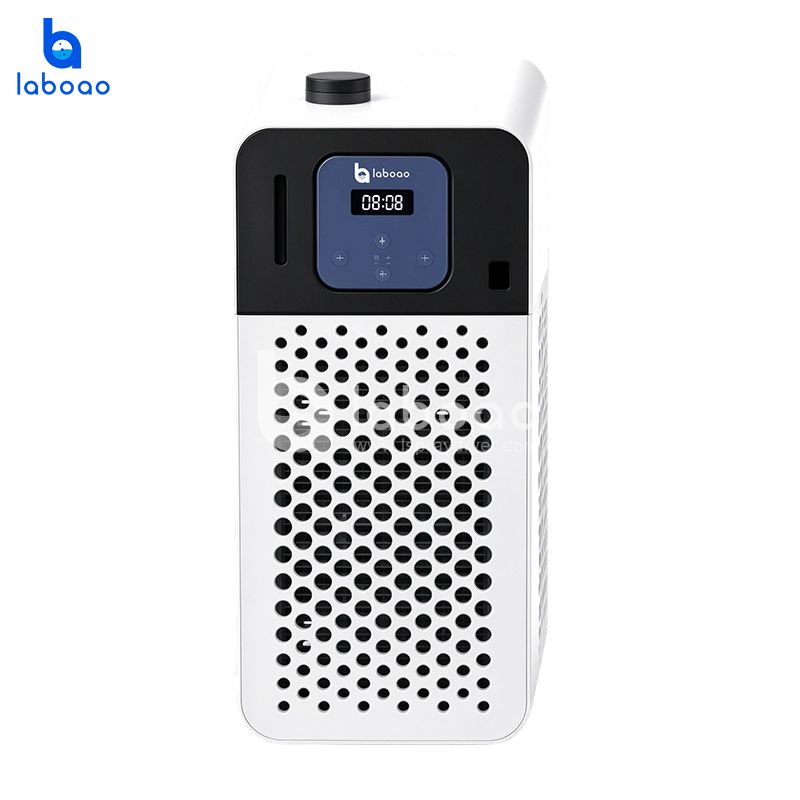

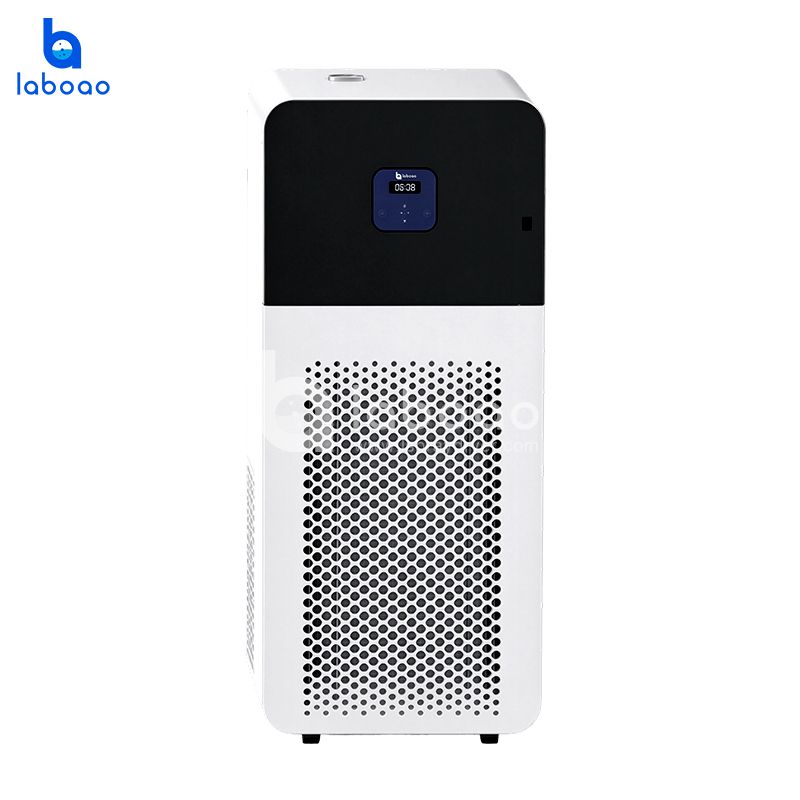

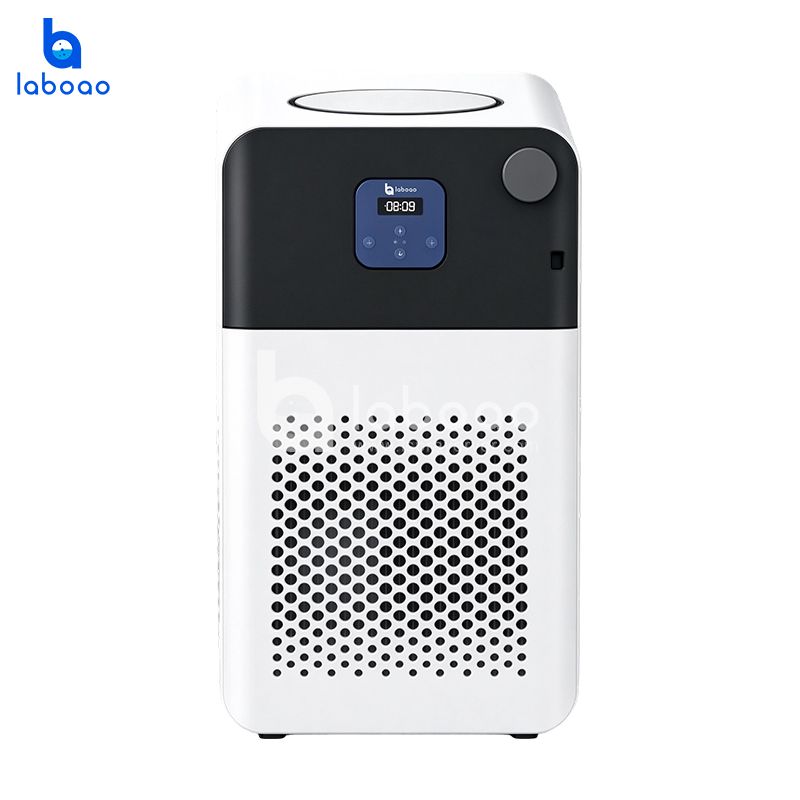

The low-temperature cooling circulator (or thermostat) is an efficient temperature control device that regulates temperature through pumping low-temperature cooling fluid. It is suitable for laboratories, pharmaceuticals, chemicals, and semiconductor industries where stable low-temperature environments are required.
1.Easy Operation: LED display, simple menu, one-touch start.
2.Compact Design: Small size, suitable for desktops and fume hoods.
3.Precise Temperature Control: Built-in sensor and PID technology ensure high temperature stability.
4.Convenient Handling: Top liquid filling, rear draining, clear liquid level, with overflow protection.
5.Rapid Response: Quickly adjusts to load and temperature changes, with strong adaptability.
6.Eco-Friendly Refrigerant: Non-toxic, non-polluting, with excellent cooling performance.
7.Energy Efficiency: Proportional cooling adjustment for low-energy operation.
8.Stable Circulation System: Powerful pump ensures uniform cooling.
9.Extended Lifespan: Low-speed operation reduces wear.
10.Low Noise: Suitable for quiet environments.
11.Easy Cleaning: Removable panel for easy filter cleaning and convenient drainage.
12.High-Quality Insulation: Reduces heat exchange, ensuring temperature stability.
13.Rapid Heat Dissipation: Prevents overheating, maintaining stable equipment operation.
Model | LCP-5 | LCP-17 | LCP-20 |
Temperature range [°C] | -20-RT | ||
Temperature control accuracy [°C] | ±0.3 | ±0.5 | |
Temperature display | LED | ||
Display accuracy [°C] | 0.1 | ||
Temperature control method | Intelligent PID | ||
Control temperature sensor | PT 100 | ||
Cooling capacity @20°C [W] | 700 | 2400 | 3200 |
Cryogen | R404a | ||
Maximum pump pressure [bar] | 0.3 | 1.5 | |
Maximum flow rate of pump [L/min] | 22 | ||
Tank capacity [L] | 4.5 | 17 | 20 |
Instrument fixing method | Floor standing | ||
Allow continuous operation [%] | 100 | ||
Allow ambient temperature [°C] | 5-40 | ||
Allow relative humidity [%] | 80 | ||
Internal diameter of external pipe mouth [mm] | 8 | 10 | |
Overall Dimensions (WxDxH) [mm] | 230×490×450 | 400×560×705 | 450×600×1100 |
Power Supply [VAC/Hz] | 100-120V/200-240V，50/60Hz | ||
Power [W] | 700 Max. | 1000 Max. | 1500 Max. |
Electric current [A] | 3.5 Max. | 5 Max. | 7.5 Max. |
