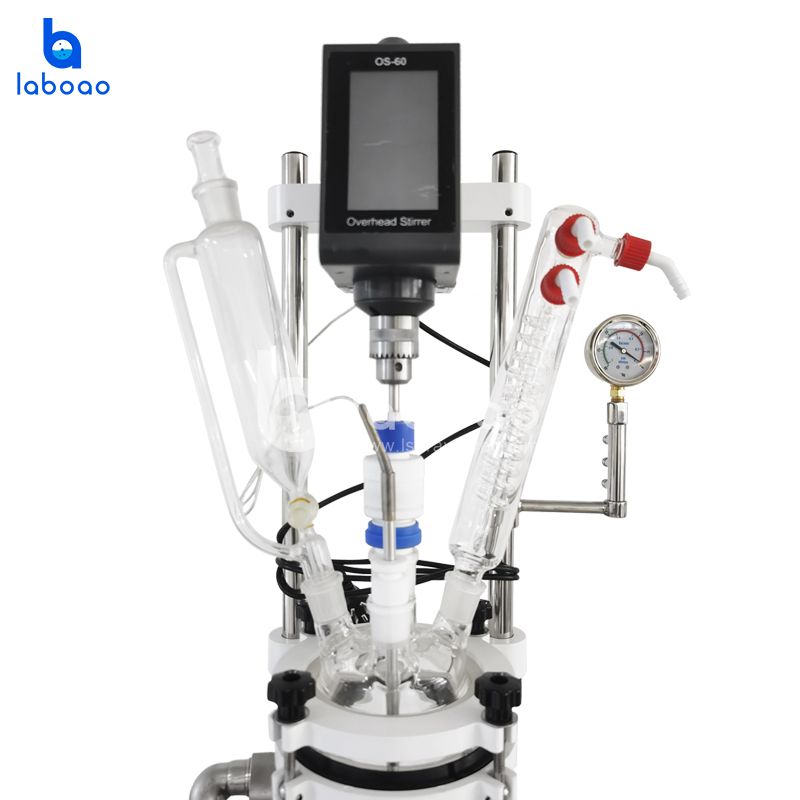

Touch Screen Small Jacketed Glass Reactor For Lab

LGR-1LN/LGR-3LN/LGR-5LN
This small glass reactor has touch screen control and is very suitable for laboratory desktop chemical reactions or placed in a fume hood for experimental operations. The lifting height and reactor body size can be customized.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

VIDEO

DESCRIPTION

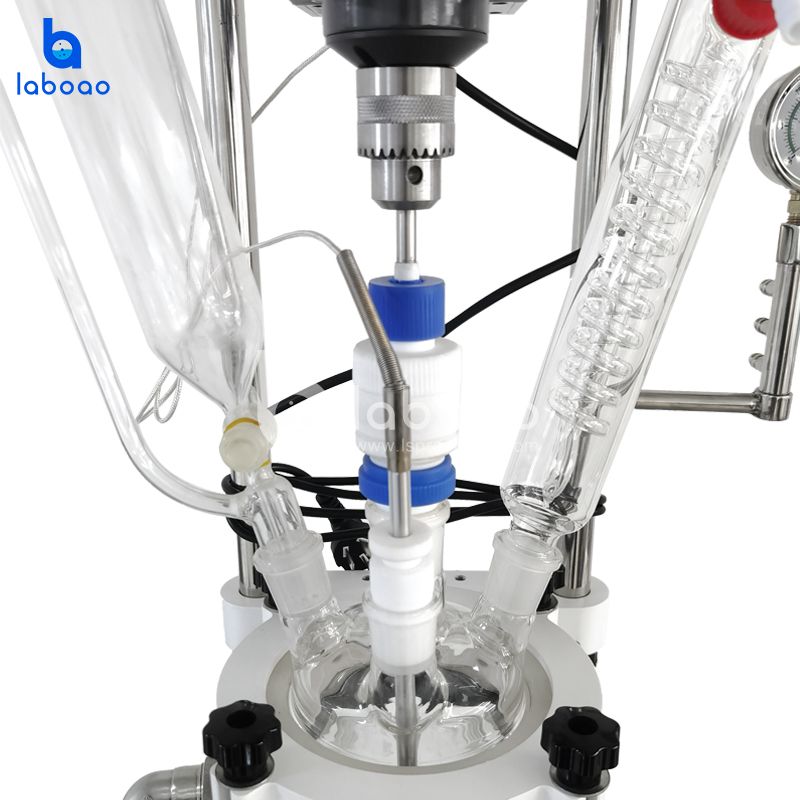

This machine has an electric constant-speed stirring system, condensation, and dripping systems. The interlayer of the kettle body requires external heating or refrigeration circulation equipment. While stirring the materials, the circulating hot solution or cooling liquid is injected through the interlayer to heat or cool the materials in the kettle at a constant temperature. When the material undergoes a heating reaction, the evaporation efficiency can be improved under vacuum conditions (a vacuum device needs to be connected). The solvent vapor is cooled into a liquid when passing through the glass condensation coil (a cooling device needs to be connected), and can be returned to the kettle or through a reflux bend. The valve under the head is recovered. After the reaction is completed, the material can be released from the side outlet at the bottom of the kettle.

This series of products needs to be equipped with vacuum devices, high-temperature or low-temperature circulation devices, etc. to form a system device.

FEATURES

1. All parts in contact with materials are made of high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene, which have stable performance and are not prone to chemical reactions with materials.

2. Bottom plate main body is made of aluminum alloy + stainless steel.

3. Glass + PTFE discharge valve, no liquid accumulation side discharge.

4. Electronic stepless speed regulation, fine-tuning by turning the knob, and digital display of speed.

5. The mixing system adopts double bearings and double skeleton oil seals.

6. The vacuum pressure gauge displays real-time vacuum and the pointer displays.

7. Crescent-shaped stirring paddle, 304 stainless steel + PTFE stirring blade; the stirring rod is made of 304 stainless steel and covered with PTFE tube.

8. Fuse safety protection, overload protection.

SPECIFICATIONS

Model

LGR-1LN

LGR-3LN

LGR-5LN

Kettle Body Capacity

1L   inner diameter 120mm outer diameter 150mm inner length 160mm

3L   inner diameter 180mm outer diameter 230mm inner length 240mm

5L inner diameter 180mm outer   diameter 230mm inner length 270mm

Mezzanine Capacity

About 200ml

About 600ml

About 800ml

Voltage Frequency

220V/50Hz

Stirring Motor Power

60W

Stirring Speed

50-1500rpm

Speed Display

Large Color Screen Display

Time Display

Torque Display

Temperature Display

Timing Range

0-99h59min

Kettle Body Temperature Range

-80~ +250

Temperature Measurement Accuracy

±1

Vacuum Degree

0.098Mpa

Cauldron Lid

Φ150mm Five Ports

Stirring Port

Φ50mm Flange Port

Condensation Port

24# Standard Mouth

29# Standard Mouth

Constant Pressure Funnel Mouth

24# Standard Mouth

29# Standard Mouth

Pressure Reducing Port

19# Standard Mouth

24# Standard Mouth

Thermometer Port

19# Standard Mouth

24# Standard Mouth

Impeller

10×450H(Mm) Leaf Span 80mm

Φ10×600H(Mm) Leaf Span 90mm

Condenser

Φ40mm×350H(Mm) Upper 24# Standard   Port And Lower 29# Standard Plug

Φ60mm×450H(Mm) Upper 24# Standard   Port And Lower 29# Standard Plug

Constant Pressure Funnel

250ml, Upper 24# Standard Port   With Glass Stopper, Lower 24# Standard Stopper

500ml, Upper 24# Standard Port   With Glass Stopper, Lower 24# Standard Stopper

Pressure Reducing Valve

19# Standard Plug Valve, Air   Release Nozzle (Pagoda Joint) Outer Diameter 10mm

24# Standard Plug Valve, Air   Release Nozzle (Pagoda Joint) Outer Diameter 10mm

Thermometer Port

19# Standard Plug Temperature   Measuring Probe

24# Standard Plug Temperature   Measuring Probe

Mezzanine Entrance And Exit   Circulation Port

Φ25 flange port matching flange plate,   transfer pagoda joint outer diameter 14mm

Discharge Port

The Thread Mouth Is Equipped With   a Ptfe Discharge Valve, An Inclined Discharge Nozzle (Pagoda Joint) Φ12mm,   And a Height Of 150mm From The Ground.

Vacuum Suction Head

24# Glass Air Extraction Head,   Nozzle (Pagoda Joint) Outer Diameter 10mm

Condensation Coil Inlet And Outlet   Circulation Nozzle

Pagoda Connector Outer Diameter   10mm

Machine   Size(L*W*H)

450×450×1050mm

Net Weight

18.5kg
