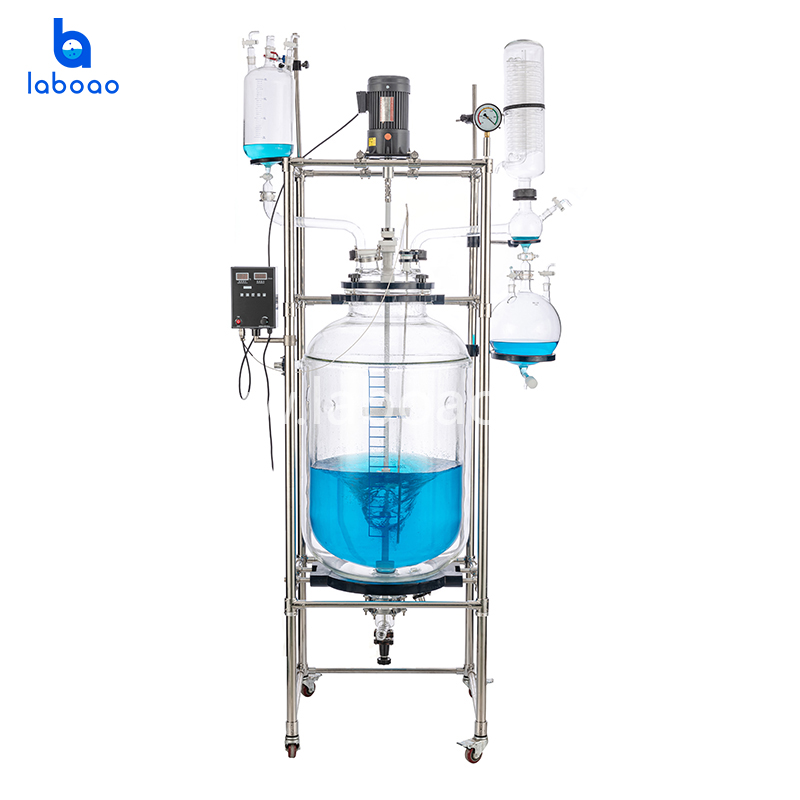

200L Jacketed Glass Reactor Vessel
LGR-200L
High borosilicate glass reactor vessels with bottom valve Glass dome with ports for inlet, solid feed, vacuum, etc. PTFE coated stirrer, mechanical seal Adjustable speed stirrer drive CE and ISO certificate.
Download
DESCRIPTION
Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.
FEATURES
1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.
2. Wide range of temperature operations, from -60°C to 250°C.
3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)

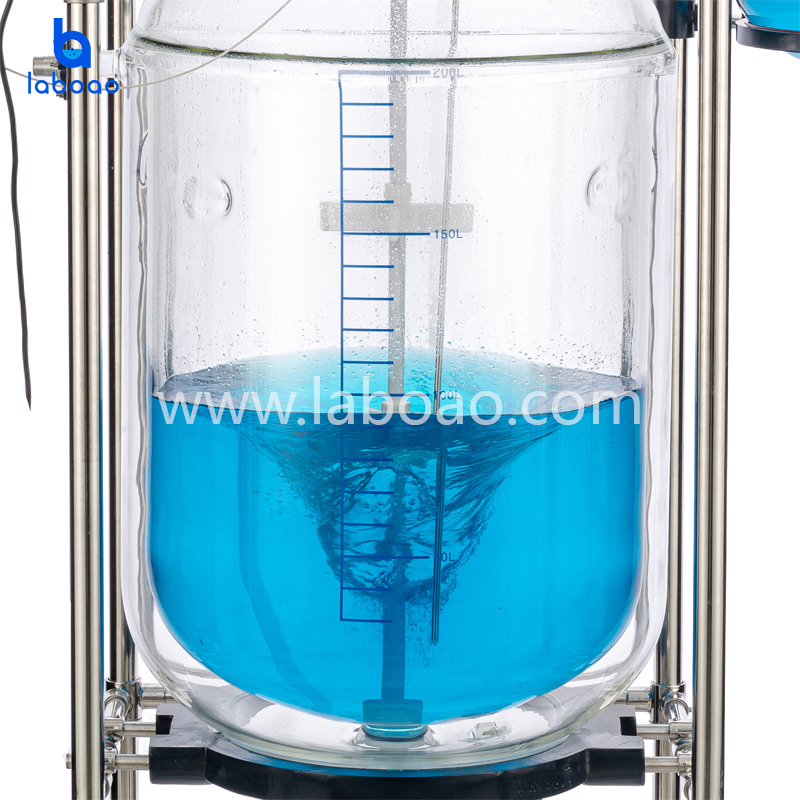

7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.

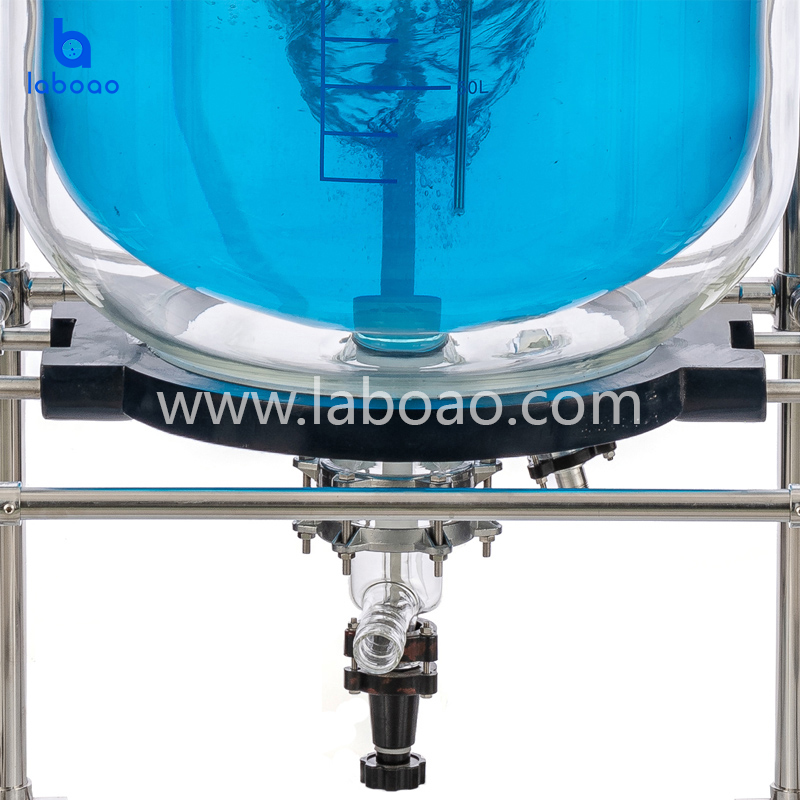

8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.
SPECIFICATIONS
Model | LGR-200L | |
Kettle volume | 200L， inner diameter 600mm, outer diameter 650mm,inner length 840mm | |
Jacketed volume | about 40L | |
Voltage/frequency | 220V/50HZ | |
Stirring power | 750W 1/5 | |
Stirring speed | 0-280r/min | |
Temperature range vessel can bear | -80 ℃ to 250 ℃ | |
Temperature accuracy | ±1℃ | |
Vacuum degree | 0.098Mpa Negative pressure | |
Cover diameter | Φ340mm | |

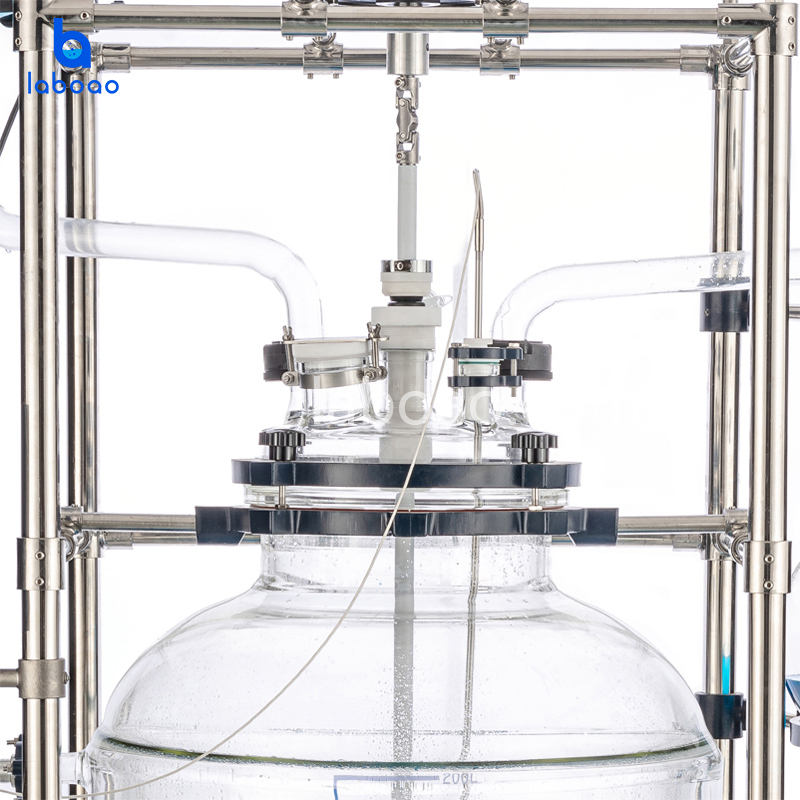

6ports of cover | Stirring port | Φ60mm flange port |
Condenser reflux port | 50# ball mill port | |
Adding dropwise elbow port | 50# ball mill port | |
Relief port | 34# standard port | |
Temperature measure port | Φ45mm flange port | |
Solid feeding port | Φ80mm flange port，inner diameter Φ60mm matched with PTFE cover | |
Stirring paddle | Φ20*1300H(mm), leafing 240mm | |

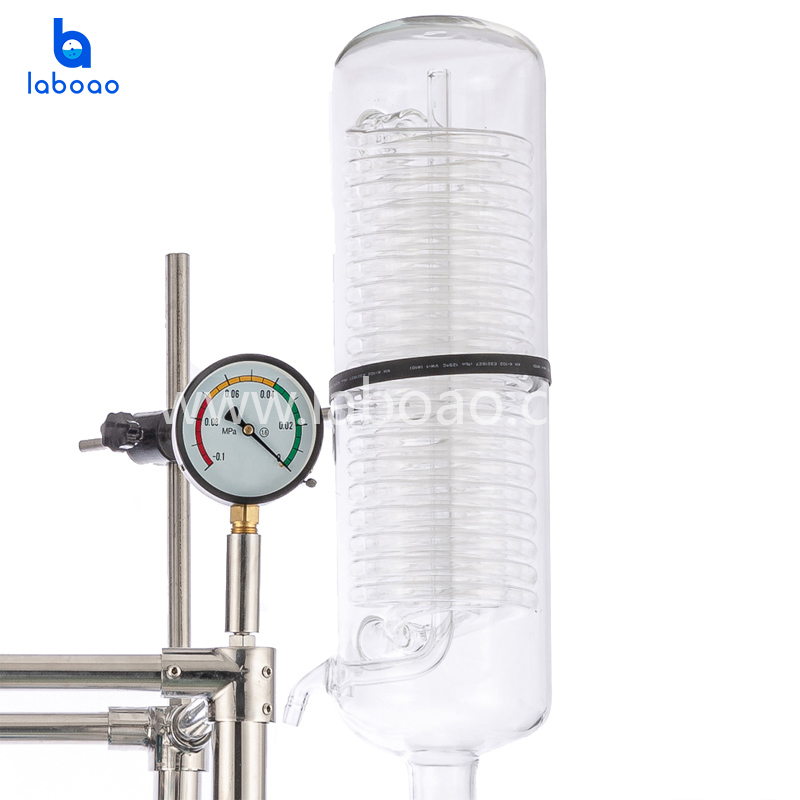

Condenser size | Φ160*600H(mm), down with Φ60mm flange port | |
Condensation area | 0.95㎡ | |
Reflux elbow | upper with Φ60mm flange port，left with 50# ball mill plug，right with 24# standard port matched with functional valve, down with 50# ball mill plug valve | |

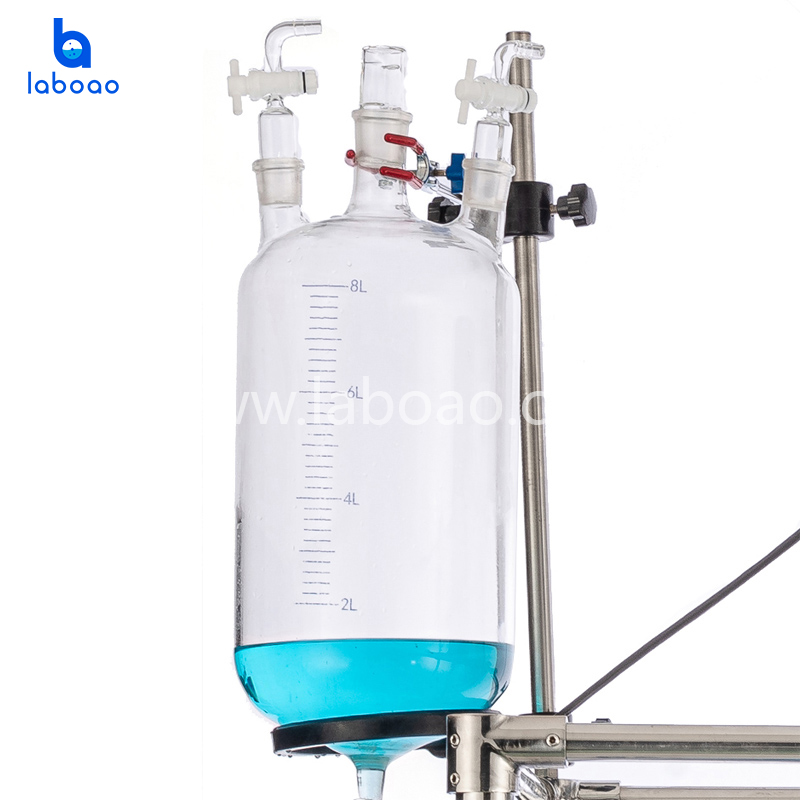

Adding dropwise bottle | 5L,tubular, upper with 29# standard port matched with vent valve *2, 34# standard port matched with glass plug | |

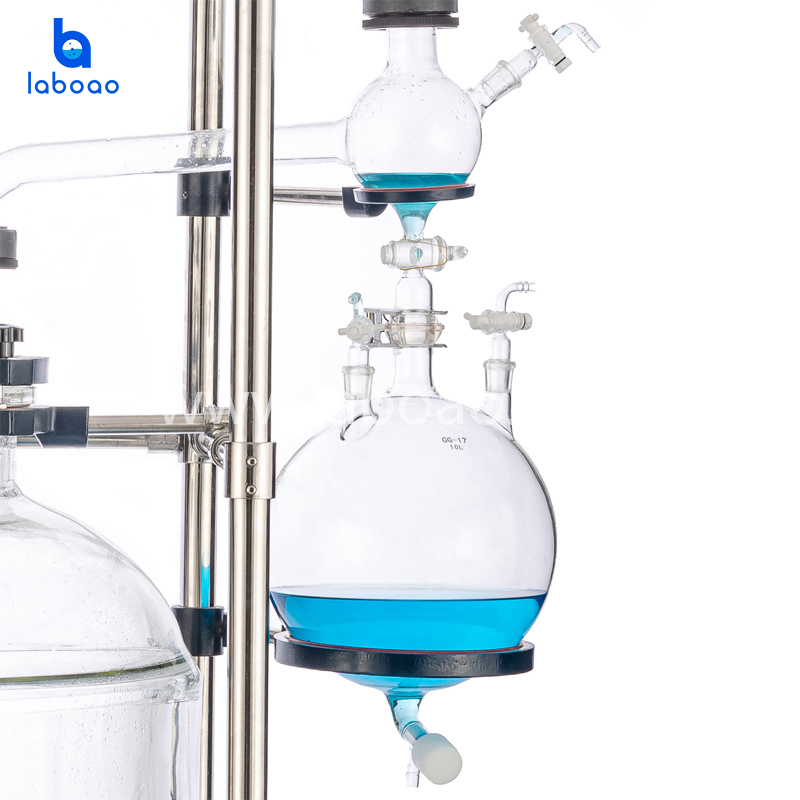

Receiving bottle | 10L，upper with 50# ball mill port，24# standard port matched with vent valve*2, down with glass baiting valve | |
Relief valve | 34# standard plug valve，vent nozzle (pogada connector), outer diameter 12mm | |
In and out circulation port of the sandwich | Φ45mm flange port matched with ring flange, 6 points outside the wire adapter | |
Baiting port | Φ100mm flange，Φ65mm baiting port，inclined discharged port (pagoda connector), Φ40mm，from floor 300mm | |
Vacuum suction nozzle | padoga connector,outer diameter 12mm | |
In and out circulation nozzle of condenser coil | padoga connector,outer diameter 15mm | |
Overall dimension (W*L*H) | 1250*930*2800mm | |
Net weight | 175kg | |
Packing dimension | 2200*790*875mm， 1385*880*910mm, 2.63m³ | |
Packing weight | 271kg (159+112) | |
8 Good Reasons To Choose LABOAO 200L Jacketed Glass Reactor Vessel
-
A full set of glassware with GG3.3 borosilicate glass
-
Wide range of temperature operations, from -60°C to 250°C.
-
Solvent-resistant PTFE seal ensure long time durability and operation.
-
The PT100 temperature, and is a liquid crystal display.
-
Frequency control, AC induction motor.
-
Heavy duty stainless steel supporting framework with lockable casters.
-
Rugged stainless steel reinforced PTFE stirrer with anchored agitator.
-
The bottom flange discharge port with a Teflon value.
