DESCRIPTION

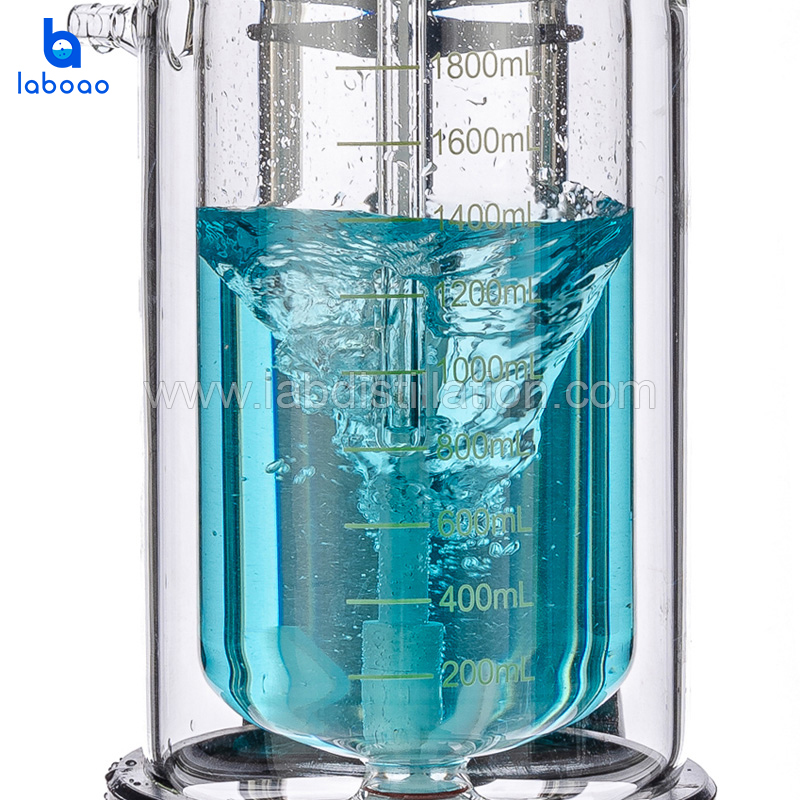

5L Jacketed Glass Reactor Vessel
LGR-5L
Dobule layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
Download
SPECIFICATIONS
Model | LGR-5L |
Glass Material | GG-17 |
Frame Material | 304 Stainless steel |
Reaction bottle capacity | 5L |
Jacketed Capacity | 0.8L |
Flanged out of the oil circulation port | Low feed high outlet |

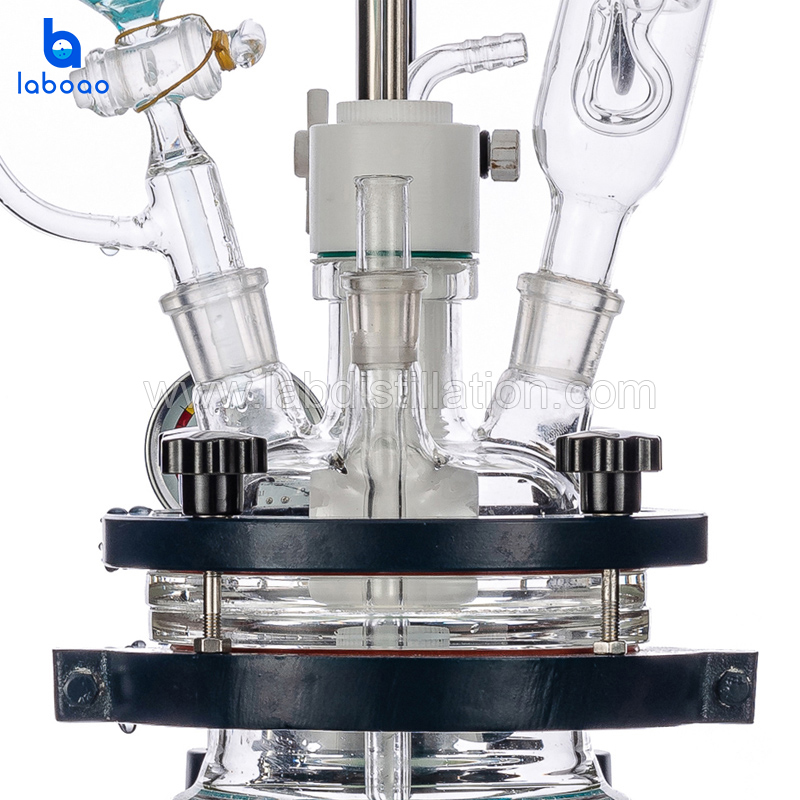

Reaction bottle cover port | 5 ports |
Discharge port distance to ground | 30mm |
Temp. range | -80~250℃ |
Vacuum | 0.098Mpa |
Stirring speed | 0-800rpm |
Stirring diameter | 8mm |
Stirring power | 90W |
Voltage(V/Hz) | 220V/50Hz |
Dimension(mm) | 350*410*1250 |
Packing size(mm) | 1380*500*400 |
Packing weight（KG） | 38kg |
8 Good Reasons To Choose LABOAO 5L Jacketed Glass Reactor Vessel
-
A full set of glassware with GG3.3 borosilicate glass
-
Wide range of temperature operations, from -60°C to 250°C.
-
Solvent-resistant PTFE seal ensure long time durability and operation.
-
The PT100 temperature, and is a liquid crystal display.
-
Frequency control, AC induction motor.
-
Heavy duty stainless steel supporting framework with lockable casters.
-
Rugged stainless steel reinforced PTFE stirrer with anchored agitator.
-
The bottom flange discharge port with a Teflon value.
