50L Jacketed Glass Reactor Vessel

LGR-50L
Jacketed glass reactor is with double glass design, the reaction kettle placed with reaction menstruum can do the mixing reaction, and the interlayer can be added with different cold and heat sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.


FEATURES

1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.

2. Wide range of temperature operations, from -60°C to 250°C.

3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

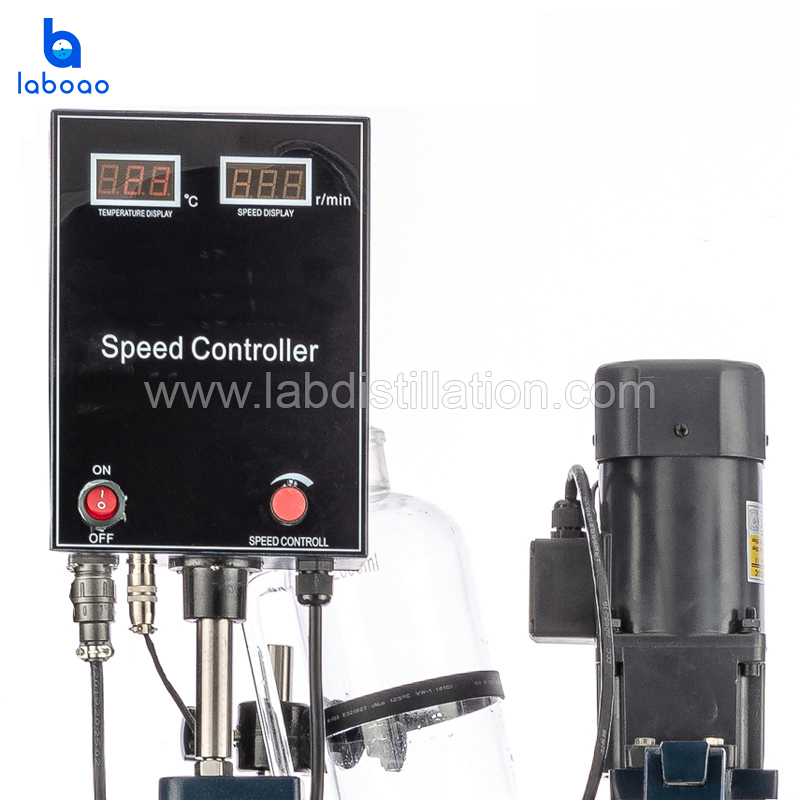

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)

7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.

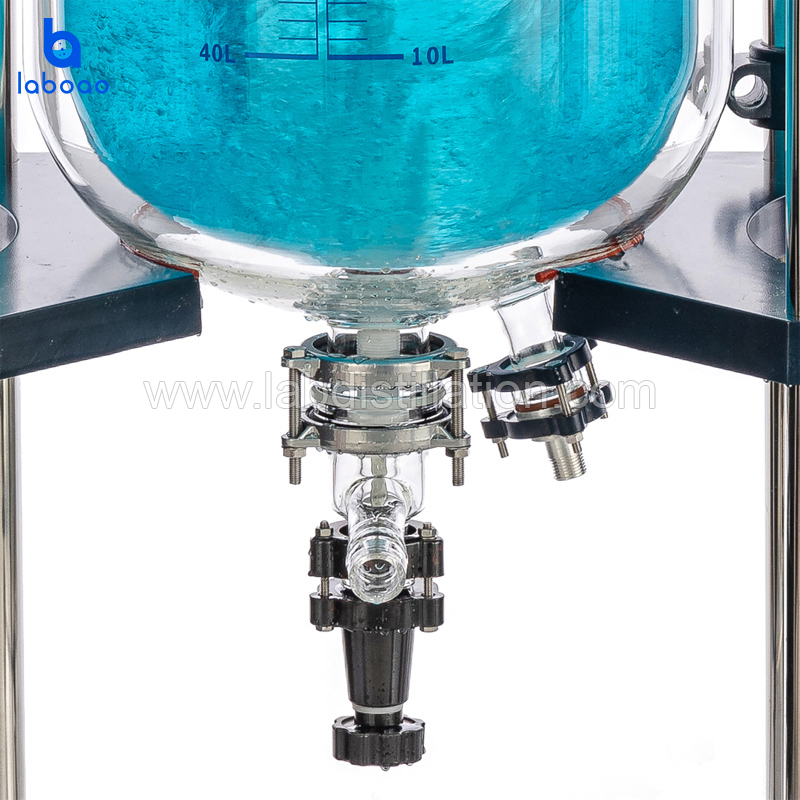

8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.

SPECIFICATIONS

Model

LGR-50L

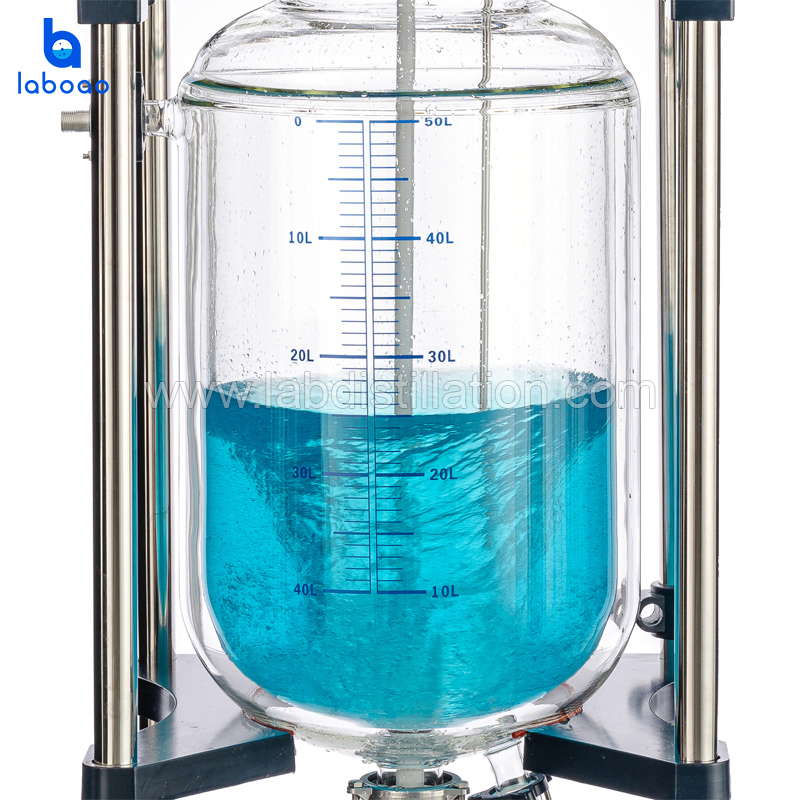

Kettle volume

50L inner   diameter 365mm, outer diameter 410mm, inner length 576mm

Jacketed volume

about 16L

Voltage/frequency

220V/50HZ

Stirring power

120W  1/3

Stirring speed

0-450r/min

Temperature range vessel can bear

-80  to 250

Temperature accuracy

±1

Vacuum degree

0.098Mpa

Cover diameter

Φ265mm

6ports of cover

Stirring port

Φ50mm flange port

Condenser port

50# ball mill port

Constant pressure funnel port

40# standard port

Relief port

34# standard port

Temperature measure port

Φ45mm flange port

Solid feeding port

Φ80mm flange portinner diameter Φ60mm matched with PTFE cover

Stirring  paddle

Φ17*1000H(mm), leafing 190mm

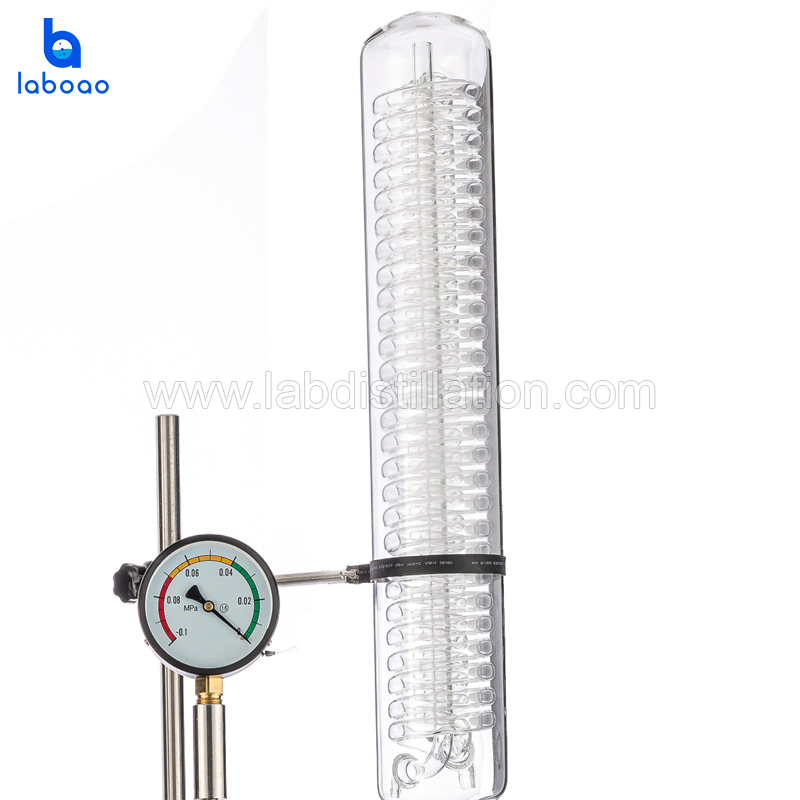

Condenser size

Φ100*700H(mm), down with Φ60mm flange port

Condensation area

0.4

Reflux elbow

upper with Φ60mm flange portleft with 50# ball mill plug

Constant pressure funnel

2L, upper with 29# standard port matched with glass plug, down   with 40# standard plug

Relief valve

34# standard plug valvevent nozzle (pagoda connector), outer diameter 12mm

In and out circulation port of the sandwich

Φ45 flange port matched with ring flange, 4 points outside   the wire adapter

Baiting port

Φ75mm flanger portΦ33mm baiting portinclined discharging port, (pagoda connector)Φ34mmfrom floor 350mm

Vacuum suction nozzle

padoga connector,outer diameter 12mm

In and out circulation nozzle of condenser coil

padoga connector,outer diameter 15mm

Overall dimension (W*L*H)

870*560*2270mm

Net weight

67kg

Packing dimension

1690*615*880mm, 0.92m³

Packing weight

104kg
