DESCRIPTION
2L Jacketed Glass Reactor Vessel
LGR-2L
High borosilicate glass reactor vessels with bottom valve；Glass dome with ports for inlet, solid feed, vacuum, etc；PTFE coated stirrer, mechanical seal；Adjustable speed stirrer drive；CE and ISO certificate.
Download
SPECIFICATIONS
Model | LGR-2L |
Glass Material | GG-17 |
Frame Material | 304 Stainless steel |
Reaction bottle capacity | 2L |
Jacketed Capacity | 0.5L |
Flanged out of the oil circulation port | Low feed high outlet |

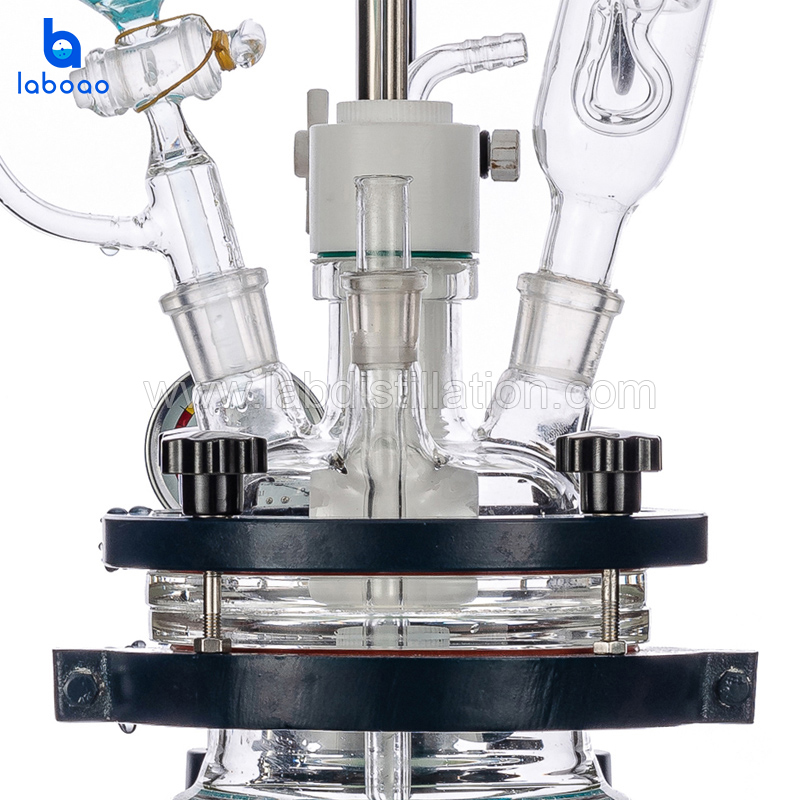

Reaction bottle cover port | 5 ports |
Discharge port distance to ground | 30mm |
Temp. range | -80~250℃ |
Vacuum | 0.098Mpa |
Stirring speed | 0-800rpm |
Stirring diameter | 8mm |
Stirring power | 40W |
Voltage(V/Hz) | 220V/50Hz |
Dimension(mm) | 350*345*1000 |
Packing size(mm) | 1200*480*400 |
Packing weight（KG） | 32 |
8 Good Reasons To Choose LABOAO 2L Jacketed Glass Reactor Vessel
-
A full set of glassware with GG3.3 borosilicate glass
-
Wide range of temperature operations, from -60°C to 250°C.
-
Solvent-resistant PTFE seal ensure long time durability and operation.
-
The PT100 temperature, and is a liquid crystal display.
-
Frequency control, AC induction motor.
-
Heavy duty stainless steel supporting framework with lockable casters.
-
Rugged stainless steel reinforced PTFE stirrer with anchored agitator.
-

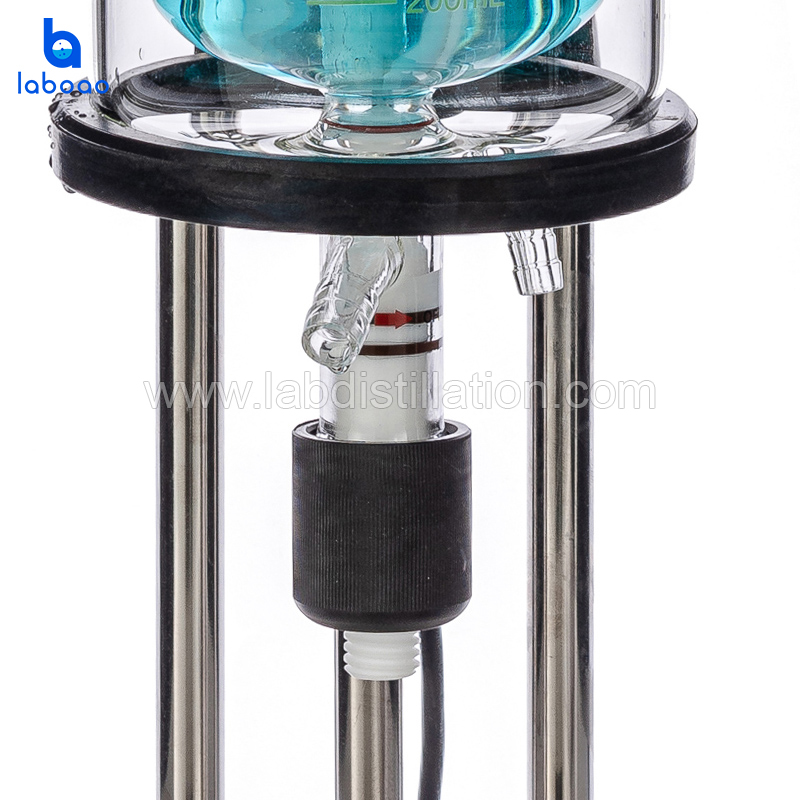

The bottom flange discharge port with a Teflon value.
