DESCRIPTION

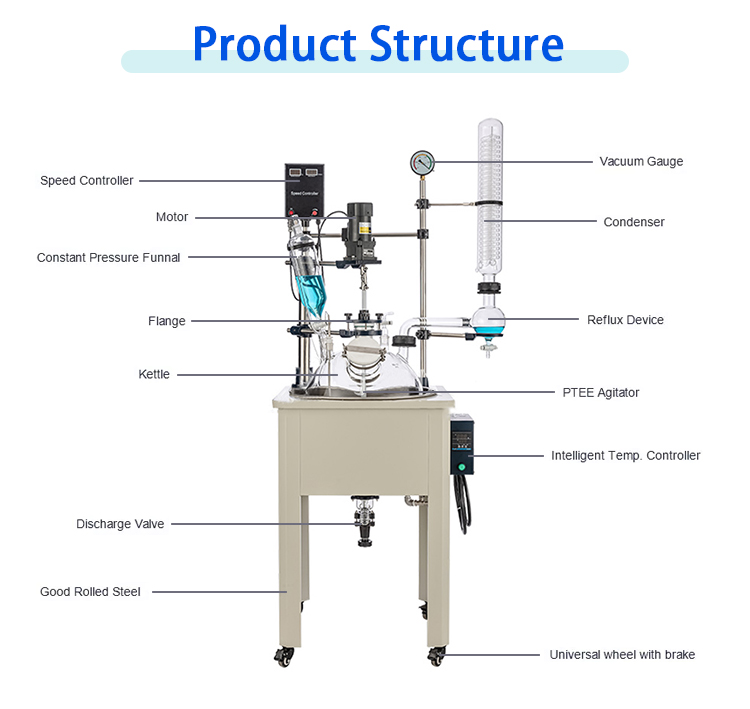

20L Single Layer Glass Reactor Vessel
LGR-20F
Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
Download
SPECIFICATIONS
Basic specification | Model | LGR-20F |
Glass material | GG-17 | |
pot shell material | Spraying antiseptic shell 640*540*890mm | |
Inner port material | stainless steel 450*250mm | |
Moving mode | Brake type universal corner wheel | |
Volume | Ball type 20L | |
Port No. of reactor cover | 7 | |
Distance between discharge to floor | 450mm | |
Vacuum | 0.098Mpa | |
Stirring speed | 0-450rpm | |
Stir rod diameter | 12mm | |
Stir power | 90W1/3 | |
Heating power | 5KW | |
Voltage | 220V 50HZ | |
Overall size (mm*mm*mm) | 700*540*1950 | |
Package size (mm*mm*mm) | 1220*620*790 0.6CBM | |
Gross weight（KG） | 80 | |
Configuration list | Speed display mode | Electronic stepless speed regulation |
Motor | Low speed booster motor, speed ratio 3: 1 | |
Speed display mode | LCD digital display | |
Temperature display | digital display | |
Seal | PTFE seal, ￠80 flange stir port | |
Condenser | Vertical high efficiency double reflux condenser 100*600mm，Φ60 flange port | |
Reflux (distillation) device | Return bend with feeding switch, 50# ball mill port | |
Drop adding device | 1LConstant pressure funnel, 34 standard | |
Pressure release device | standard 34# pressure release valve | |
Temperature tube | standard 24# | |
Solid adding (cleaning) port | ￠120 flange port with PTFE cover | |
Discharge | glass discharge valve, ￠80 flange port | |
Vacuum display mode | Vacuum gauge | |
Mixing connection | universal joint link | |
Stir rod | Anchor type, Stainless steel rod with PTFE |
7 Good Reasons To Choose LABOAO 20L Single Layer Glass Reactor Vessel
-
Frequency control, AC induction moto.
-
Supporting glass using GG3.3 high boron silicon material production.
-
PTFE (Ceramic) mechanical component sealing.
-
Overall stainless steel frame structure, stable and reliable without shaking when mixing.
-
Casters with brake fixed, it is convenient and reliable for mobile use.
-
The PTFE discharge valve without dead corner.
-
Computer controlled thermostatic oil bath, the intelligent PID control.
