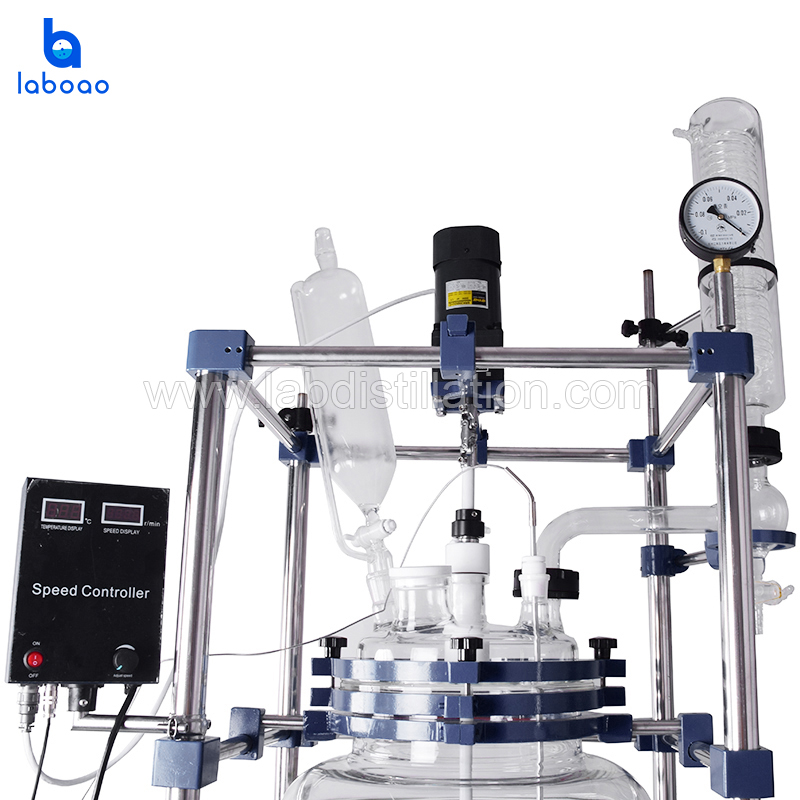

100L Jacketed Glass Reactor Vessel
LGR-100L
Jacketed glass reactor is with double glass design, the reaction kettle placed with reaction menstruum can do the mixing reaction, and the interlayer can be added with different cold and heat sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction.
Download
DESCRIPTION
Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.

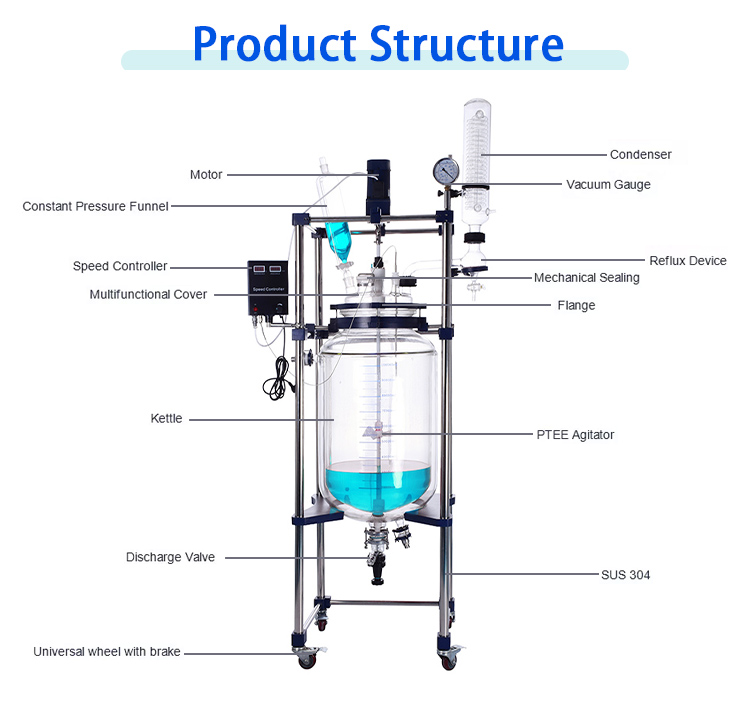

1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant. 2. Wide range of temperature operations, from -60°C to 250°C. 3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa. 4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient. 5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work. 6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled) 7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional. 8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed. Model LGR-100L Kettle volume 100L， inner diameter 465mm, outer diameter 510mm, inner length 696mm Jacketed volume about 25L Voltage/frequency 220V/50HZ Stirring power 200W 1/3 Stirring speed 0-450r/min Temperature range vessel can bear -80 ℃ to 250 ℃ Temperature accuracy ±1℃ Vacuum degree 0.098Mpa Cover diameter Φ340mm 6ports of cover Stirring port Φ60mm flange port Condenser port 50# ball mill port Constant pressure funnel port 40# standard port Relief port 34# standard port Temperature measure port Φ45mm flange port Solid feeding port Φ80mm flange port，inner diameter Φ60mm matched with PTFE cover Stirring paddle Φ17*1200H(mm), leafing 240mm Condenser size Φ120*600H(mm), down with Φ60mm flange port Condensation area 0.5㎡ Reflux elbow upper with Φ60mm flange port，left with 50# ball mill plug Constant pressure funnel 2L, upper with 29# standard port matched with glass plug, down with 40# standard plug Relief valve 34# standard plug valve，vent nozzle (pagoda connector), outer diameter 12mm In and out circulation port of the sandwich Φ45 flange port matched with ring flange, 6 points outside the wire adapter Baiting port Φ75mm flanger port，Φ42mm baiting port，inclined discharging port, (pagoda connector)Φ34mm，from floor 350mm Vacuum suction nozzle padoga connector,outer diameter 12mm In and out circulation nozzle of condenser coil padoga connector,outer diameter 15mm Overall dimension (W*L*H) 950*750*2390mm Net weight 95kg Packing dimension 1920*720*970mm,1.34m³ Packing weight 152kgFEATURES
SPECIFICATIONS
8 Good Reasons To Choose LABOAO 100L Jacketed Glass Reactor Vessel
-
A full set of glassware with GG3.3 borosilicate glass
-
Wide range of temperature operations, from -60°C to 250°C.
-
Solvent-resistant PTFE seal ensure long time durability and operation.
-
The PT100 temperature, and is a liquid crystal display.
-
Frequency control, AC induction motor.
-
Heavy duty stainless steel supporting framework with lockable casters.
-
Rugged stainless steel reinforced PTFE stirrer with anchored agitator.
-
The bottom flange discharge port with a Teflon value.
