DESCRIPTION

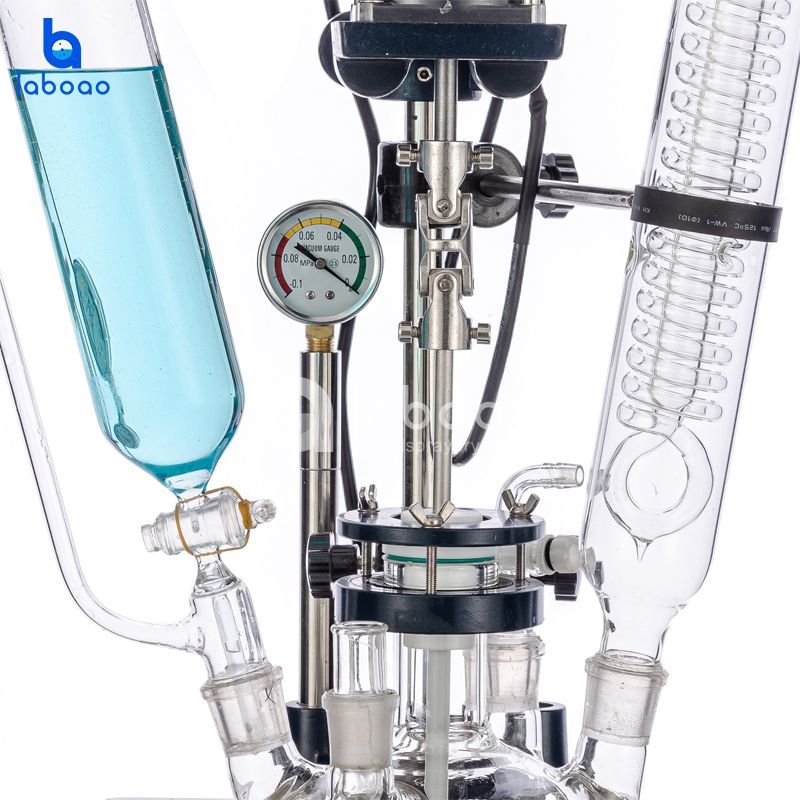

1L Single Layer Glass Reactor Vessel
LGR-1F
Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
Download
SPECIFICATIONS
Basic specification | Name | Single layer glass reactor |
Model | LGR-1F | |
Volume | 1L | |
Glass material | GG-17 | |
Frame material | Stainless steel | |
Port No. of reactor cover | 5 | |
Vacuum | 0.098Mpa | |
Stirring speed | 0-800pm | |
Stir rod diameter | 8mm | |
Motor power | 40W | |
Heating power | 1.5KW | |
Voltage | 220V/50Hz | |
Overall size (mm*mm*mm) | 320*330*1000 | |
Plate size (mm*mm*mm) | 280*330 | |
Inner size (mm*mm) | stainless steel 280*170mm | |
Package size (mm*mm*mm) | 800*480*450 | |
Gross weight（KG） | 26 | |

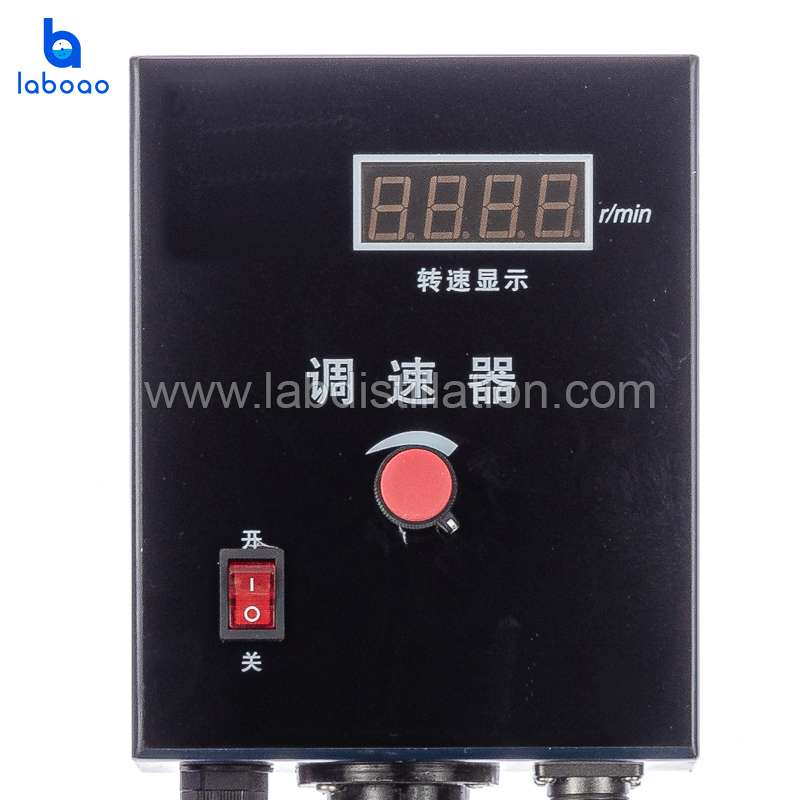

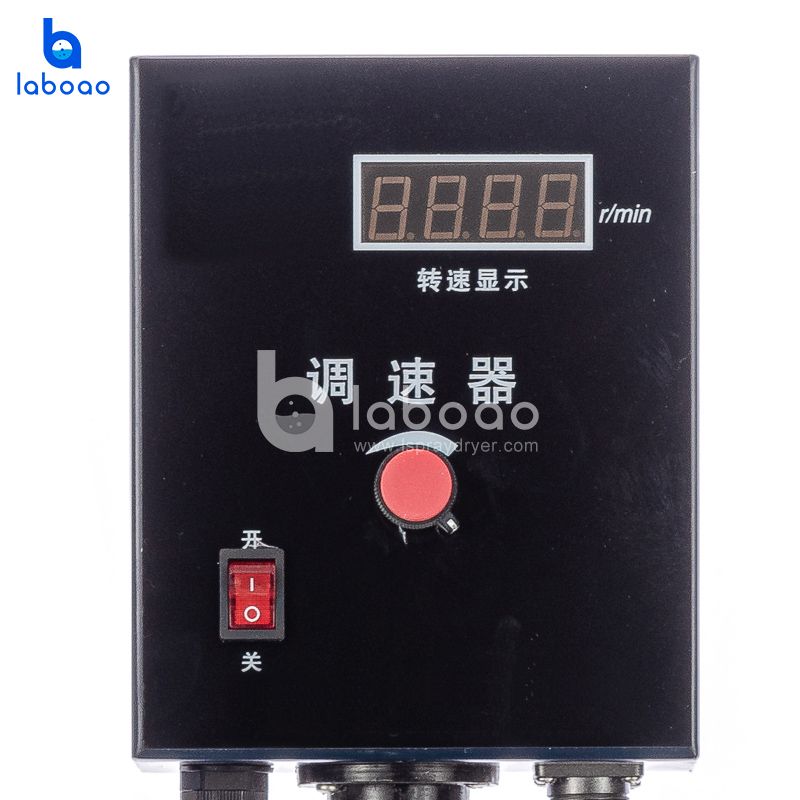

Configuration list | Speed control mode | Electronic stepless speed regulation |
Speed display mode | digital display | |
Temperature display mode | digital display | |
Seal mode | PTFE seal, ￠50 flange stir port | |

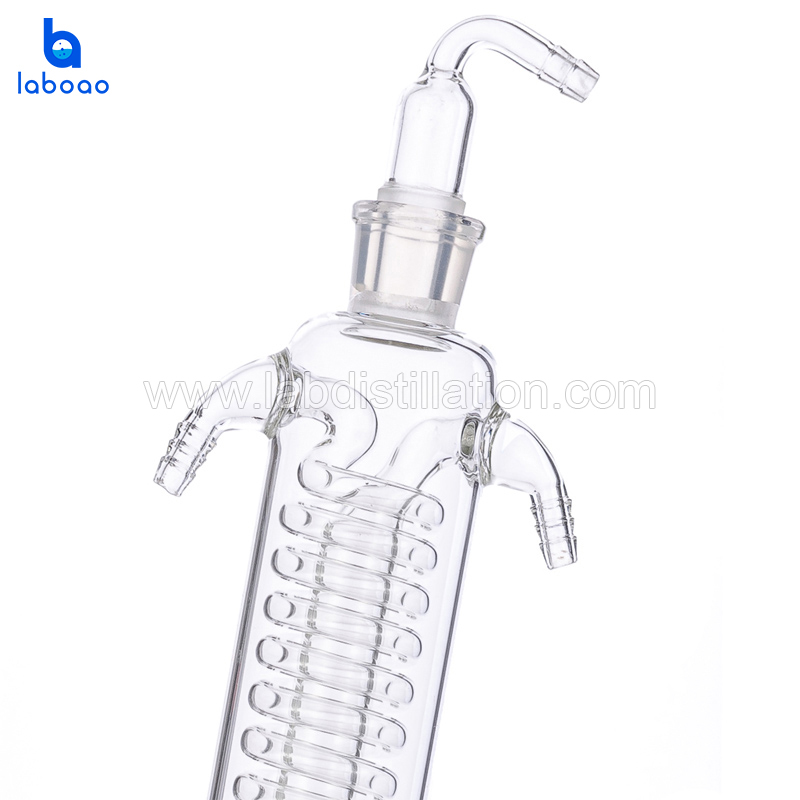

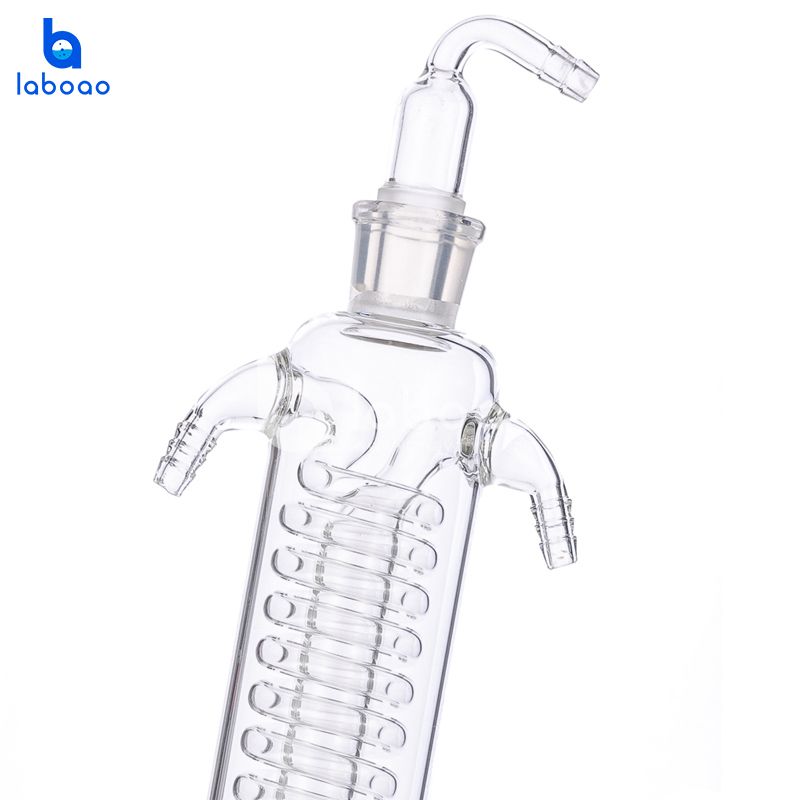

Condensor | vertical 40*400mm standard 24# | |

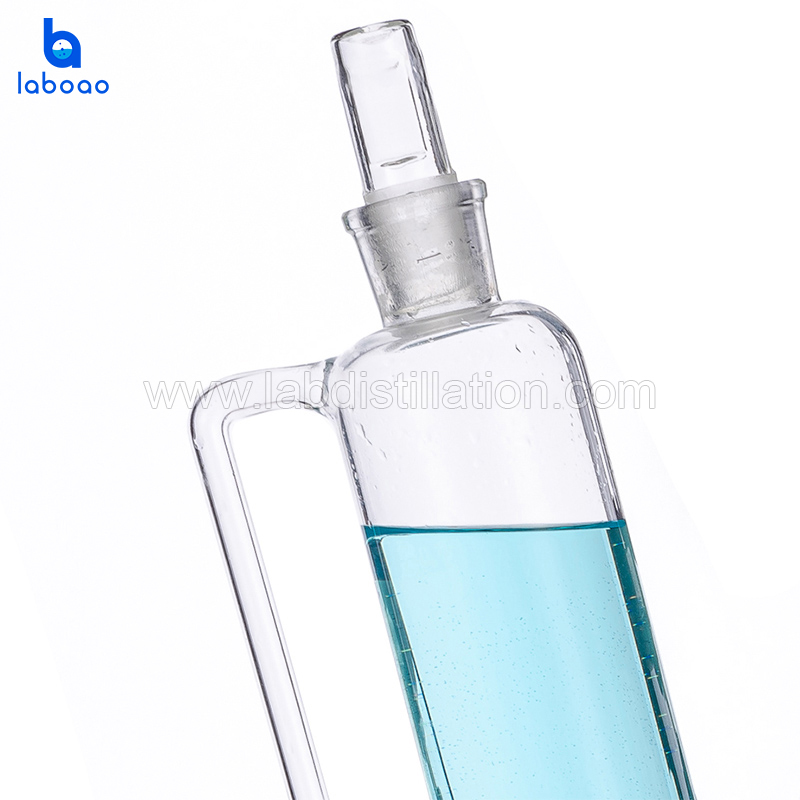

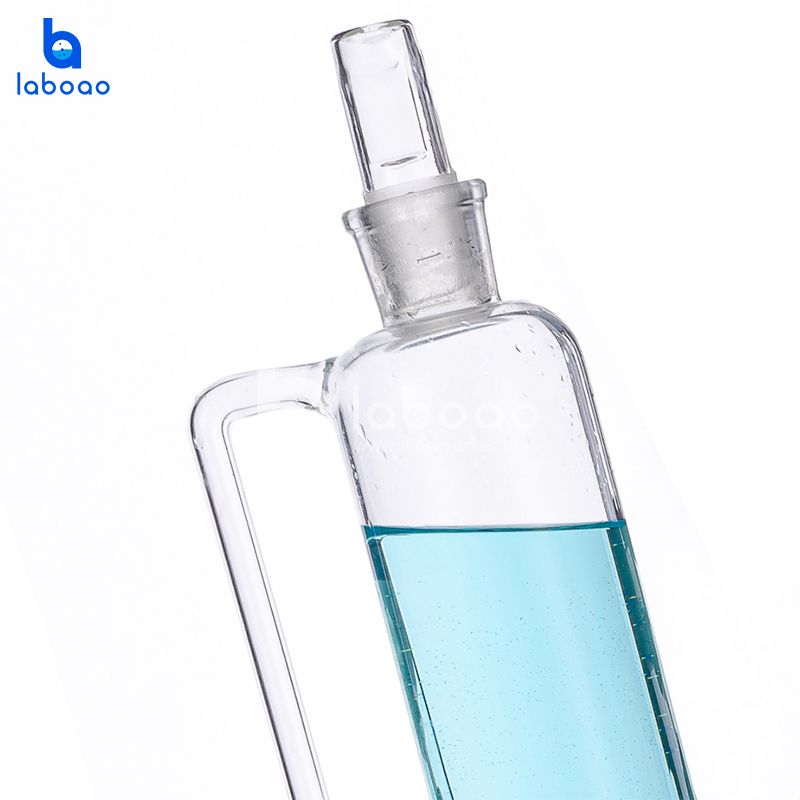

Droplet port | 250ml constant pressure funnel, standard 24# | |
Reduced pressure | NO | |
Temperature tube | standard 19# | |

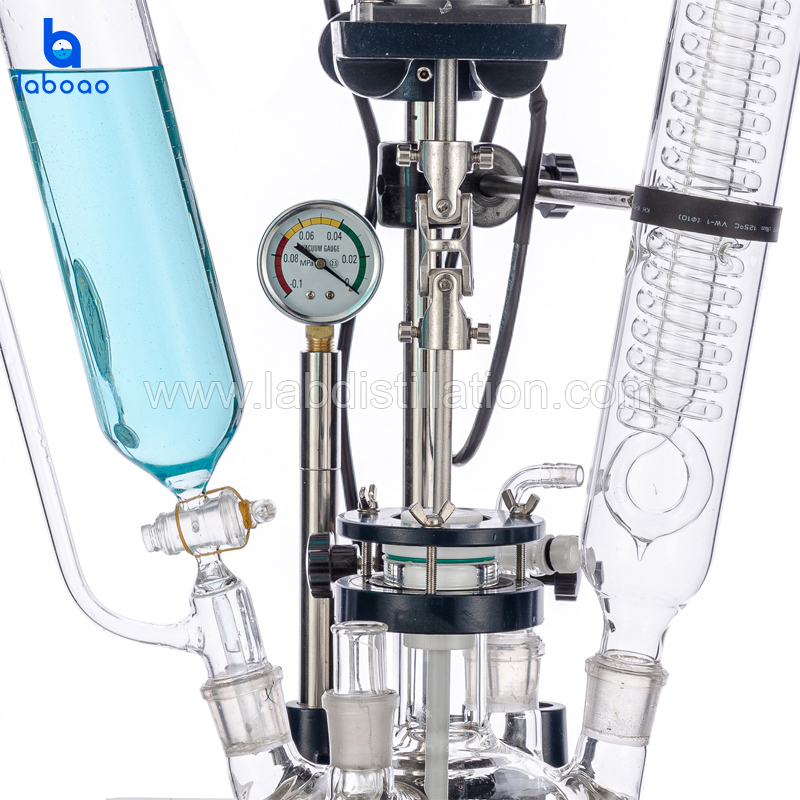

Vacuum display mode | Vacuum gauge | |
Mixing connection | universal joint link | |
Stir rod | Anchor type, Stainless steel rod with PTFE |
7 Good Reasons To Choose LABOAO 1L Single Layer Glass Reactor Vessel
-
Frequency control, AC induction moto.
-
Supporting glass using GG3.3 high boron silicon material production.
-
PTFE (Ceramic) mechanical component sealing.
-
Overall stainless steel frame structure, stable and reliable without shaking when mixing.
-
Casters with brake fixed, it is convenient and reliable for mobile use.
-
The PTFE discharge valve without dead corner.
-

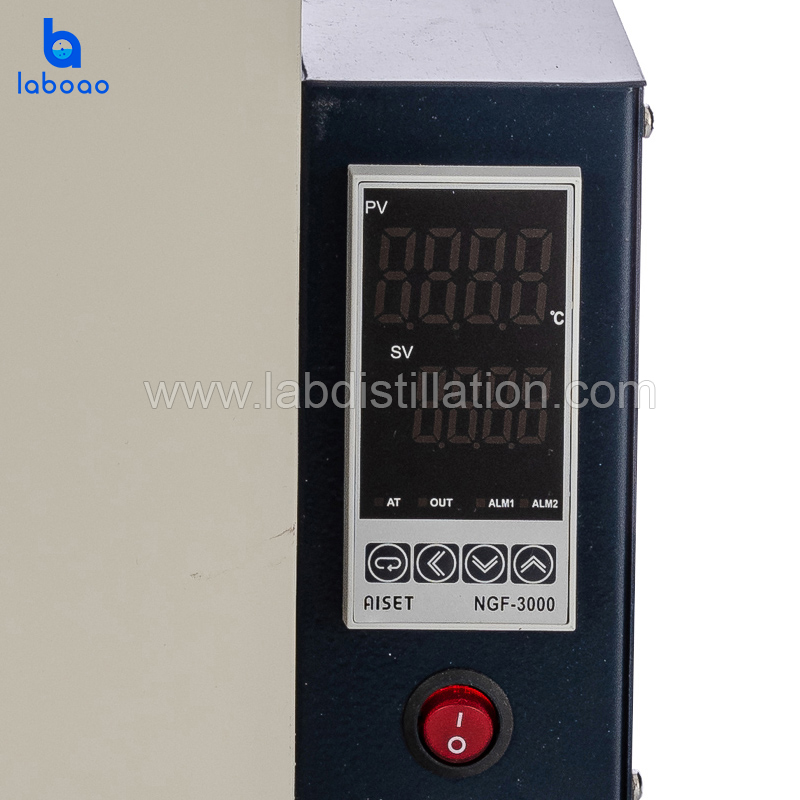

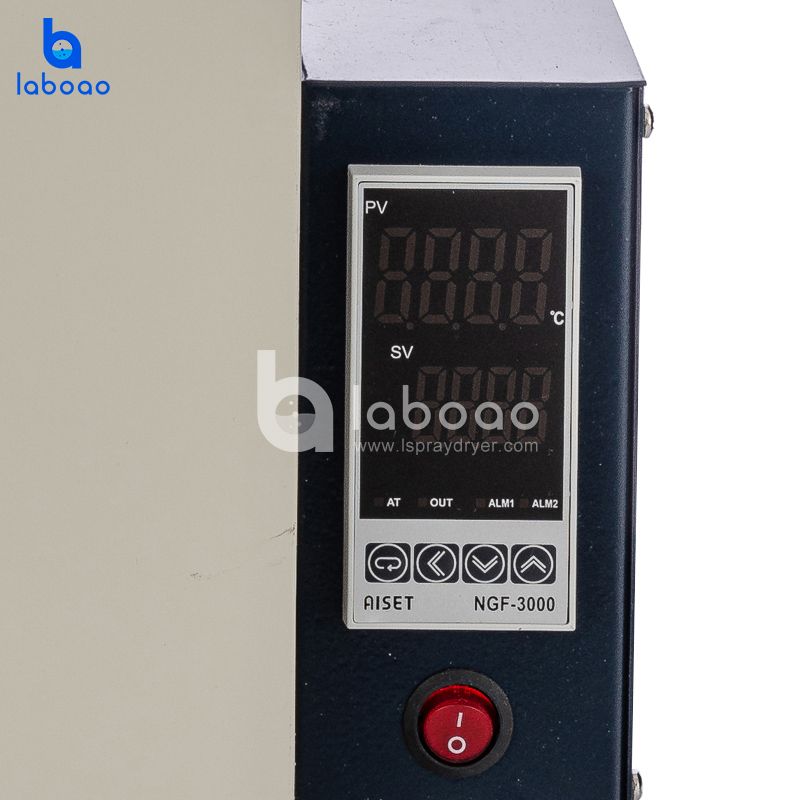

Computer controlled thermostatic oil bath, the intelligent PID control.
