1L Jacketed Glass Reactor Vessel

DESCRIPTION

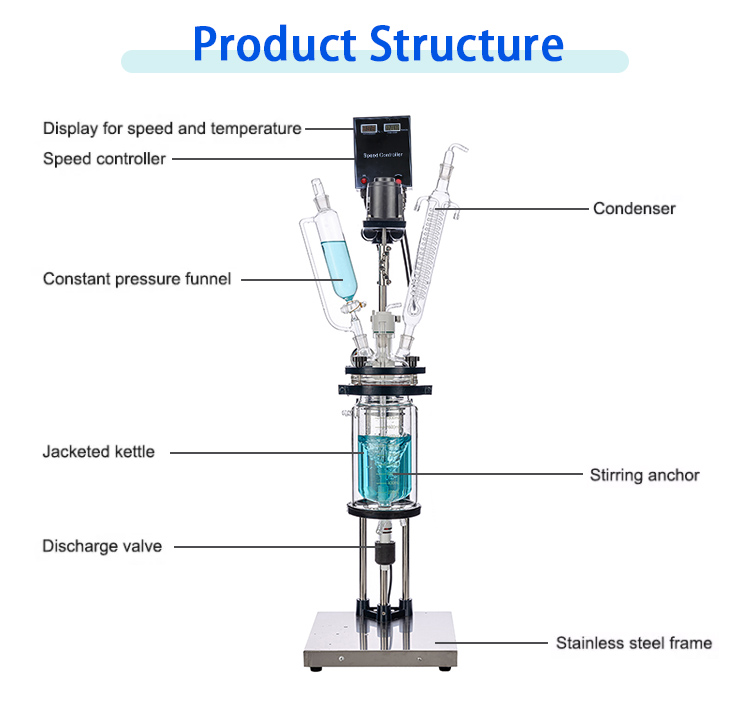

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and hemoginization.Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass and range in volume from 1L to 200L.

FEATURES

1. A full set of glassware with GG3.3 borosilicate glass that is heat/cold/corrosion-resistant.

2. Wide range of temperature operations, from -60°C to 250°C.

3. Solvent-resistant PTFE seal ensure long time durability and operation, sealing is -0.098Mpa.

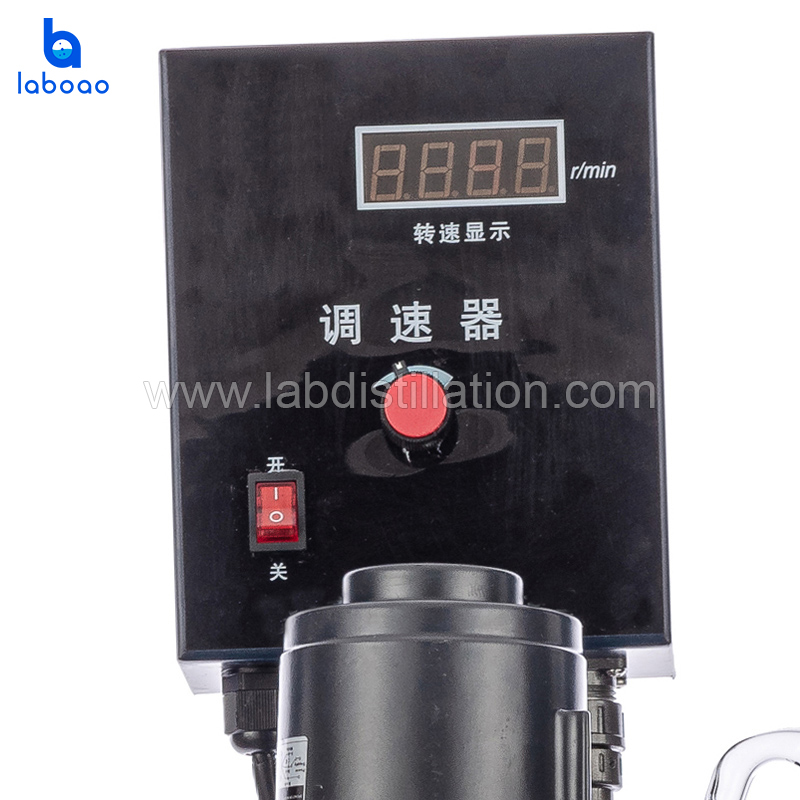

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)

7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. multi-layer stirring blades is optional.

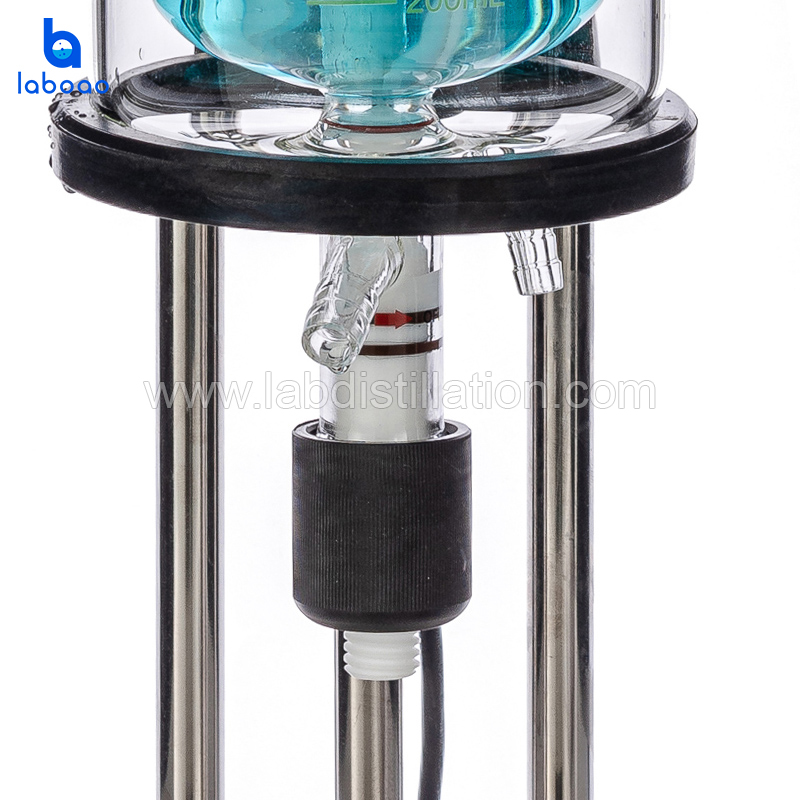

8. The bottom flange discharge port with a Teflon value, aluminum parts flange fixed.

SPECIFICATIONS
