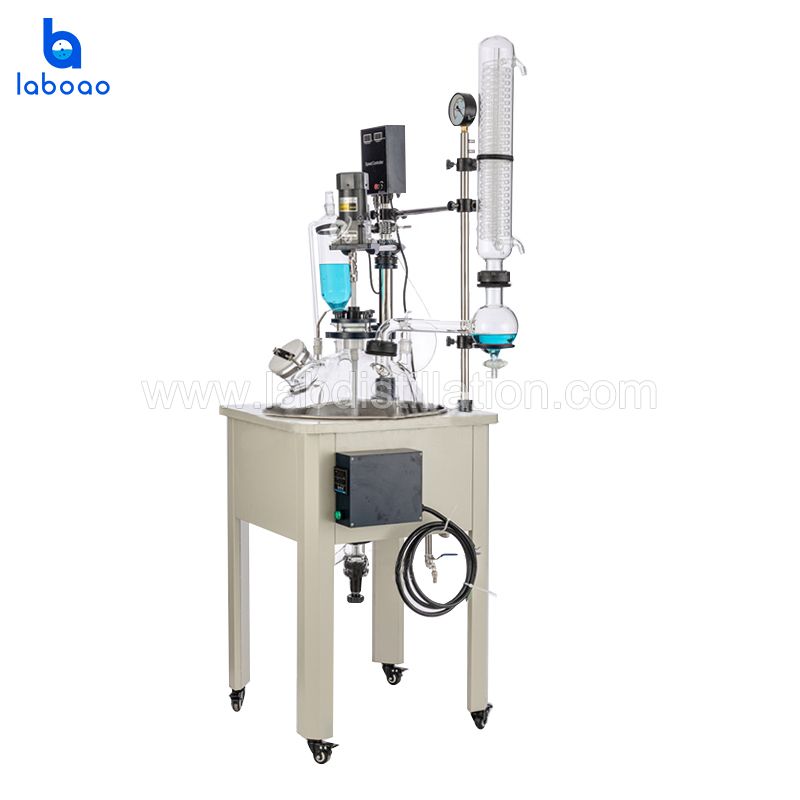

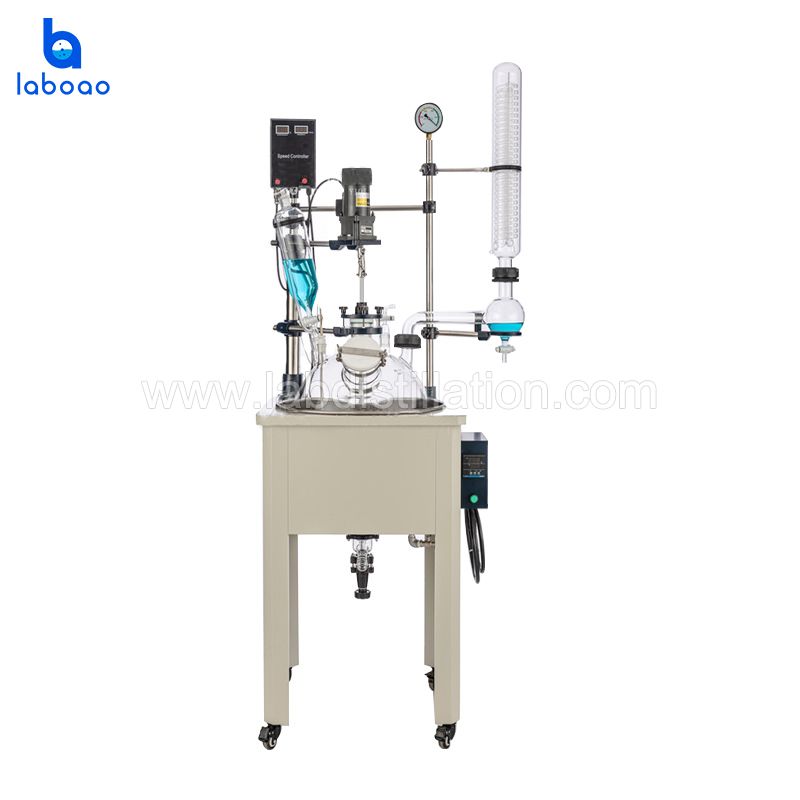

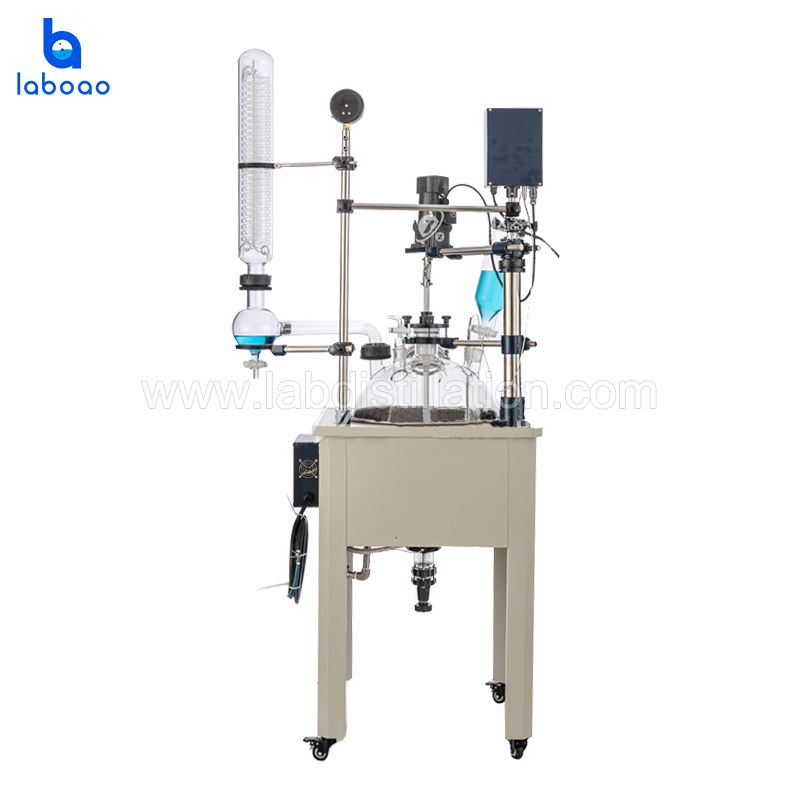

10L Single Layer Glass Reactor Vessel

LGR-10F
Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download


DESCRIPTION


SPECIFICATIONS

Basic specification

Model

LGR-10F

Volume

10L

Glass material

GG-17

pot shell material

Spraying antiseptic shell

Pot shell size(mm)

540*440*860

Inner port material

Stainless steel

Inner port size(mm)

350*220

Moving mode

Brake type universal corner wheel

Shape of reactor body

Ball type

Port No. of reactor cover

7

Distance between discharge to   floor

450mm

Vacuum

0.098Mpa

Stirring speed

0-450rpm

Stir rod diameter

15mm

Stir motor

90W1/3

Heating power

3KW

Overall size (mm*mm*mm)

600*440*1900

Package size (mm*mm*mm)

1100*620*790

Gross weightKG

63

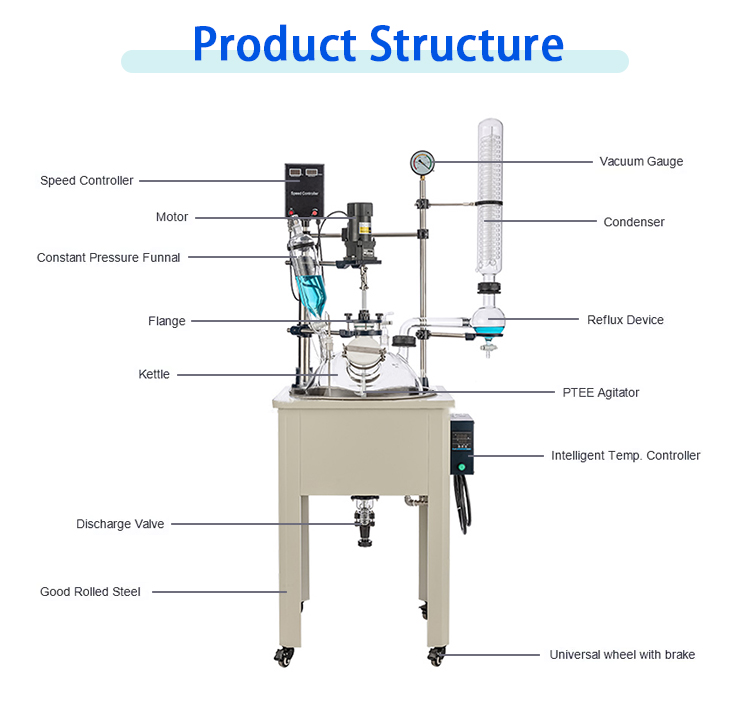

Configuration list

Motor

Low speed booster motor, speed   ratio 3: 1

Speed display mode

LCD digital display

Temperature display

digital display

Seal

70 flange stir port

Condenser

100*600mm

Reflux (distillation) device

Return bend with feeding switch,   50# ball mill port

Drop adding device

1L /34 standard

Pressure release device

standard 34# pressure release   valve

Temperature tube

standard 24#

Solid adding (cleaning) port

120 flange port with PTFE cover

Discharge

glass discharge valve, 80 flange port

Vacuum display mode

Vacuum gauge

Mixing connection

universal joint link
