DESCRIPTION
10L Jacketed Glass Reactor Vessel
LGR-10L

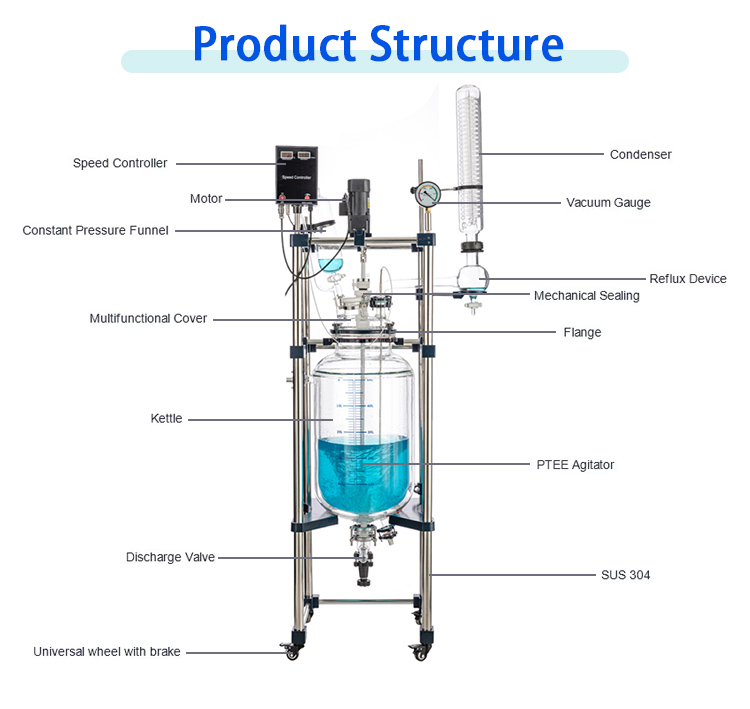

Jacketed glass reactor is with double glass design, the reaction kettle placed with reaction menstruum can do the mixing reaction, and the interlayer can be added with different cold and heat sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction.
Download
SPECIFICATIONS
Model | LGR-10L |
Glass Material | GG-17 |
Frame Material | 304 Stainless steel |
Moving mode | Brake type universal corner wheel |
Reaction bottle capacity | 10L |
Jacketed Capacity | 6L |
Flanged out of the oil circulation port | Low feed high outlet |
Reaction bottle cover port | 6ports |
Discharge port distance to ground | 450mm |
Temp. range | -80-250°C |
Vacuum | 0.098Mpa |
Stirring speed | 0-450rpm |
Stirring diameter | 12mm |
Stirring power | 90W |
Voltage(V/Hz) | 220V/50Hz |
Dimension(mm) | 520*520*2000 |
Packing size(mm) | 1370*590*800 |
Packing weight（KG） | 68 |
8 Good Reasons To Choose LABOAO 10L Jacketed Glass Reactor Vessel
-
A full set of glassware with GG3.3 borosilicate glass
-
Wide range of temperature operations, from -60°C to 250°C.
-
Solvent-resistant PTFE seal ensure long time durability and operation.
-
The PT100 temperature, and is a liquid crystal display.
-

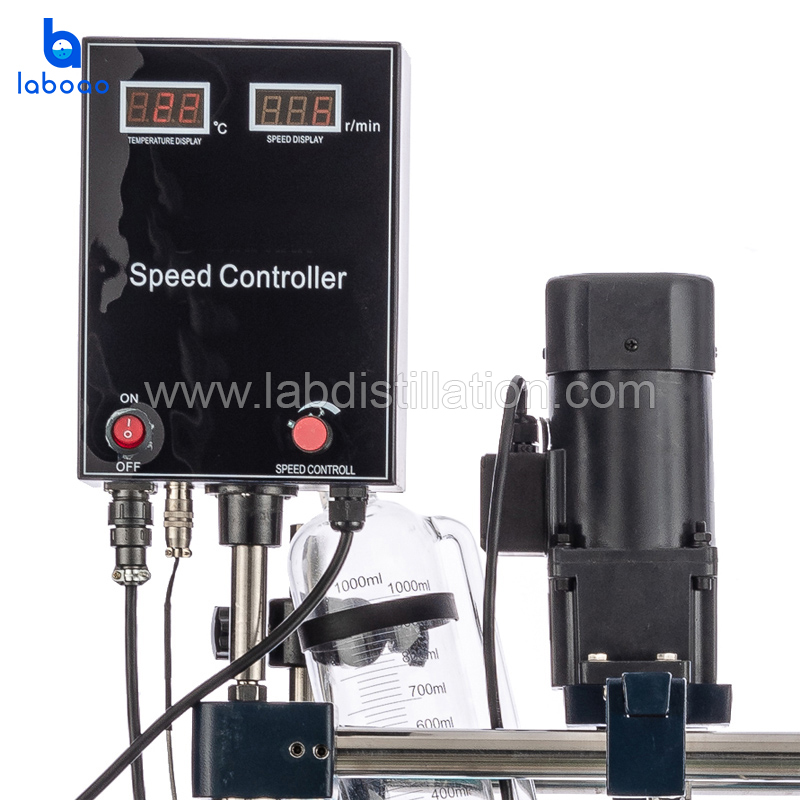

Frequency control, AC induction motor.
-
Heavy duty stainless steel supporting framework with lockable casters.
-
Rugged stainless steel reinforced PTFE stirrer with anchored agitator.
-

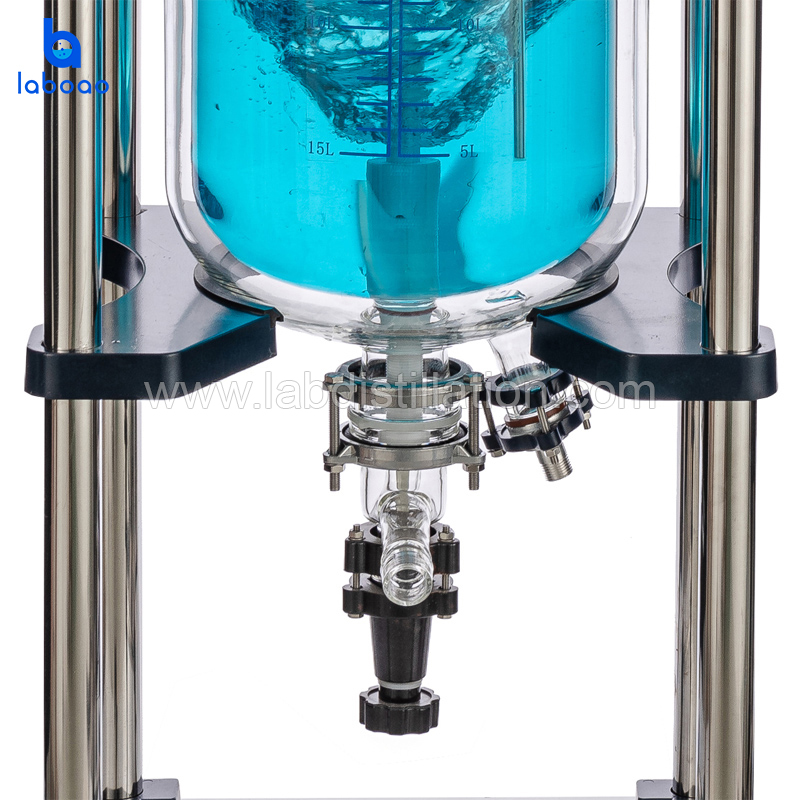

The bottom flange discharge port with a Teflon value.
