DESCRIPTION
10-100L Three Layer Jacketed Glass Reactor
LGR-T Series
The body of the three-layer glass reactor is composed of two sets of interlayers composed of three layers of glass, which can provide a stirring function and control the evaporation and reflux of the reaction solution.
Download
SPECIFICATIONS
Model | LGR-10T | LGR-20T | LGR-30T | LGR-50T | LGR-100T | |
Material capacity | 10L | 20L | 30L | 50L | 100L | |
Jacket capacity | ≈4 | ≈5 | ≈8 | ≈15 | ≈20 | |
Motor power | 120W | 200w | ||||
Rotating speed | 0-400rpm | |||||
Reaction bottle cover port | 5 ports(Stirring, temperature measurement, liquid feeding, solid feeding, emptying) | |||||
Frame material | 304 Stainless steel | |||||
Temperature measurement | T Teflon PT100, no break, accuracy ±0.1℃ | |||||
PTFE stirring paddle | Single-layer push | Double-layer push | ||||
Temperature display | Digital Display | |||||
Discharge valve | No dead ends | |||||
Liquid feed valve | 34# | |||||
Sealing method | Self-lubricating mechanical seal to prevent wear debris from falling off | |||||
Vacuum | -0.098Mpa | |||||
Explosion-proof motors | Optional | |||||
Explosion-proof inverter | Optional | |||||
Ambient temperature | 5~40℃ | |||||
Power | 220V 50HZ | |||||

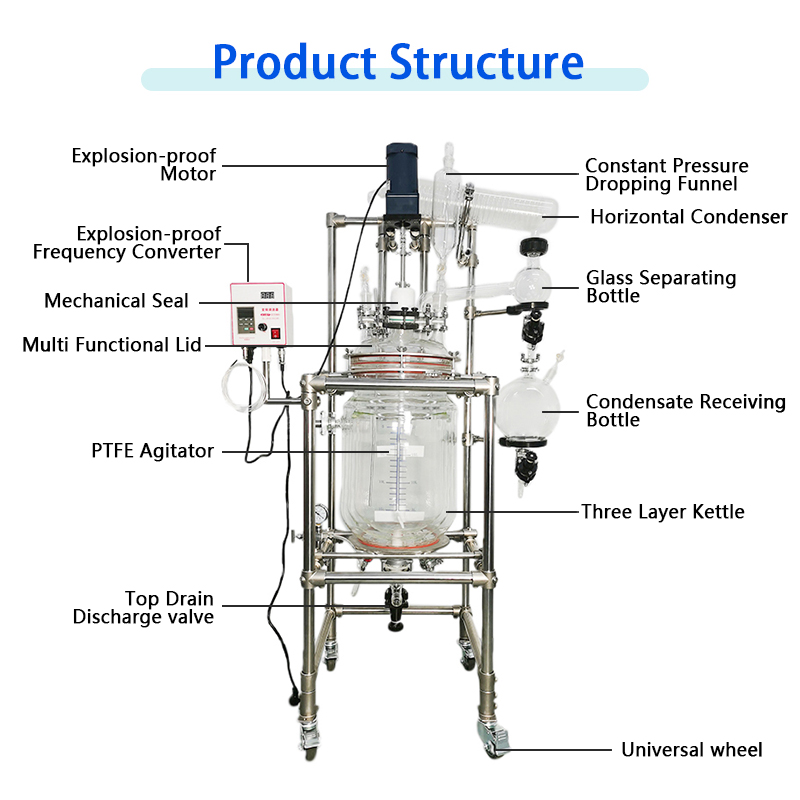

7 Good Reasons To Choose LABOAO 10-100L Three Layer Jacketed Glass Reactor
-
Explosion-proof: explosion-proof motor and explosion-proof frequency converter
-
Mechanical seal: The internal mechanical seal is a combination of moving and static rings
-
Stainless steel clamp: the kettle body and the kettle cover are connected by a stainless steel clamp for easy disassembly
-
Three-layer kettle body: GG17 high borosilicate glass is used, which has good chemical and physical properties
-
High temperature 250℃ to low temperature -80℃ in large temperature range
-
Circulating medium import and export: the interface adopts the screw type
-
Top-up oblique discharge method, the valve core is made of PTFE, no pollution, no corrosion
