DESCRIPTION

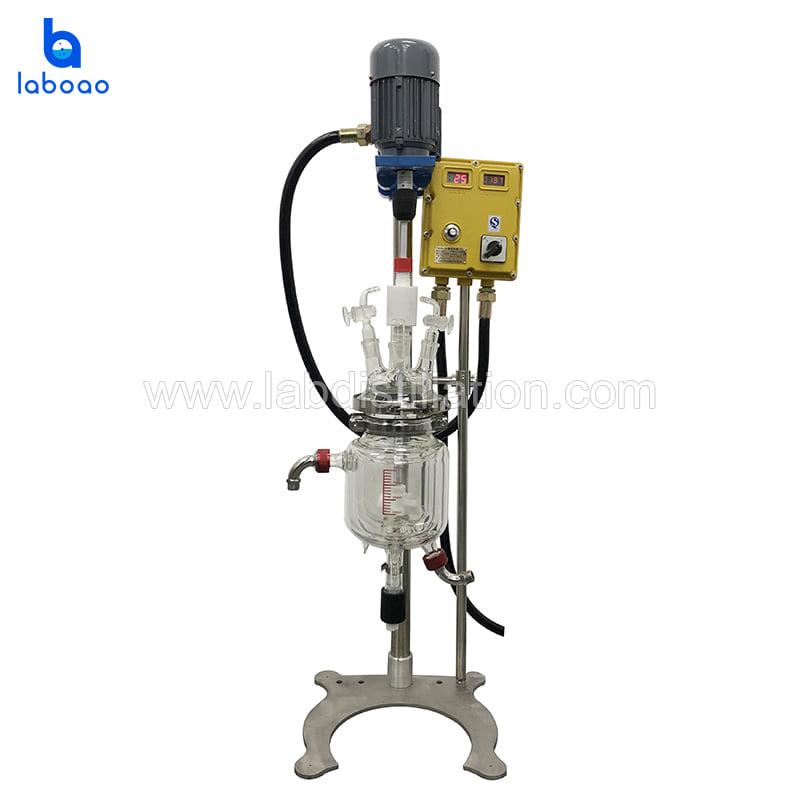

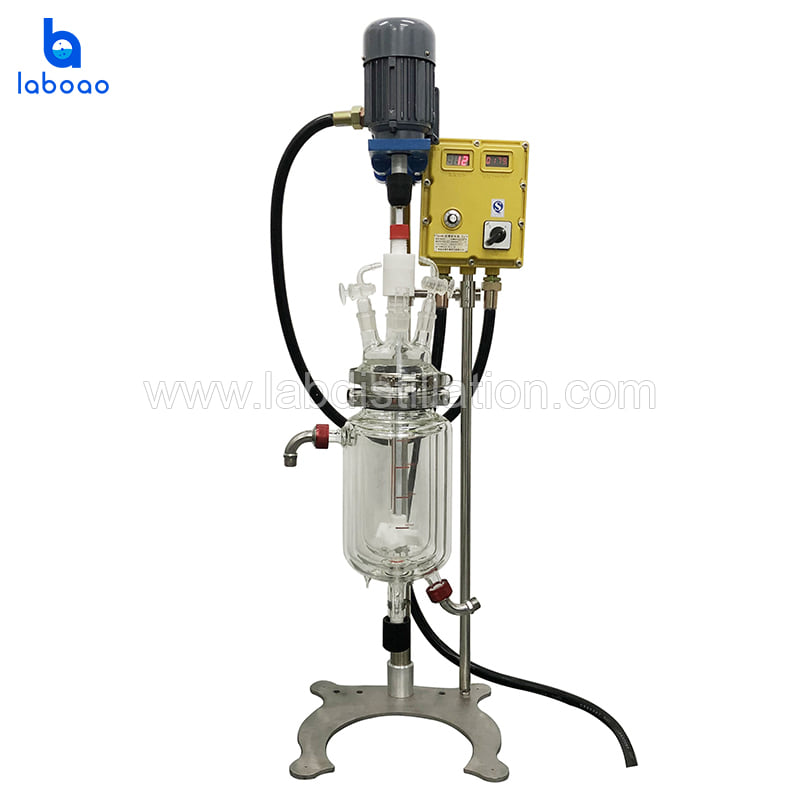

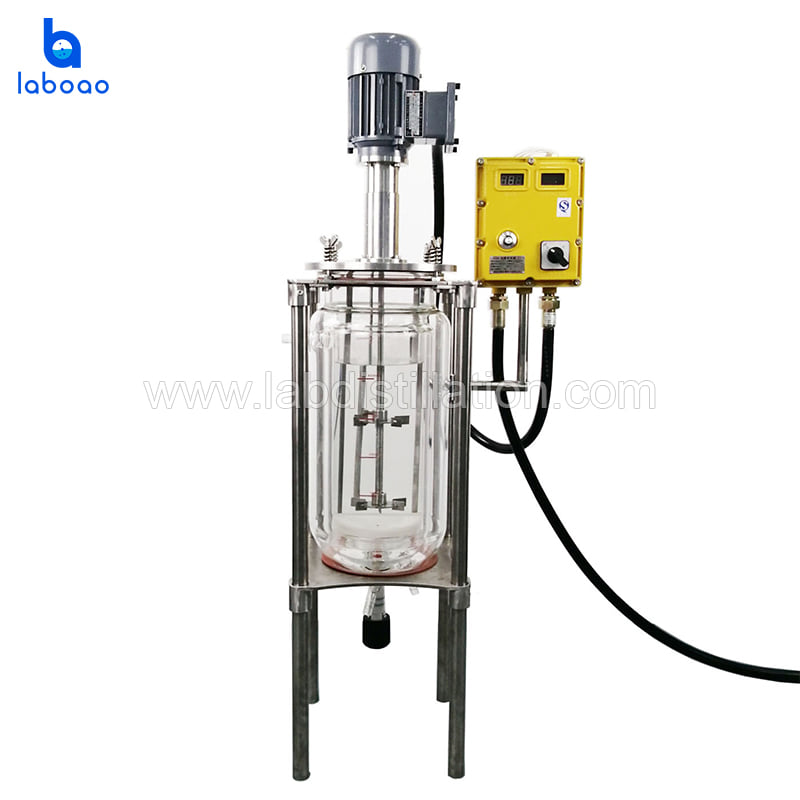

1-5L Explosion Proof Three Layer Jacketed Glass Reactor
LGR-T Series

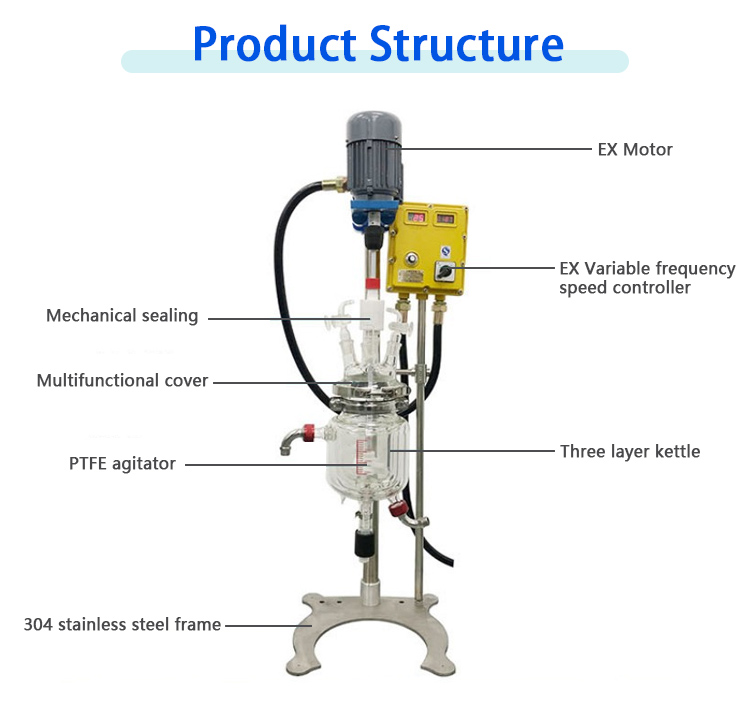

The body of the three-layer glass reactor is composed of two sets of interlayers composed of three layers of glass, which can provide a stirring function and control the evaporation and reflux of the reaction solution.
Download
SPECIFICATIONS
Model | LGR-1T | LGR-2T | LGR-3T | LGR-5T |
Volume | 1L | 2L | 3L | 5L |
Outer diameter of kettle body | 150 | 180 | 200 | 230 |
Outer diameter of kettle mouth | 150 | 150 | 150 | 180 |
Motor Power | 90W | 60w | ||
Rotating speed | 0-400rpm | |||

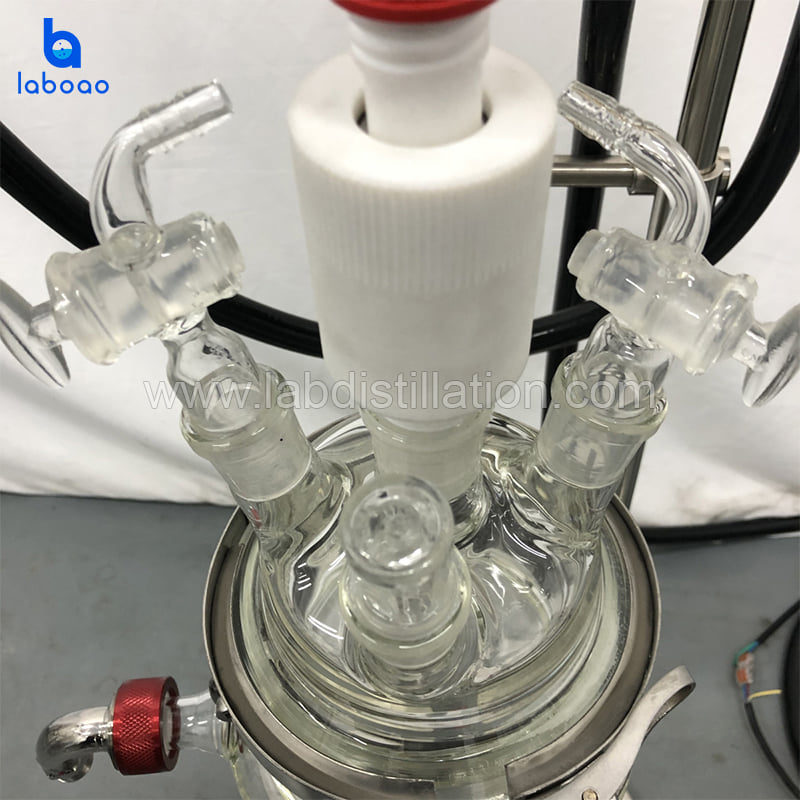

Reaction bottle cover port | 5 ports | |||
Body material | Three-layer glass, high borosilicate glass GG17, expansion coefficient 3.3 | |||

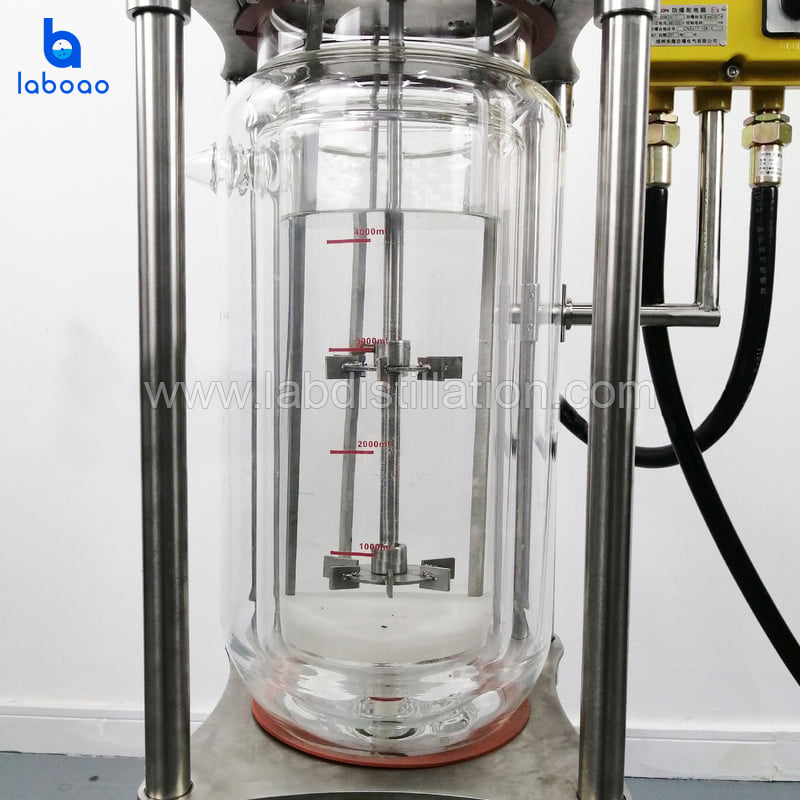

PTFE stirring paddle | Single-layer push | |||
Sealing method | Self-lubricating mechanical seal to prevent wear debris from falling off | |||
Vacuum | -0.098Mpa | |||
Reaction temperature of kettle body | -90~250℃ | |||
Ambient temperature | 5~40℃ | |||
Power | 220V 50HZ | |||
7 Good Reasons To Choose LABOAO 1-5L Explosion Proof Three Layer Jacketed Glass Reactor
-

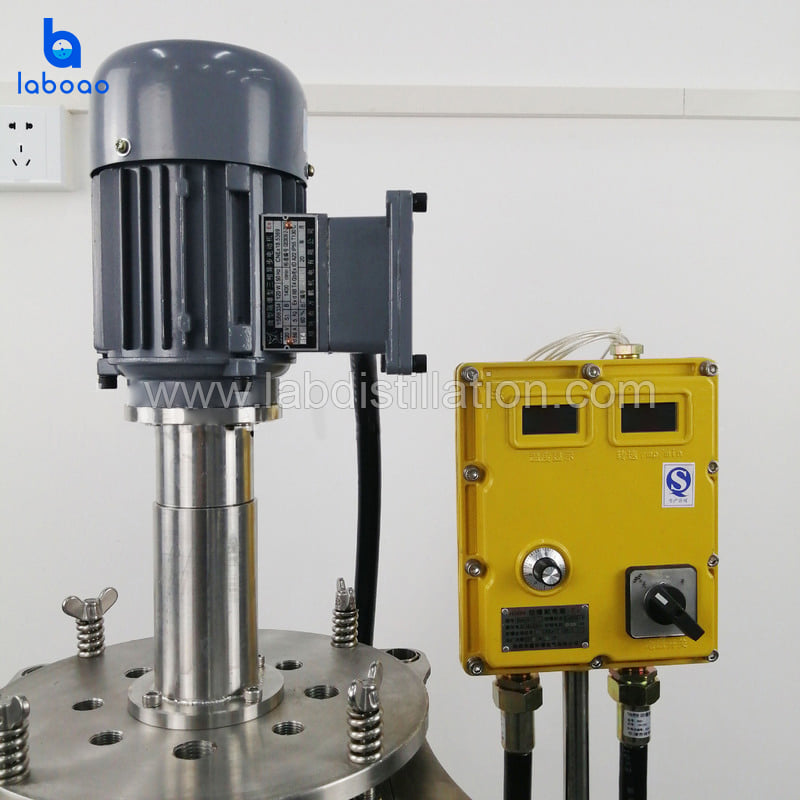

Explosion-proof: explosion-proof motor and explosion-proof frequency converter
-
Mechanical seal: The internal mechanical seal is a combination of moving and static rings
-
Stainless steel clamp: the kettle body and the kettle cover are connected by a stainless steel clamp for easy disassembly
-
ree-layer kettle body: GG17 high borosilicate glass is used, which has good chemical and physical properties
-
High temperature 250℃ to low temperature -80℃ in large temperature range
-
Circulating medium import and export
-

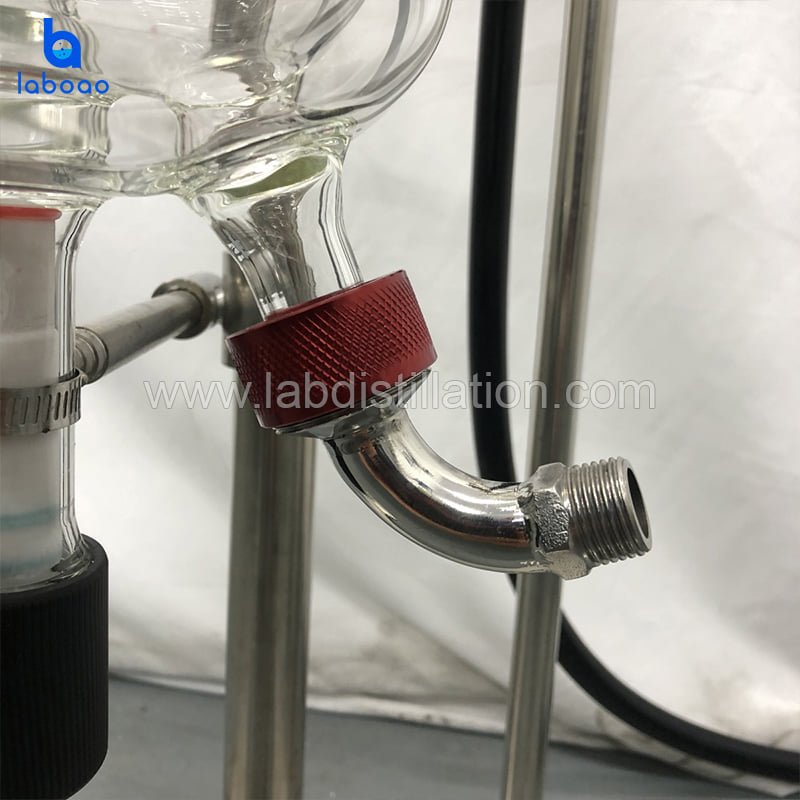

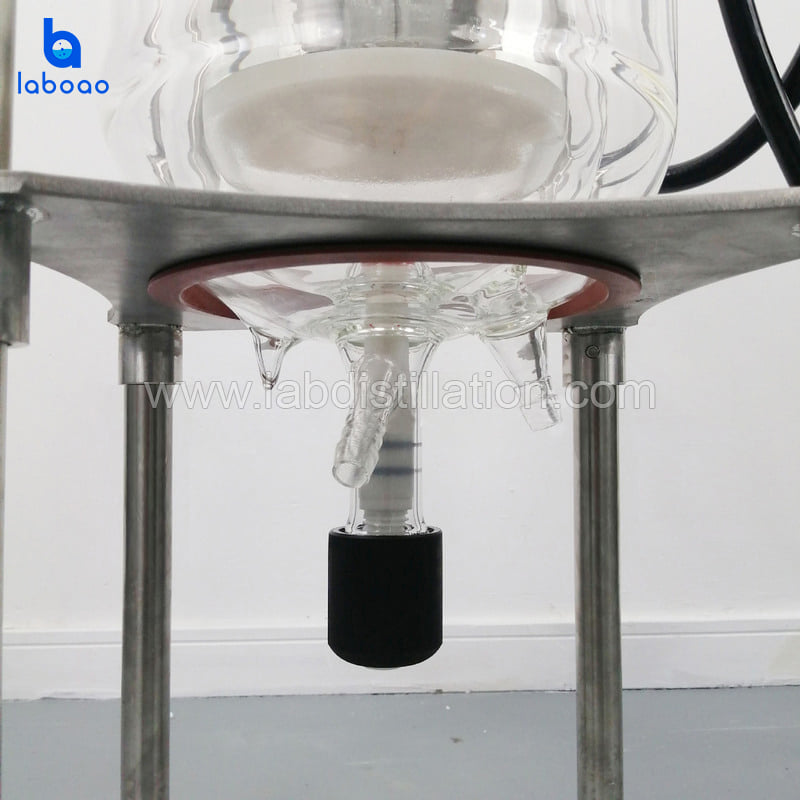

op-up oblique discharge method, the valve core is made of PTFE, no pollution, no corrosion
