Large Capacity Single Effect Falling Film Evaporator Industrial Scale

FFE-500

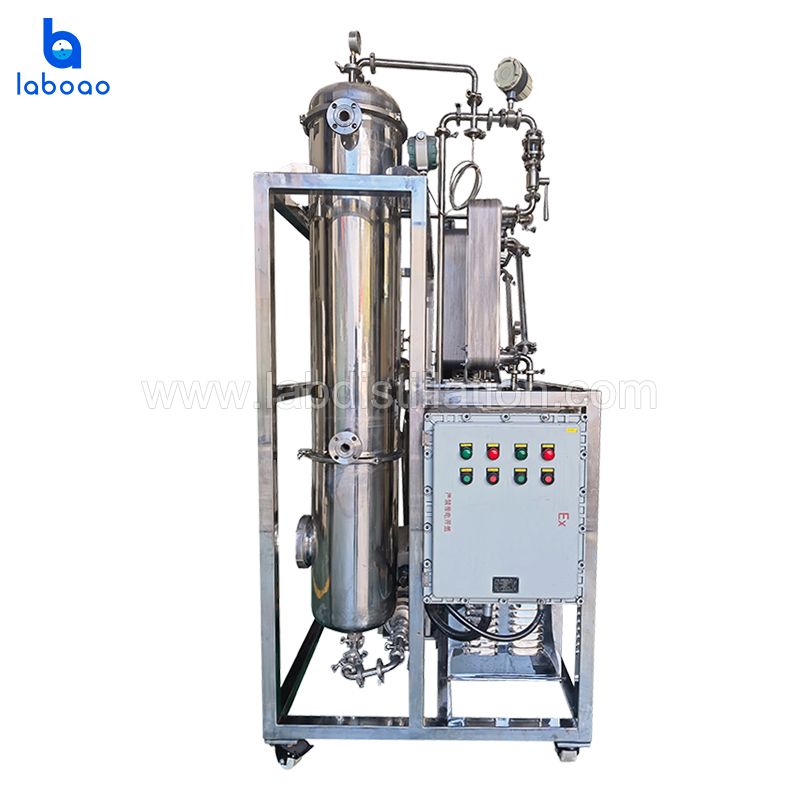

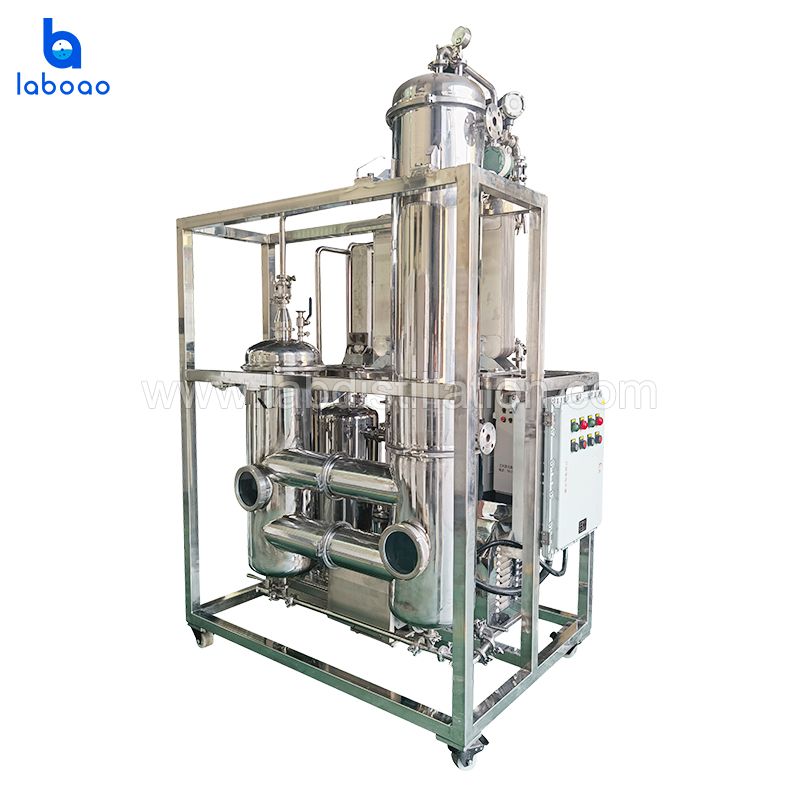

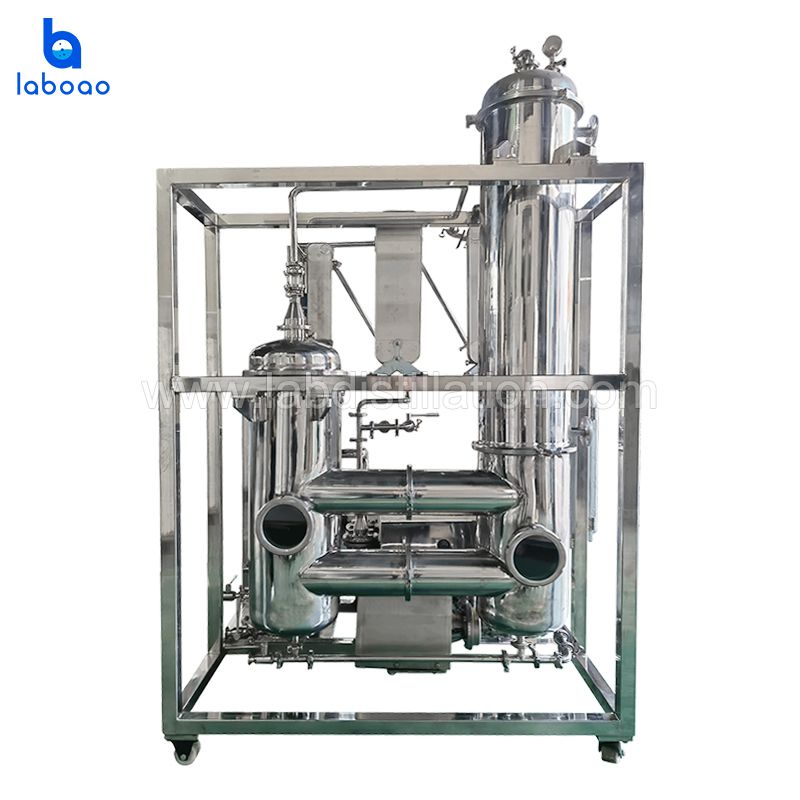

The FFE-500 falling film evaporator include body,thermal conductivity oil furnace, alcohol tank and accessories. The FFE falling film evaporator is used in CBD extraction to recover the ethanol.It is suitable for evaporation and concentration of all kinds of materials, especially for materials that are not easy to scale. Easy to evaporate or have strong heat sensitivity. Our FFE falling film evaporator maintains a high evaporation rate,which significantly increases the throughput of crude oil production. The Alcohol tank is made of S304/S316 Stainless steel,which has good corrosion resistance and meets the requirements of GMP.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DETAILS

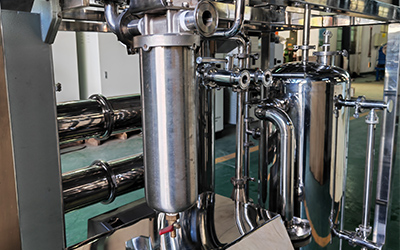

Large Capacity Single Effect Falling Film Evaporator Industrial Scale detail - Feeding port with filtration system, which can do primary filtration when feeding sample.
1. Feeding port with filtration system, which can do primary filtration when feeding sample.

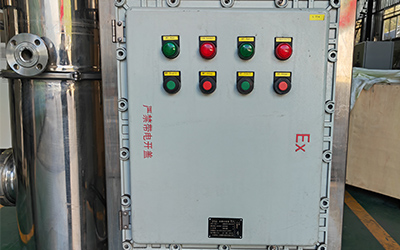

Large Capacity Single Effect Falling Film Evaporator Industrial Scale detail - Explosion proof control box. One button starts and stop. With lamp light alarm for running and fault.
2. Explosion proof control box. One button starts and stop. With lamp light alarm for running and fault.

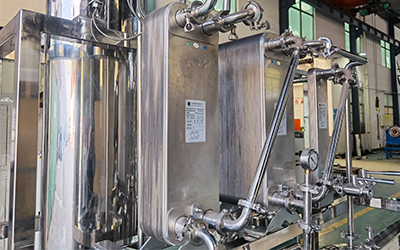

Large Capacity Single Effect Falling Film Evaporator Industrial Scale detail - Stainless steel welded heat exchanger, improve heat transfer efficiency, with high condensation efficiency.
3. Stainless steel welded heat exchanger, improve heat transfer efficiency, with high condensation efficiency.

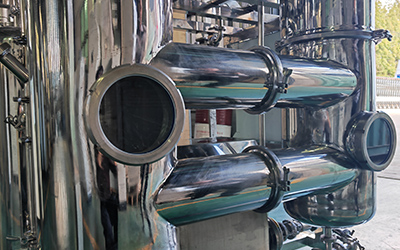

Large Capacity Single Effect Falling Film Evaporator Industrial Scale detail - Large sight glass window, you can monitor the evaporation process at any time.
4. Large sight glass window, you can monitor the evaporation process at any time.

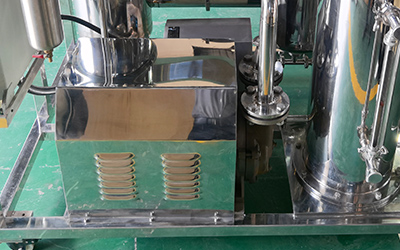

Large Capacity Single Effect Falling Film Evaporator Industrial Scale detail - Explosion proof circulating pump and water circulating vacuum pump are both covered by stainless steel, which is more safety and nice shape.
5. Explosion proof circulating pump and water circulating vacuum pump are both covered by stainless steel, which is more safety and nice shape.

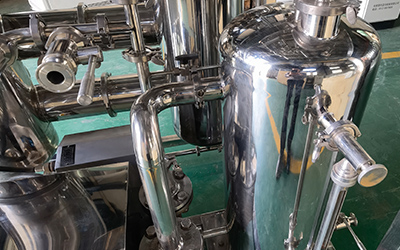

Large Capacity Single Effect Falling Film Evaporator Industrial Scale detail - Transfer tank connect with cryogenic chiller for ethanol recovery. Including liquid level gauge and filter, which can see the collecting liquid level and do filtration again before recovery.
6. Transfer tank connect with cryogenic chiller for ethanol recovery. Including liquid level gauge and filter, which can see the collecting liquid level and do filtration again before recovery.

SPECIFICATIONS

Model

Description

Size(mm)

Weight(kg)

FFE-500

Evaporation capacity

500L/H



1600*1100*2600

1200

Working power

Heating Power

96 KW


Cooling Power

13.6 KW


Pump Power

11 KW


Connectors
  (Quick Connectors)

Inlet Joint

38 Φ

50.5 Clamp

Solvent Outlet

38 Φ

50.5 Clamp

Product Outlet

38 Φ

50.5 Clamp

Vacuum Outlet

38 Φ

50.5 Clamp

Chiller Inlet

DN65 Outer wire

Chiller Outlet

DN65 Outer wire

Heater Inlet

DN25 Flange

Heater Outlet

DN25 Flange
