Lab Scale Falling Film Evaporator For Ethanol Recovery

FFE-250
The FFE-250 falling film evaporator include body,thermal conductivity oil furnace, alcohol tank and accessories. The FFE falling film evaporator is used in CBD extraction to recover the ethanol.It is suitable for evaporation and concentration of all kinds of materials, especially for materials that are not easy to scale. Easy to evaporate or have strong heat sensitivity. Our FFE falling film evaporator maintains a high evaporation rate,which significantly increases the throughput of crude oil production. The Alcohol tank is made of S304/S316 Stainless steel,which has good corrosion resistance and meets the requirements of GMP.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DETAILS

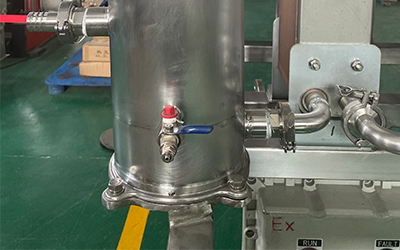

Lab Scale Falling Film Evaporator For Ethanol Recovery detail - Feeding port with filtration system, which can do primary filtration when feeding sample.
1. Feeding port with filtration system, which can do primary filtration when feeding sample.

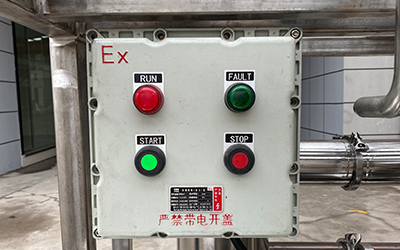

Lab Scale Falling Film Evaporator For Ethanol Recovery detail - Explosion proof control box. One button starts and stop. With lamp light alarm for running and fault.
2. Explosion proof control box. One button starts and stop. With lamp light alarm for running and fault.

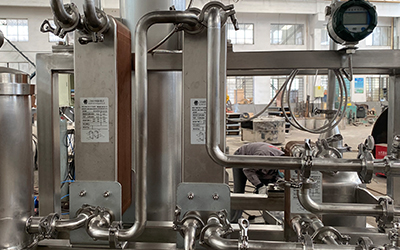

Lab Scale Falling Film Evaporator For Ethanol Recovery detail - High condensation efficiency heat exchanger, improve heat transfer efficiency.
3. High condensation efficiency heat exchanger, improve heat transfer efficiency.

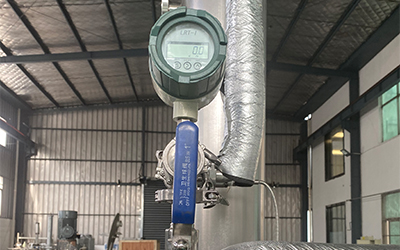

Lab Scale Falling Film Evaporator For Ethanol Recovery detail - Flow glass sight and flow meter, can observe the sample process condition at any time.
4. Flow glass sight and flow meter, can observe the sample process condition at any time.

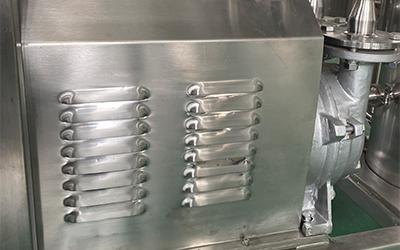

Lab Scale Falling Film Evaporator For Ethanol Recovery detail - Explosion proof circulating pump and water circulating vacuum pump are both covered by stainless steel, which is more safety and nice shape.
5. Explosion proof circulating pump and water circulating vacuum pump are both covered by stainless steel, which is more safety and nice shape.

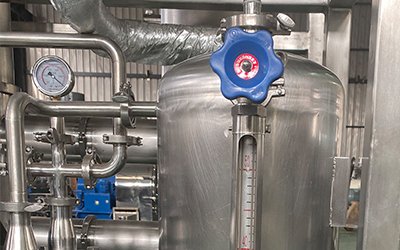

Lab Scale Falling Film Evaporator For Ethanol Recovery detail - Transfer tank connect with cryogenic chiller for ethanol recovery. Including liquid level gauge and filter, which can see the collecting liquid level and do filtration again before recovery.
6. Transfer tank connect with cryogenic chiller for ethanol recovery. Including liquid level gauge and filter, which can see the collecting liquid level and do filtration again before recovery.

SPECIFICATIONS

Model

Description

Size(mm)

Weight(kg)

FFE-250

Evaporation capacity

250L/H



1200*900*3000

600

Working power

Heating Power

48 KW


Cooling Power

11.05 KW


Pump Power

5.5 KW


Connectors
  (Quick Connectors)

Inlet Joint

25 Φ

50.5 Clamp

Solvent Outlet

25 Φ

50.5 Clamp

Product Outlet

25 Φ

50.5 Clamp

Vacuum Outlet

25 Φ

50.5 Clamp

Chiller Inlet

25 Φ

50.5 Clamp

Chiller Outlet

25 Φ

50.5 Clamp

Heater Inlet

DN25 Flange

Heater Outlet

DN25 Flange
