DESCRIPTION
50L Rotary Evaporator
LRE-5002
Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
Download
SPECIFICATIONS
Specification | Model | LRE-5002 |
Glass material | GG-17 | |
Frame material | Stainless steel | |
Pot shell Material | Spray anti-corrosion 710*620*700mm | |
Pot bravery material | Stainless steel 550*320mm | |
Plate size | 804*574mm | |
Evaporator flask | 50L ￠125Flange port | |
Collect flask | 20L ￠60Flange port | |
Vacuum degree | 0.098Mpa | |
Rotary power | 180W 220V/50Hz | |
Rotary speed | 0-110rpm | |
Heating power | 8KW 380V/50Hz | |
Heating temp.range | 0-400℃ | |
Temp. accuracy | ±1℃ | |
Lifting disctance | 180mm | |
Dimension(mm*mm*mm) | 1520*620*2470 | |
Packing size(mm*mm*mm) | 1480*380*480 1180*830*710 790*750*850 1.46CBM | |
Packing weight（KG） | (47+76+56)179 | |
Configuration list | Speed mode | Electronic stepless adjustable speed |
Rotor speed display | digital display | |
Temp. display | K type sensor with digital display | |
Temp. control | Intelligent temp.control | |
Sealing method | PTFE sealing | |
Condenser | Vertical efficiency three reflux condenser，Main condenser160*840，Secondary condenser160*530 | |
Continuous | non-return valve control | |
Lifting mode | Bath Manual lifting | |
Temp. | 19#Standard port | |
Continuous feed | 40#Standard port feeding valve | |
Discharge valve | PTFE discharge valve，￠60Flange port | |
Vacuum display | Vacuum gauge | |
Optional | Lifting mode | Automatic electric lifting |
Collecting device | Double collect bottle | |
Anti-explosion | Explosion-proof motor EX180W、Explosion-proof inverter | |
Frame material optional | Spray or spray PTFE | |
Bath material | Fully304Stainless steel |
6 Good Reasons To Choose LABOAO 50L Rotary Evaporator
-
Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree.
-
Uses the main and secondary efficient double condenser.
-
Rotating bottle with nut connection, it is easy to load and unload.
-
There is tap valve under the collection bottle mouth, recycled solvent is very fast.
-

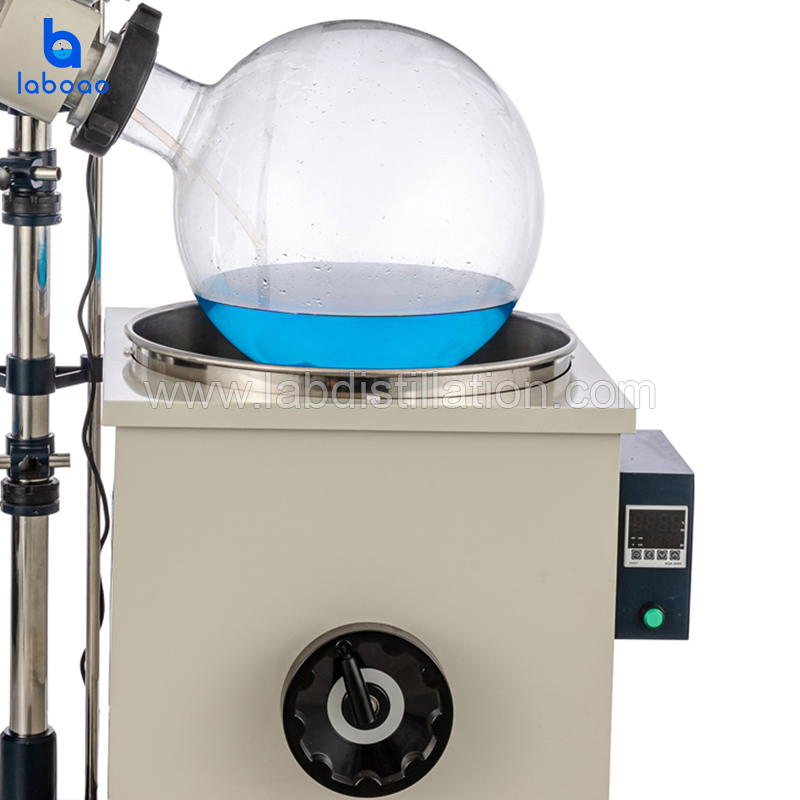

Water bath with digital and continuous temperature controlling.
-
The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass.
