DESCRIPTION

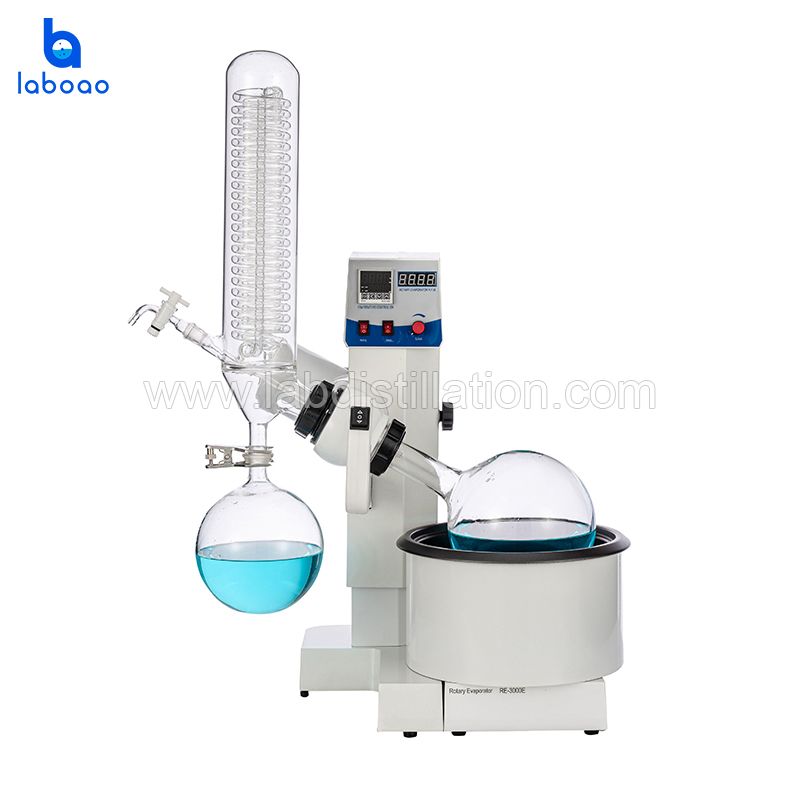

3L Rotary Evaporator With Dual Digital Display
LRE-3000B
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.
Download
SPECIFICATIONS
Specification | Model | LRE-3000B |
Glass material | GG-17 | |
Frame material | Aluminium alloy | |
Pot bravery material | Aluminum alloy + Teflon composite pot, fully enclosed heating 250*130mm | |
Evaporator flask | 3L ￠50 flange port | |
Collect flask | 2L 35# ball mill port | |
Rotary power | 40W | |
Rotary speed | 0-180rpm | |
Heating power | 1.5KW | |
Heating temp.range | 0-99℃ | |
Temp. accuracy | ±1℃ | |
Lifting power | 15W | |
Lifting disctance | 120mm | |
Voltage | 220V/50Hz | |
Dimension(mm*mm*mm) | 660*420*830 | |
Packing size(mm*mm*mm) | 630*560*540 0.19CBM | |
Packing weight（KG） | 30 | |
Configuration list | Speed mode | Digital display |
Rotor speed display mode | Digital display | |
Temp. display | PT100 sensor with digital display | |
Temp. control | Intelligent temp. control | |
Sealing method | Teflon + fluoride glue double seal ring | |
Lifting mode | Host automatic lifting | |
Condenser | vertical condenser 100*510mm | |
Continuous feed | 19# standard port feeding valve | |
Optional | Anti-Splash device | Transparent cover for heating bath |
6 Good Reasons To Choose LABOAO 3L Rotary Evaporator With Dual Digital Display
-

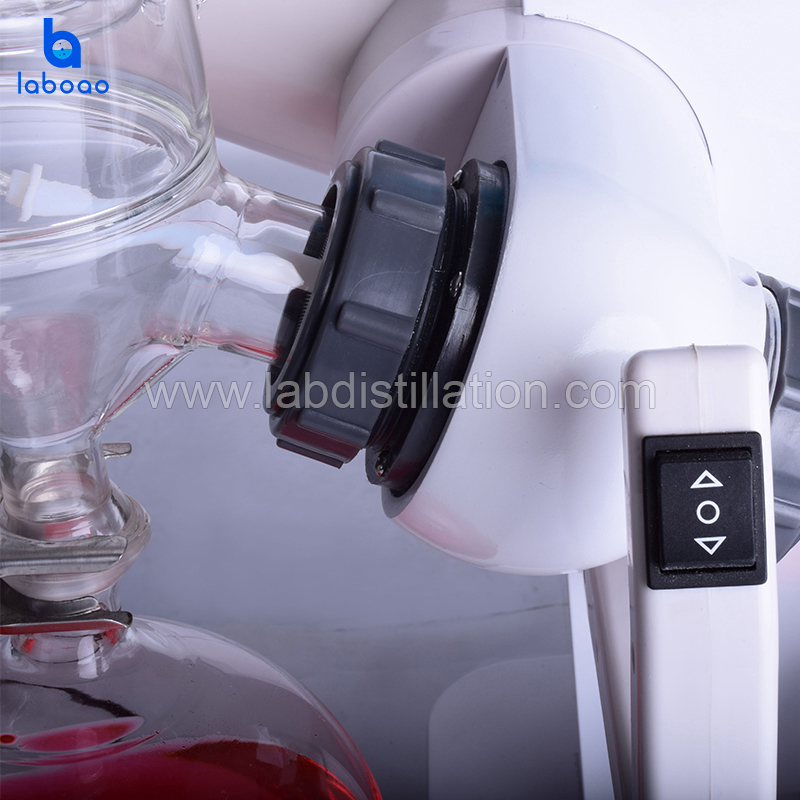

The move up and down lift system adopts motor revolved lifting structure.
-
The condenser adopted two kinds of optional structure , the vertical condenser saves space.
-
The axis of rotation use high temperature high borosilicate glass. Sealing parts use teflon + teflon two-way sealing.
-
It is equipped with heating trough, and built-in resistance wire heater, heating temperature is from room temperature to 99 ℃.
-
Equipped with temperature indicator, intelligent temperature controlling, digital display, temperature control implemented by PT100 sensors.
-
B type, E type is equipped with speed display, can accurately display rotation speed, E type is LCD screens.
