20L Customized Explosion Proof Rotary Evaporator
LRE-20C2
Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
Download
DESCRIPTION
Rotary evaporator is the use of stepless speed control glass rotating bottle constant speed rotation, the material in the bottle wall to form a large area uniform film, and then by the intelligent constant temperature water bath on the rotating bottle of uniform heating, vacuum conditions, high-speed evaporation, Efficient glass condenser cooling, recovery in the collection bottle.
1. Explosion proof motor and controller 2. With vacuum controller, can control and display vacuum degree. 3. Double condensers and dual receiving flasks. 4. Can display vapor temperature. 5. Time function, can setting time. 6. Emergency one-stop button for protection. 7. LCD screen display. NO. Model LRE-20C2 1 Rotary flask volume 20L 2 Dual main condenser and Auxiliary condenser parallel manner, Chilled 3 Dual collection flask 2 * 10 liter Disconnecting Valves at top/Bottom, PTFE valve 4 Vacuum controller Display and control vacuum 5 Heating water bath Motorized lifting RT-200 C Measurement, Accuracy ±1 C 3*2.1kw=6.3 kW Display temperature 6 Rotation 5-150 rpm, Soft Start ab 0.3kw 7 Explosion proof screen LCD screen Display for speed, temperature, vacuum 8 Motor and controller Explosion proof type 9 Voltage 220V 50HZ (customized)FEATURES
SPECIFICATIONS
7 Good Reasons To Choose LABOAO 20L Customized Explosion Proof Rotary Evaporator
-
Explosion proof motor and controller.
-
With vacuum controller, can control and display vacuum degree.
-

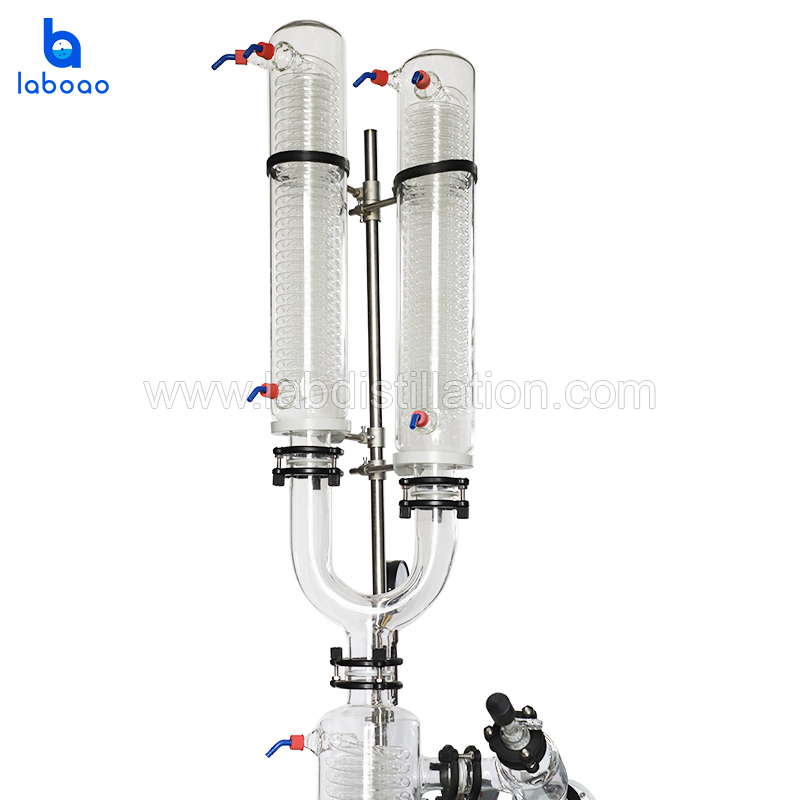

Double condensers and dual receiving flasks.
-
Can display vapor temperature.
-
Time function, can setting time.
-
Emergency one-stop button for protection.
-

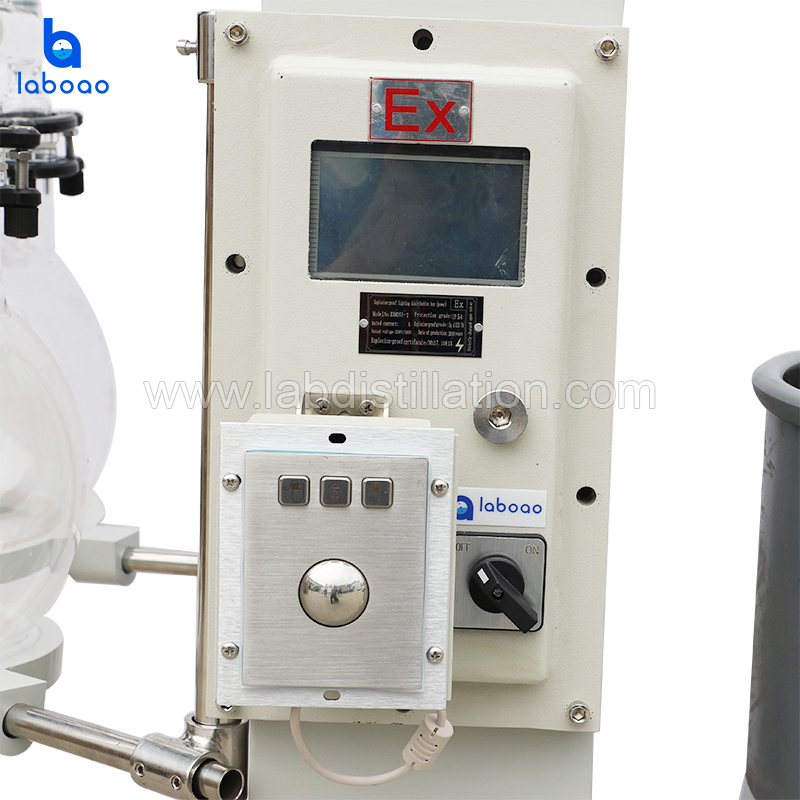

LCD screen display.
