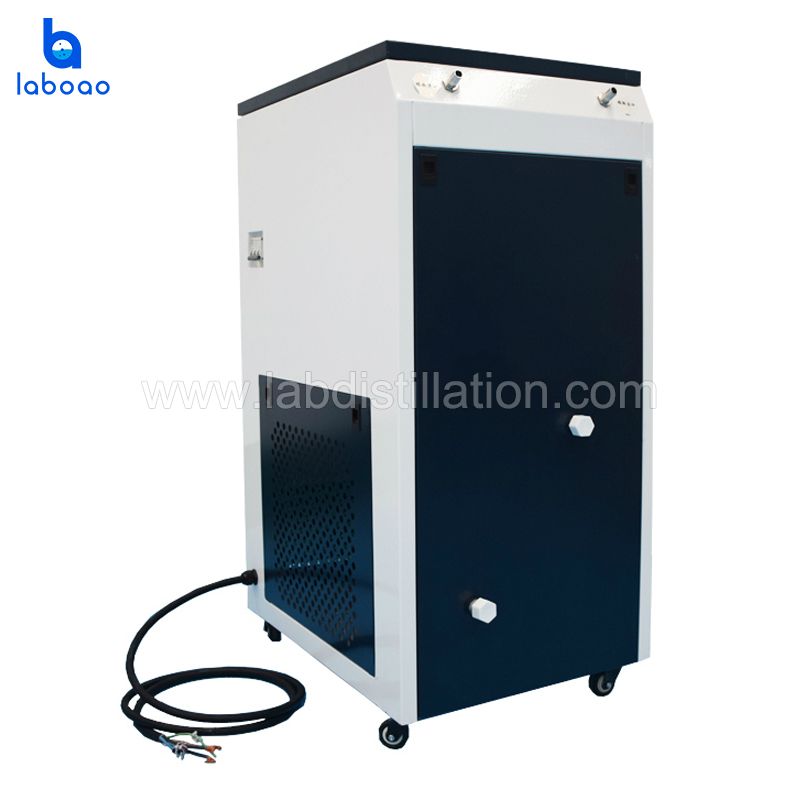

100L Closed Circulation Thermostat

LMGY-100
Closed high-temperature circulator LMGY-100 adopts electric heating and heating liquid circulation equipment, high-temperature circulating liquid, and is widely used in the heating of reactor devices in the pharmaceutical, chemical, petrochemical and other industries.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

The closed high-temperature circulator is the thermal heating circulator, which mainly adopts the heating method of direct heat conduction to work. Since the heating element is directly placed in the plate groove, the cold water/oil flowing through can directly flow through the surface of the heating element. Heating, because of the small size of the plate tank, the water/oil in the tank can be heated quickly, so the circulating water/oil has a higher temperature. The high temperature circulator can provide heat sources for various heating devices and cannot be used alone.

FEATURES

1. The equipment has an over-temperature alarm protection function.

2. The circulating pump can output the heat transfer fluid inside the machine to heat the equipment outside the machine.

3. The energized heating is produced by a professional manufacturer to ensure reliability and service life.

4. The equipment has an exhaust valve to facilitate system filling. It is forbidden to open the exhaust valve during work.

5. The circulation system is made of stainless steel, which is anti-corrosion, anti-rust and anti-high temperature liquid pollution. 6. This machine adopts PID control technology, with high temperature control accuracy, convenient operation and simple use.

7. The refrigerant circulation system adopts a closed system, which greatly improves the service life of the heat transfer oil.

8. The product is easy to use and can work continuously.

SPECIFICATIONS

Model

LMGY-100

Heating temperature

200

Voltage frequency

220V/50HZ(Can be customized)

Operating temperature range

Room temperature200

Ambient temperature

540

Filling amount of bath liquid

35L

Heating power

9KW

Overall size(L*W*H)

720× 520×1130mm

Optimal environmental humidity

≤60%

7 Good Reasons To Choose LABOAO 100L Closed Circulation Thermostat
