LSMD Series
Wiped Film/Molecular distillation is the best thermal separation method for heat-sensitive material because it is the gentlest type, causing the least amount of thermal degradation of product. Our wiped film evaporation and distillation system are widely used for plant oil, garlic oil, cod liver oil and chemical and pharmaceutical industries. Shorter residence time, lower separation temperature, capability of continuous and unattended operation makes wiped film molecular (short path) evaporation and distillation system standing out.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DETAILS

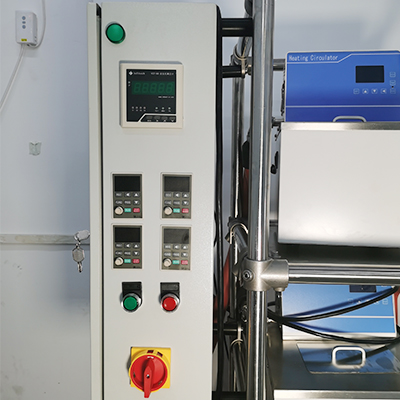

Stainless Steel Wiped Film Molecular Distillation detail - The control box controls the oil pump, the main evaporation chamber, automatic feeding, automatic discharging, imported materials, durable
1. The control box controls the oil pump, the main evaporation chamber, automatic feeding, automatic discharging, imported materials, durable

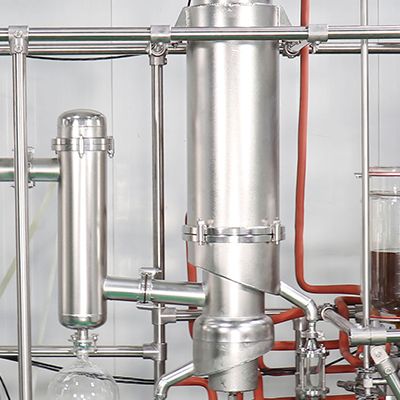

Stainless Steel Wiped Film Molecular Distillation detail - Main evaporator, SUS material, better thermal conductivity, good evaporation effect and not easy damage
2. Main evaporator, SUS material, better thermal conductivity, good evaporation effect and not easy damage

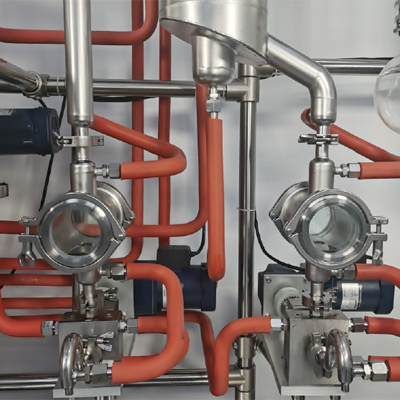

Stainless Steel Wiped Film Molecular Distillation detail - The use of gear pumps to drive automatic feeding and automatic discharging, for small pilot-level molecular distillation, to increase productivity
3. The use of gear pumps to drive automatic feeding and automatic discharging, for small pilot-level molecular distillation, to increase productivity

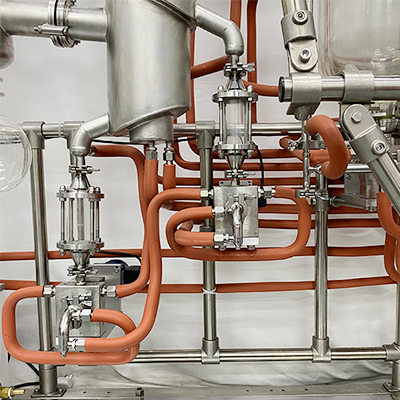

Stainless Steel Wiped Film Molecular Distillation detail - Automatic light component and heavy component discharging and external condenser + cold trap with window for easy observation
4. Automatic light component and heavy component discharging and external condenser + cold trap with window for easy observation

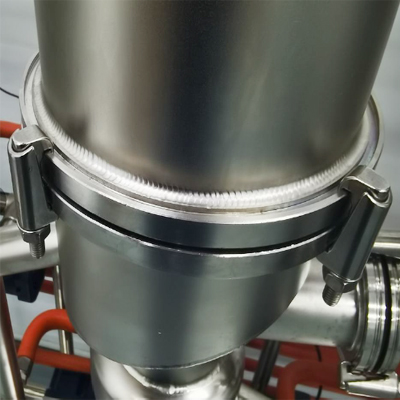

Stainless Steel Wiped Film Molecular Distillation detail - Using swing welding process, fish-scale welding point, in line with Japan and Germany welding process
5. Using swing welding process, fish-scale welding point, in line with Japan and Germany welding process

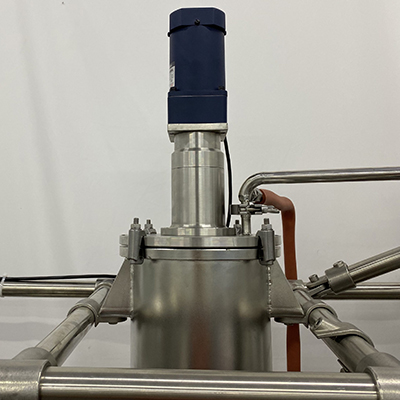

Stainless Steel Wiped Film Molecular Distillation detail - Magnetic seal, high vacuum special seal, the ultimate vacuum can be within 1Pa(Conventional glass reactors use mechanical seals, which cannot reach the ultimate vacuum).
6. Magnetic seal, high vacuum special seal, the ultimate vacuum can be within 1Pa(Conventional glass reactors use mechanical seals, which cannot reach the ultimate vacuum).

SPECIFICATIONS

Model

LSMD-0.1

LSMD-0.15

LSMD-0.25

LSMD-0.35

LSMD-0.5

LSMD-1

LSMD-1.5

LSMD-2

LSMD-3

LSMD-5

Condenser   area (m2)

0.17

0.3

0.4

0.7

1.7

2.7

3.5

4.9

6.5

8

Effective   evaporation area (m2)

0.1

0.15

0.25

0.35

0.5

1

1.5

2

3

5

Feeding rate   (LH)

5~12

6~15

10~25

15~30

20~60

50~120

60~180

100~200

100 ~300

200 ~500

RPM (r/min)

30~350

Stainless   steel material

304/316

Feeding   method

Gear pump   automatic continuous feeding

Discharge   method

Gear pump   automatic continuous discharge

Work   temperature

Within 350

Voltage

200V 50Hz (can   be customized)
