SPECIFICATIONS
Model | LSMD-0.1 | LSMD-0.15 | LSMD-0.25 | LSMD-0.35 | LSMD-0.5 | LSMD-1 | LSMD-1.5 | LSMD-2 | LSMD-3 | LSMD-5 |

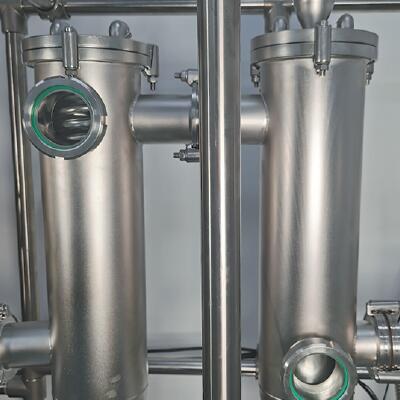

Condenser area (㎡) | 0.17 | 0.3 | 0.4 | 0.7 | 1.7 | 2.7 | 3.5 | 4.9 | 6.5 | 8 |
Effective evaporation area (㎡) | 0.1 | 0.15 | 0.25 | 0.35 | 0.5 | 1 | 1.5 | 2 | 3 | 5 |
Feeding rate (LH) | 5~12 | 6~15 | 10~25 | 15~30 | 20~60 | 50~120 | 60~180 | 100~200 | 100 ~300 | 200 ~500 |
RPM (r/min) | 30~350 | |||||||||
Stainless steel material | 304/316 | |||||||||

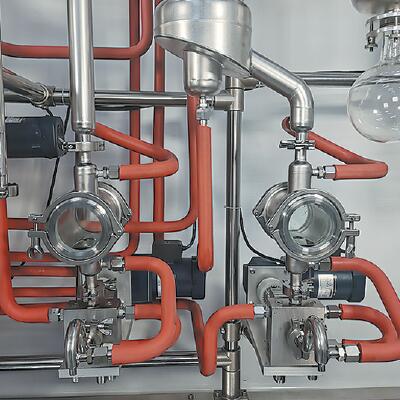

Feeding method | Gear pump automatic continuous feeding | |||||||||
Discharge method | Gear pump automatic continuous discharge | |||||||||
Work temperature | Within 350℃ | |||||||||
Voltage | 200V 50Hz (can be customized) | |||||||||
