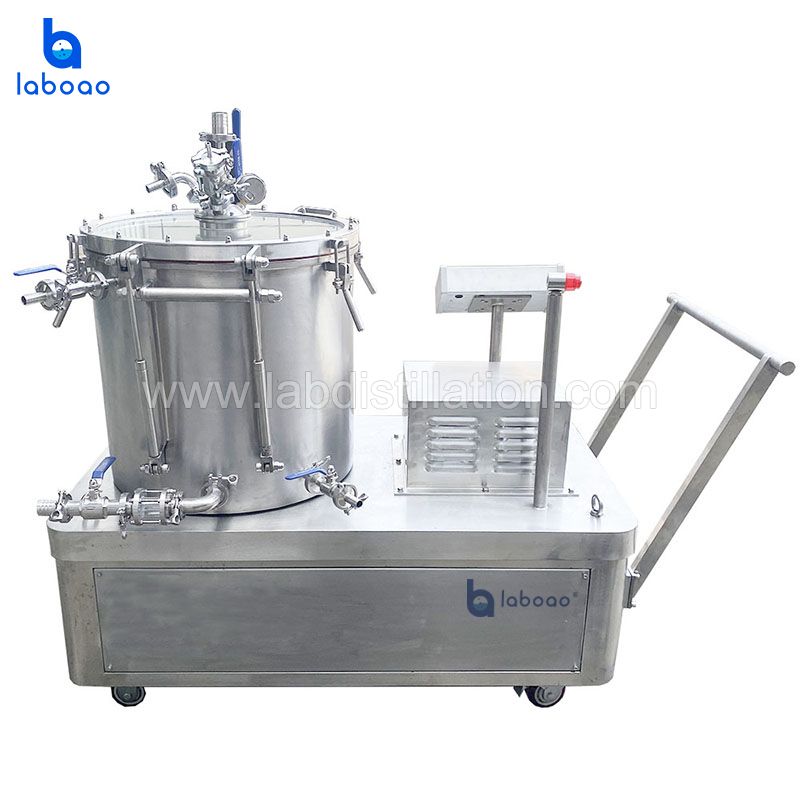

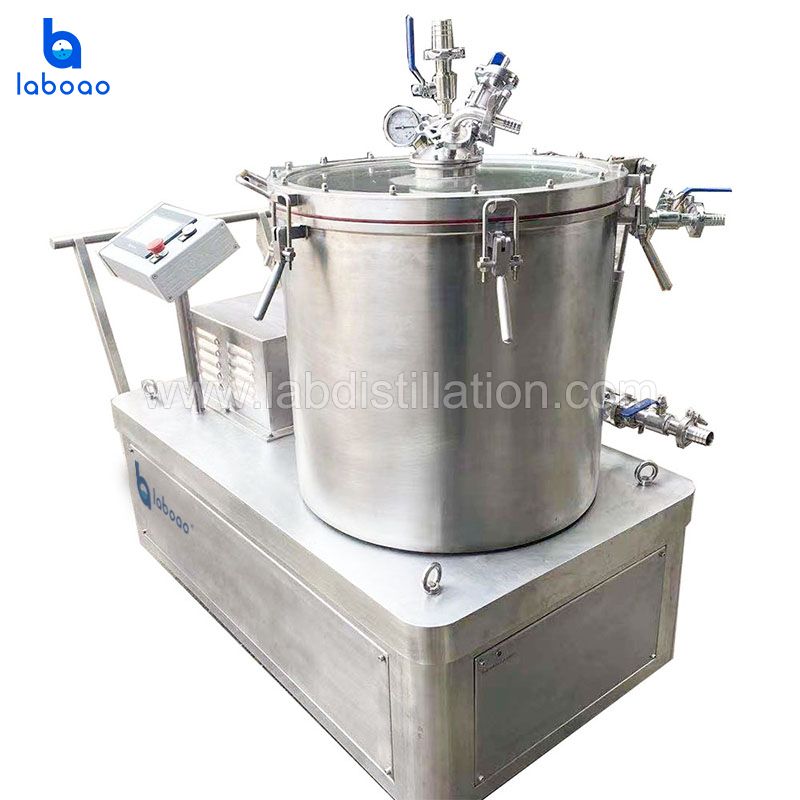

Ethanol Alcohol Extraction Centrifuge System
DETAILS
- 1. Control touch screen with PLC program and temperature measuring device, the real-time temperature can be displayed on the display.

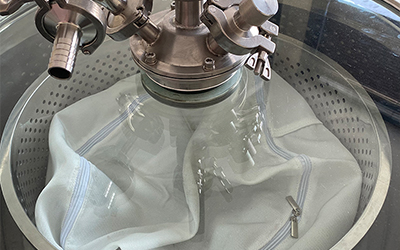

- 2. Fully transparent explosion-proof sight glass, the material handling process can be clearly seen during the extraction process.

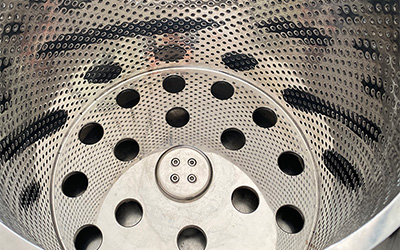

- 3. S316 stainless steel centrifugal perforated drum, the overall appearance is beautiful, and the material is dried more evenly

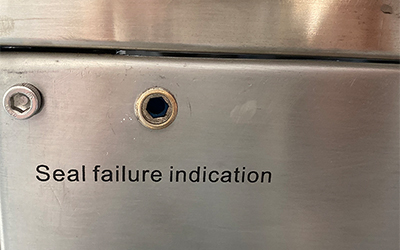

- 4. 4 layer silicone seal with leak indication, new structure for easy replacement.

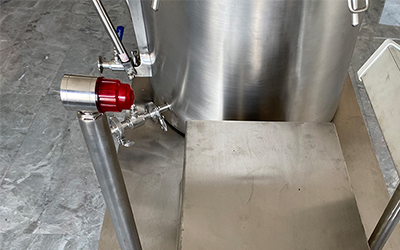

- 5. Alarm lamp device, higher safety. (fault warning, overload warning, etc.)

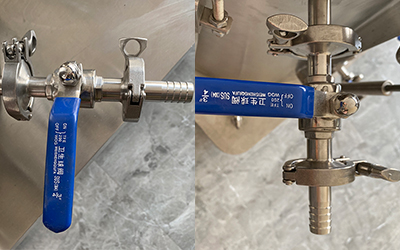

- 6. The liquid inlet, liquid outlet, pressure relief valve, coolant inlet and outlet, pressure gauge, etc. can all be quickly installed and disassembled.
DESCRIPTION
The LEC-E Series solvent extraction system possesses 97% alcohol removal from biomass and designed to maximize extraction yield. The Hamho LEC-E Series are made with food-grade stainless steel for smooth operation and maintaining exceptional performance. The uniquely designed flat-bottom drum to streamline production times and reduce your operation cost.
Compared with the traditional discharge centrifuge, The machine adopts a closed structure, and the seal is sealed with ptfe; the explosion-proof motor, frequency converter, PLC, touch screen and other devices can be used to achieve the sealed explosion-proof requirements.
1. Low temperature acceptable -50℃ to 50℃ 2. Model 15,30 and 50 are all transparent explosion-proof glass clamshell structure, clearly check the equipment. 3. Automatic extraction process, the program can set the drum positive and negative rotation speed, time and cycle times, and can switch to manual control. 4. Dehydration speed and time can be set. 5. Temperature display.Vacuum pressure display. 6. The bottom is provided with leakage indication port, if any leakage can be found in time. 7. Zipper filter bag for quick loading and unloading.Designed for solo operation. Model Capacity for dry material(lbs/batch*) Speed(r/min) Motor power(KW) Packed size(mm) Packed weight(KG) LEC-15E 15 2000 1.5 1100*600*1300 330 LEC-30E 30 1500 4 1600*800*1400 520 LEC-50E 50 1250 5.5 1800*1060*1450 850 LEC-100E 100 1100 7.5 1700*1400*1500 1350 LEC-150E 150 1000 11 1900*1550*1700 2000 LEC-200E 200 900 15 2300*1750*1950 2600FEATURES
SPECIFICATIONS
6 Good Reasons To Choose LABOAO Ethanol Alcohol Extraction Centrifuge System
-
Control touch screen with PLC program and temperature measuring device
-
Extraction system possesses 97% alcohol removal from biomass
-
Dehydration speed and time can be set.
-
emperature display.Vacuum pressure display.
-
The bottom is provided with leakage indication port, if any leakage can be found in time.
-
Low temperature acceptable -50℃ to 50℃
