Vacuum suction filter is a laboratory specific filter. It is equipped with microporous membranes with different pore sizes and then vacuum suction filtration. Derived products that are developed on the basis of the existing single-layer glass reactors are mainly used for liquid-liquid extraction and can also be used for room temperature reactions. After practical use, the performance is superior, and has been widely used.

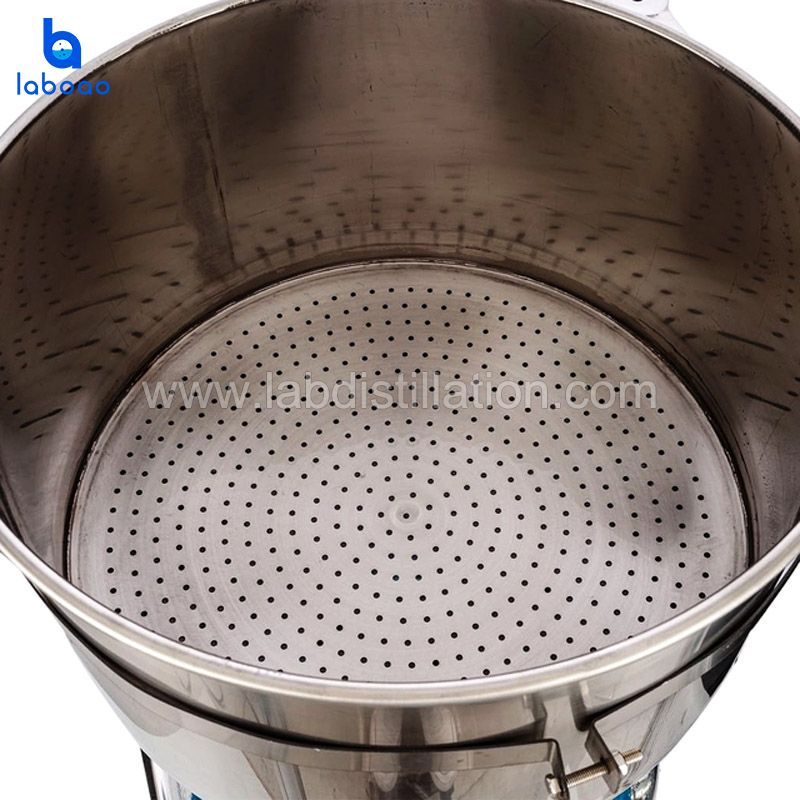

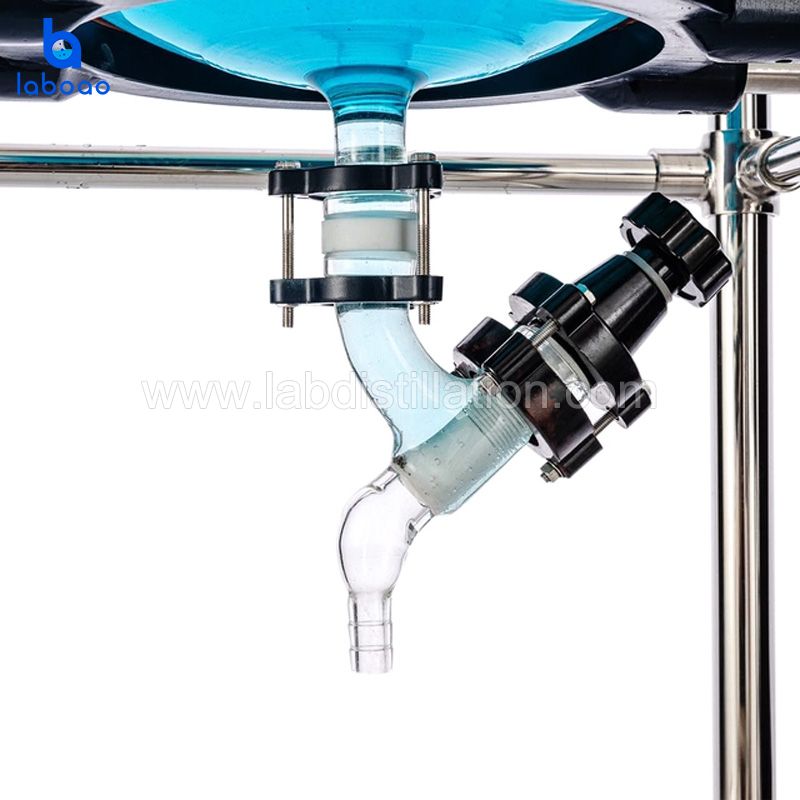

1. The suction filter bottle is made of high-borosilicate 3.3 first-grade materials and has excellent chemical and physical properties. 2. Vacuum filter adopts thicker 304 stainless steel funnel. 3. Frame is made of stainless steel material. 4. Special PTFE material seal, perfect technology, high corrosion resistance and high cost performance. 5. The discharge part is equipped with a special design PTFE valve for the glass flange port. There is no dead corner in the container and it can be disassembled to facilitate the discharge of solid materials. 6. The whole machine has perfect sealing performance, and the negative pressure can reach below 0.095MPa under static state. 7. The structure of the whole machine is scientific and visible. Model LVF-10 LVF-20 LVF-30 LVF-50 Glass material GG-17 Frame material Stainless steel Pipe material 304stainless steel Collection bottle volume 10L 20L 30L 50L Funnel size (mm*mm) 350*220 350*220 450*250 450*250 Funnel material Stainless steel Distance between dumping opening and ground (mm) 450 Filter opening φ80flange opening Air exhaust device 24#standard bucket valve Exterior size(mm*mm*mm) 490*490*1500 490*490*1600 490*490*1650 490*490*1750 Packing size(mm*mm*mm) 1600*540*540 1650*540*540 1700*540*540 1800*540*540 Weight (kg) 50 55 60 65FEATURES
SPECIFICATIONS
