2L Short Path Distillation Kit For CBD Oil Extraction

LSD-2
Short path distillation is a simple technique that involves the distillate traveling a short distance. This technique is used in many types of distillation and has been around for many years in several fields. This distillation is completed under pressure which decreases the boiling point of the liquid.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

Laboratory short path distillation is a thermal separation process of heat-sensitive products under vacuum conditions. By increasing the vacuum to eliminate the atmospheric pressure in the system, when the pressure drops, the boiling point of the contained compounds will drop. This process makes the extraction of heavier molecules faster and more efficient. The short residence time and low evaporation temperature will cause minimal thermal stress on the distillation product. It is designed based on the principle of molecular distillation. Typical applications are polymer organic compounds, especially from the chemical pharmacy and food industries. Distillation is one of the most important thermal separation methods.

FEATURES

(1) The operating temperature is low, which can greatly save energy consumption.

(2) Distillation pressure is low, requiring operation under high vacuum.

(3) The heating time is short, which reduces the thermal damage of heat-sensitive substances.

(4) High degree of separation and high product yield, especially suitable for specific distillation.

SPECIFICATIONS

Model

LSD-2

Flask

2L

Material

Borosilicate   Glass 3.3

Process   principle

Vacuum   distillation

Components

Glass   kit, cold trap kit, electric heating mantle

Interface   Specification

24/40,   29/42

Power

100~2400W

Main   Purpose

Laboratory   reaction/distillation

Voltage

110V/220V,   50/60Hz

Size

240mm*135mm*235mm

Packing   size

570mm*485mm*230mm

Weight

25KG

Optional

10L,   20L

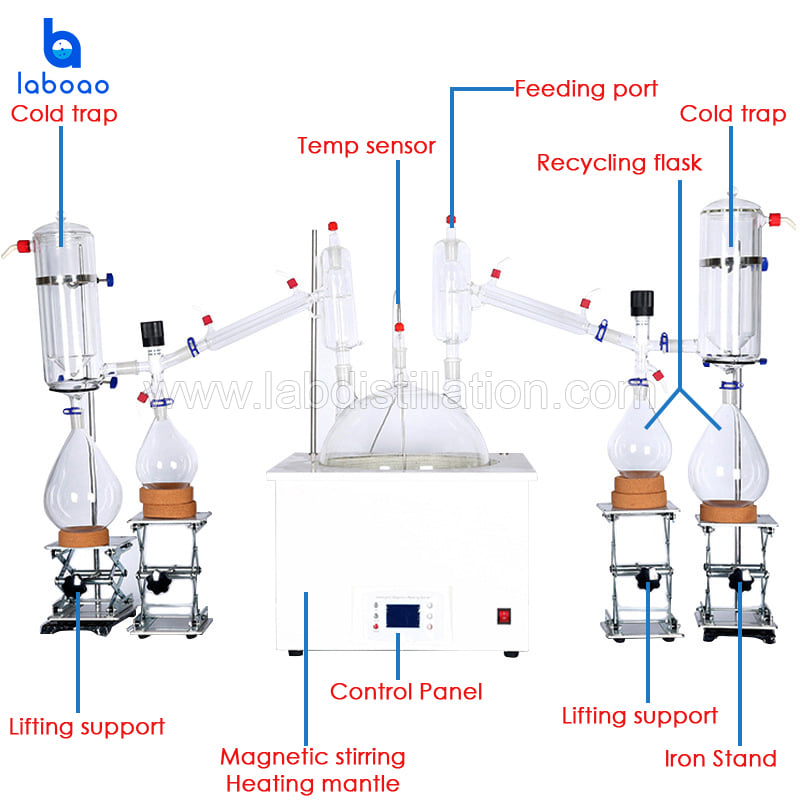

CONFIGURATION LIST

1. Heating mantle *1

9. Receiving flask *1

2. Double neck round bottom   flask *1

10. #24 Plastic clips *6

3. Distillation elbow with   vacuum exhaust port *1

11. Spray paint hoop *1

4. Thermometer casing *2

12. Cross clip *1

5. Wooden support *4

13. GL-14 Connertors *5

6. Three-claw distillation   receiver *1

14. Iron chain 40~145mm *1

7. Round bottom flask *3

15. Iron stand 250*160mm *1

8Cold trap *1

16Lifting support 100mm *1

4 Good Reasons To Choose LABOAO 2L Short Path Distillation Kit For CBD Oil Extraction
