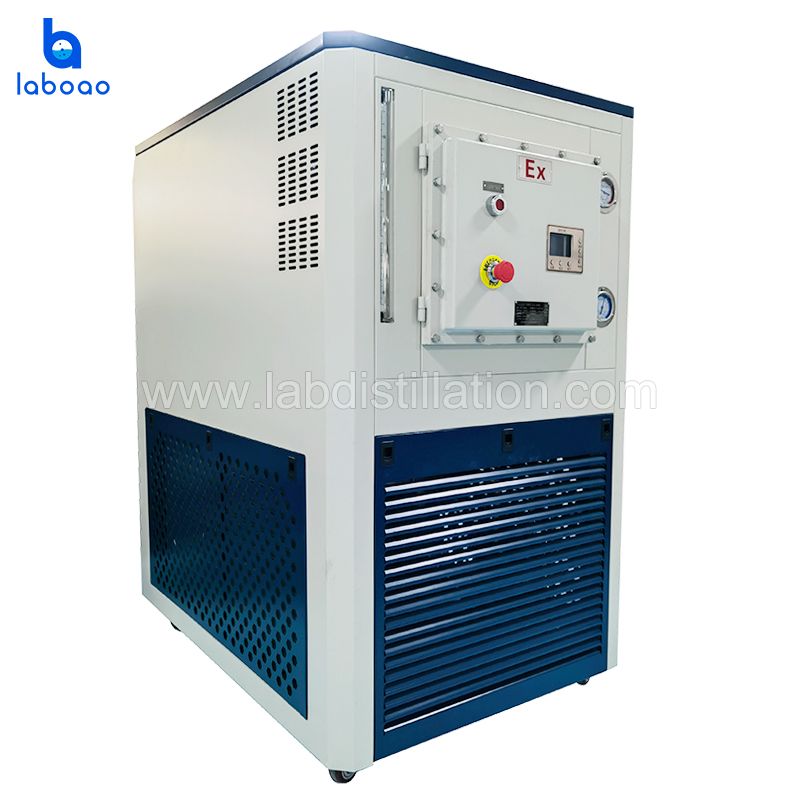

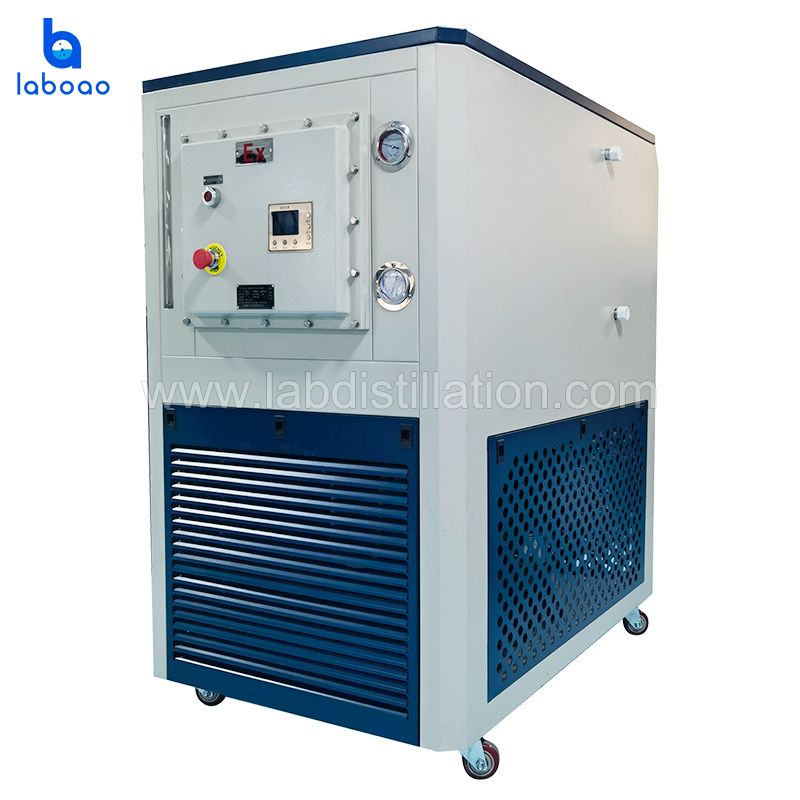

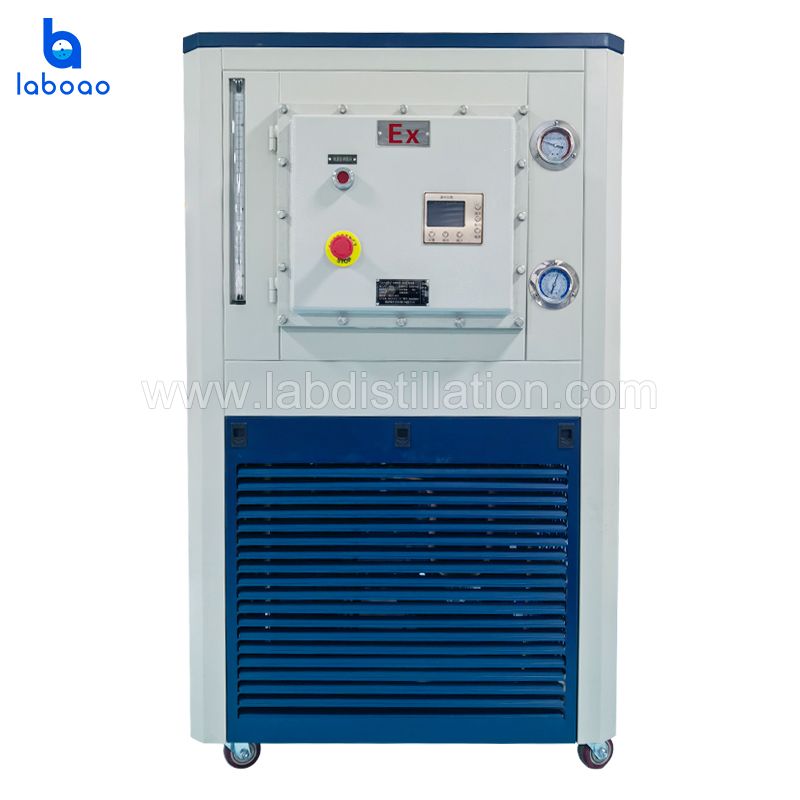

200L Heating And Cooling Circulating Baths With Explosion Proof
LGD-200EX
The explosion-proof high and low temperature circulator has both the cooling function and the heating function. It is composed of refrigeration unit, heating unit, circulation system and control system. This product is specifically divided into capacity and temperature. Generally, the commonly used temperature is -20°C~200°C, -40°C~200°C, and various high and low temperature ranges can be customized according to customer needs.
Download
SPECIFICATIONS
Model | LGD-200/40EX | LGD-200/80EX |
Matched reactor | 200L | 200L |
Tank Volume(L) | 50 | 50 |
Heating volume(L) | 30 | 30 |
Heating tank size(mm) | ￠350*350 | ￠350*350 |
Oil tank size(mm) | 400*400*400 | 400*400*400 |
Working temperature range(℃) | -40℃ to +200℃ | -80℃ to 200℃ |
Ambient temperature(℃) | ≤25 | ≤25 |
Lowest temperature (No load) | -40℃ | -82℃ |
Power | 380V±10% 50HZ | 380V±10% 50HZ |
Heating power(W) | 18000 | 24000 |
Temperature accuracy(℃) | ±0.1 | ±0.1 |
Sensor | PT100 | PT100 |
Medium quality degree | 500C.S.T | 500C.S.T |
Circulating pump power(w) | 750 | 750 |
Lift head(m) | 22 | 22 |
Flow(L/min) | 80 | 80 |
The compressor adopts explosion-proof treatment (explosion-proof control box, explosion-proof circulating pump, explosion-proof fan, explosion-proof tube) explosion-proof grade ExdIIBT4 | ||
5 Good Reasons To Choose LABOAO 200L Heating And Cooling Circulating Baths With Explosion Proof
-
The temperature control accuracy is generally ±1°C, and an external sensor can be connected
-
It has a PLC computer module, which can be connected to a computer, can realize remote control, can realize multi-point continuous temperature control, segmented temperature control, constant temperat
-
Equipped with USB interface, with data download function
-
Maximum temperature limit to prevent the equipment from getting out of control
-
Power supply protection, compressor overheating protection, sensor protection
