10L Laboratory Crystallization Reactor For CBD Isolates

LCR-10L

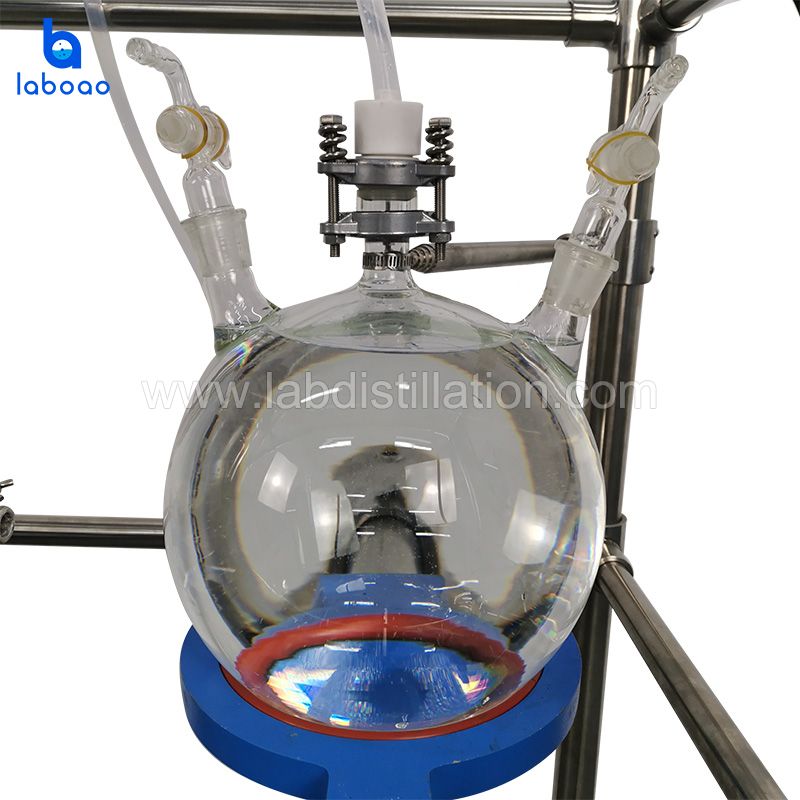

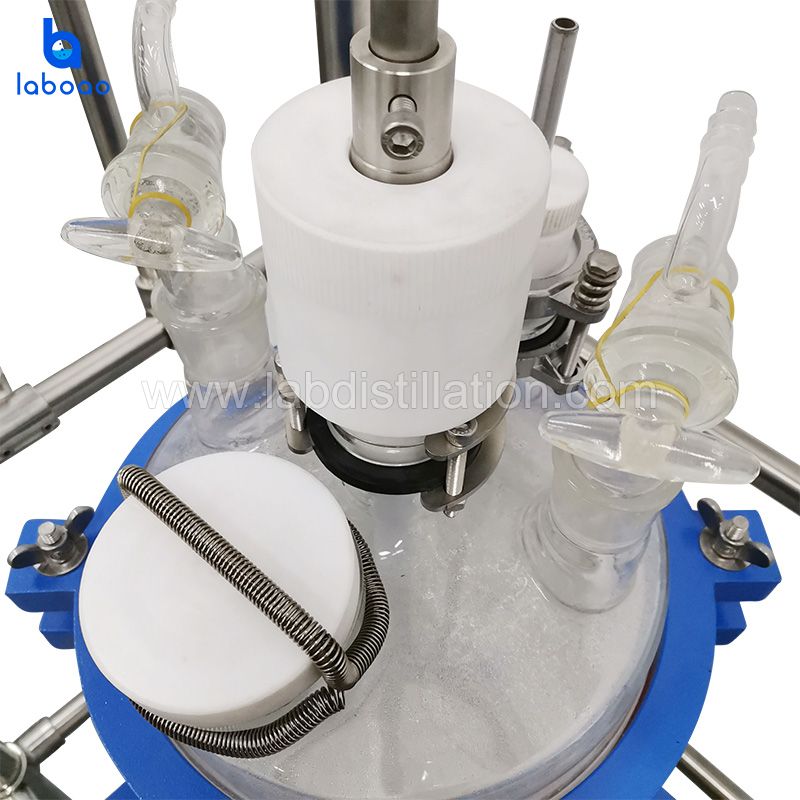

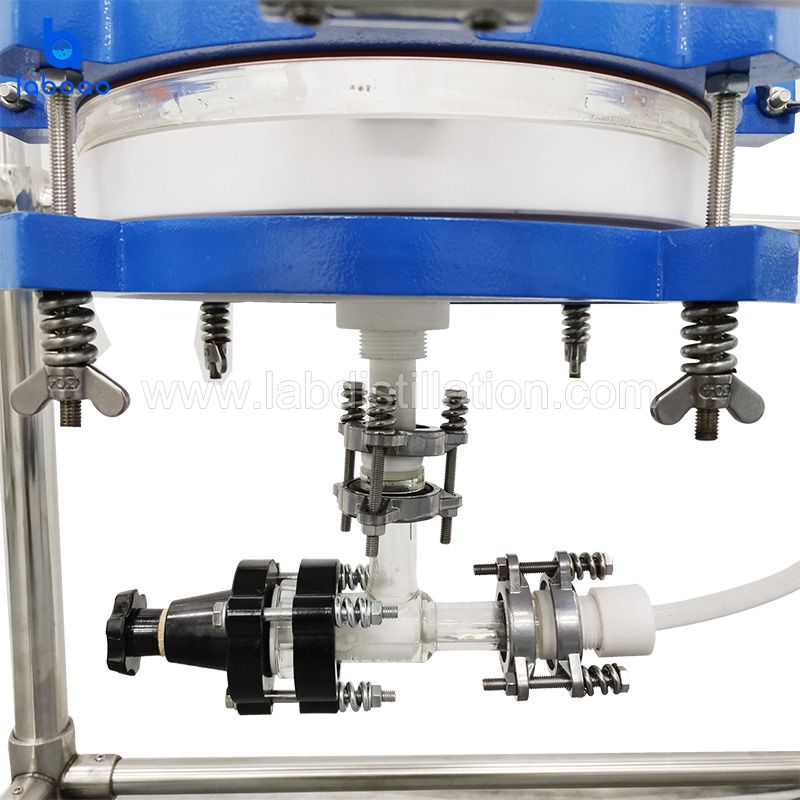

The 10L laboratory crystallization reactor for cbd isolates is vacuum filtered, and can also be used for concentration, distillation, extraction, crystallization and other reactions. It is commonly used in biopharmaceuticals, peptide synthesis, scientific research experiments, and is an ideal instrument for small-scale and pilot-scale production. The crystallization filter reactor is s a commonly used biochemical instrument, which combines the functions of the reactor and the filter. It suitable for the chemical reaction and physical process under the synthesis, catalysis or other solid liquid of the laboratory / factory, so that one or more steps can be carried out in the same kettle (such as filtration after the completion of the reaction), thus reducing the drift of material measurement and reducing the transfer times of the reaction substrate. It is used in such fields as pharmaceuticals, peptide synthesis, tobacco research and so on. All contact parts are inert and hence allow the same equipment to be used with a wide range of chemicals and solvents. Appropriate filter is used to separate the solid particles of the slurry forming a filtered board. The filtrate drains to the bottom and can be collected from the bottom outlet valve. The filter cake can be easily removed from the bottom to wash PTFE filter. It’s widely used in pharmaceutical and chemical industries, especially in drug synthesis, fine chemical industry, petrochemical process, new material synthesis, concentration, crystallization and other experiments.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

SPECIFICATIONS

Model

LCR-10L

Material   capacity

10L

Jacket   capacity

4L

Number of   lid openings

6(stir port,   temperature measure port, liquid port, solid port, vacuum port, spare port)

PTFE mixing   paddle

0-400rpm

Motor speed

304   stainless steel

Speed mode

Single layer   push type

temperature   display

Frequency

Discharge   valve

Digital   Display

Filter   chassis

PTFE core   three-way valve can pass hydrogen

Filter plate

Removable   PTFE body

Filter   diameter

197mm

Sand core   aperture

40-60μm optional

Liquid feed   valve

PTFE   three-way valve

Sealing   method

Self-lubricating   mechanical seal

Use   environment temperature

5℃~40℃

Size(L*W*H)

500*500*1700mm

Voltage

220V/50Hz (can   be customized)

Optional

1. Spray   device(2 can be used to clean the sign body without dead angle at 360°   through negative pressure)

2. Explosion-proof   motors

3. Explosion-proof   inverter

10 Good Reasons To Choose LABOAO 10L Laboratory Crystallization Reactor For CBD Isolates
