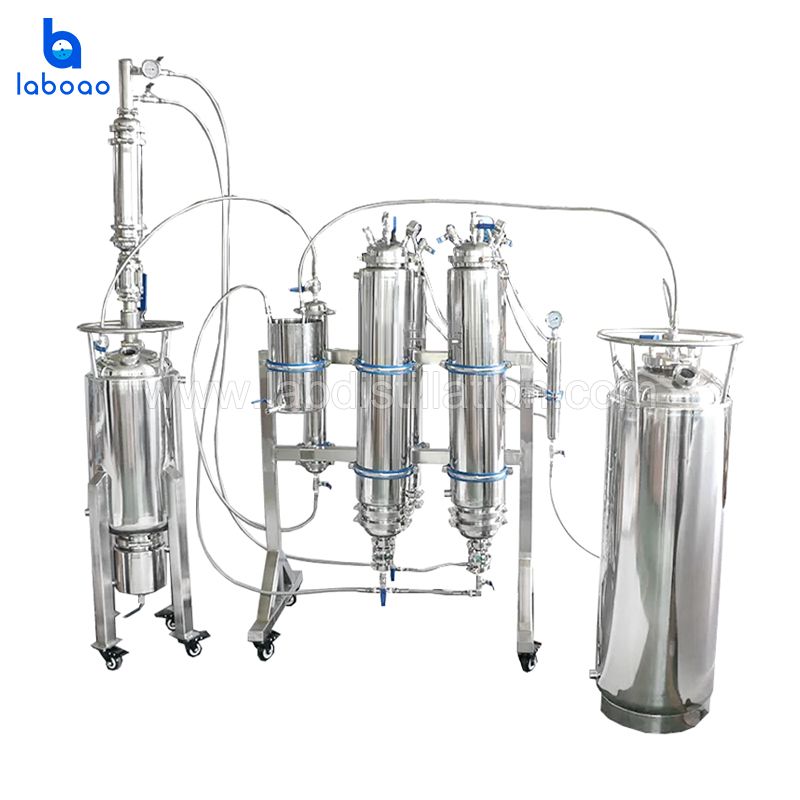

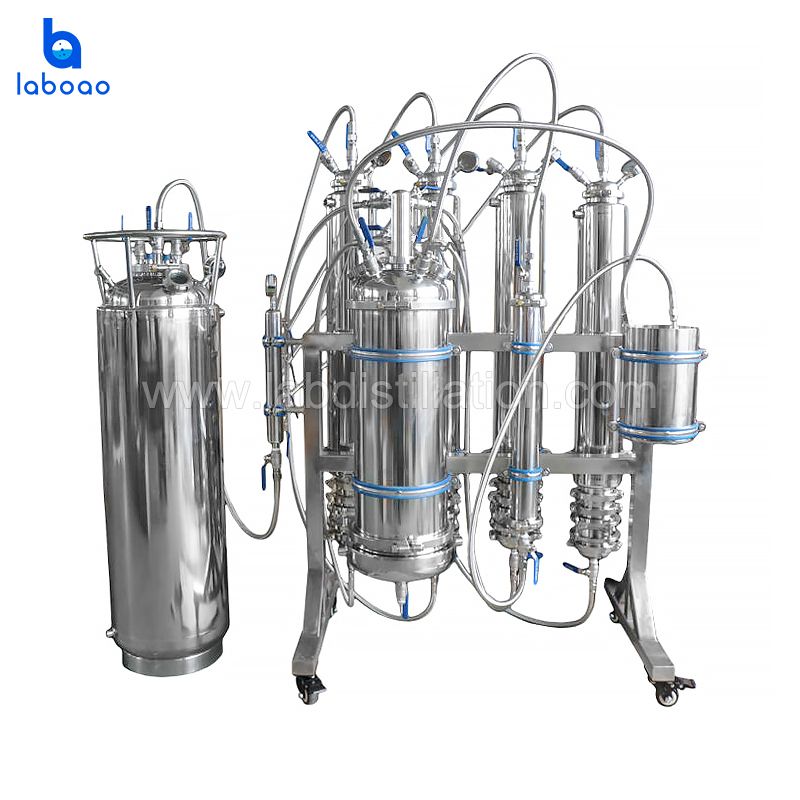

10LB Turnkey Closed Loop BHO Extraction System
10LB Turnkey Closed Loop BHO Extraction System

10LB Turnkey Closed Loop BHO Extraction System

LCLE-10
LABOAO supply of 10lb closed loop extractor is used for botanical extraction within a fully sealed and vacuumed system, permitting no solvents to be exposed to the air. Oil bearing solvent is collected in the bottom base of the extractor, The solvent is then separated or “recovered” leaving behind the purified oil. This unit is a passive unit which employs pressure differences brought on by the regulation of temperature to migrate solvent.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

SPECIFICATIONS

Model

LCLE-10

Capacity

10LB (customizable)

Extractor tank

12"x40" single jacketed recovery   tank with cooling coil and dip tube

10"x36" Single jacketed   collection tank

Splatter platter

10"x6"

Max pressure

145PSI

Material column size

4"X48"(can be customized)

Filter dryer size

3"X24"

Cooling coil size

10"x10"

Body Material

304 Stainless Steel

Operating Temperature

-42℃~72℃

Surface treatment

Sanitary high mirror polish

Connection method

High pressure clamp

6 Good Reasons To Choose LABOAO 10LB Turnkey Closed Loop BHO Extraction System
