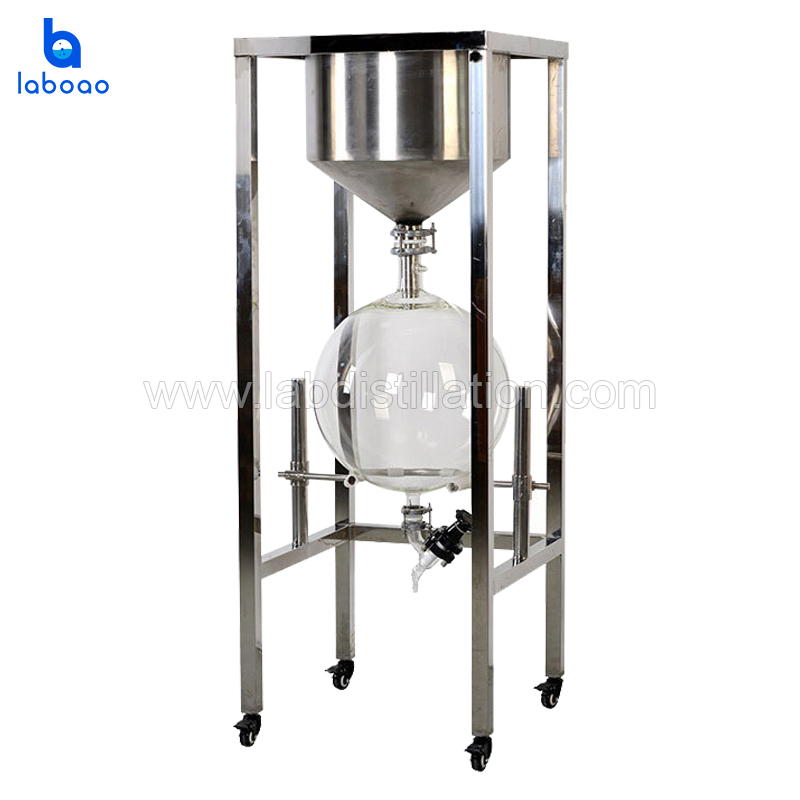

Stainless Steel Vacuum Filter

Vacuum suction filter is a laboratory specific filter. It is equipped with microporous membranes with different pore sizes and then vacuum suction filtration. Derived products that are developed on the basis of the existing single-layer glass reactors are mainly used for liquid-liquid extraction and can also be used for room temperature reactions. After practical use, the performance is superior, and has been widely used.
Available ModelsLVF-10/LVF-20/LVF-30/LVF-50

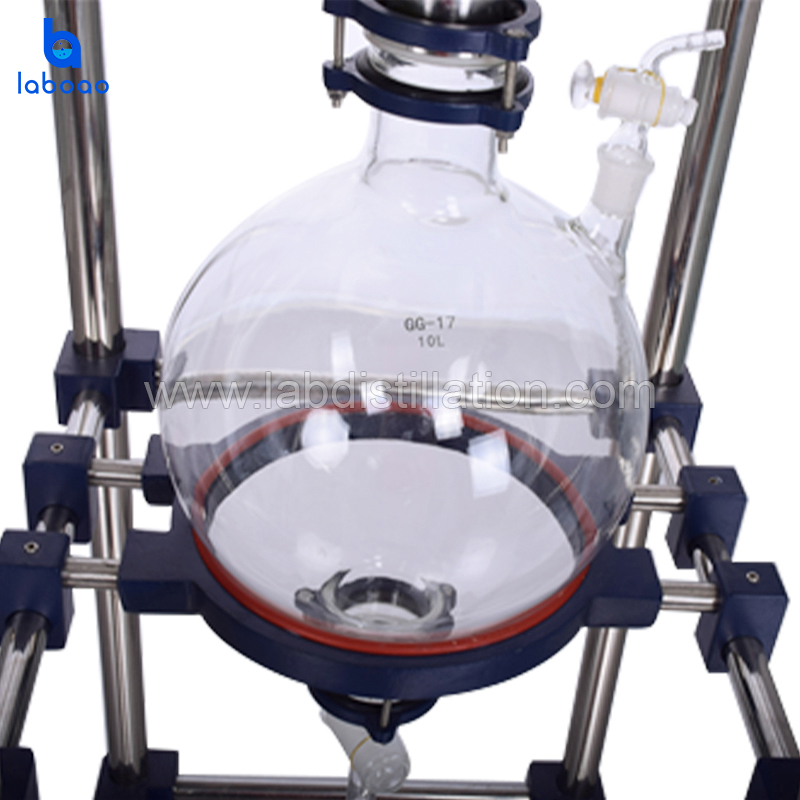

  • The suction filter bottle is made of high-borosilicate 3.3 first-grade materials

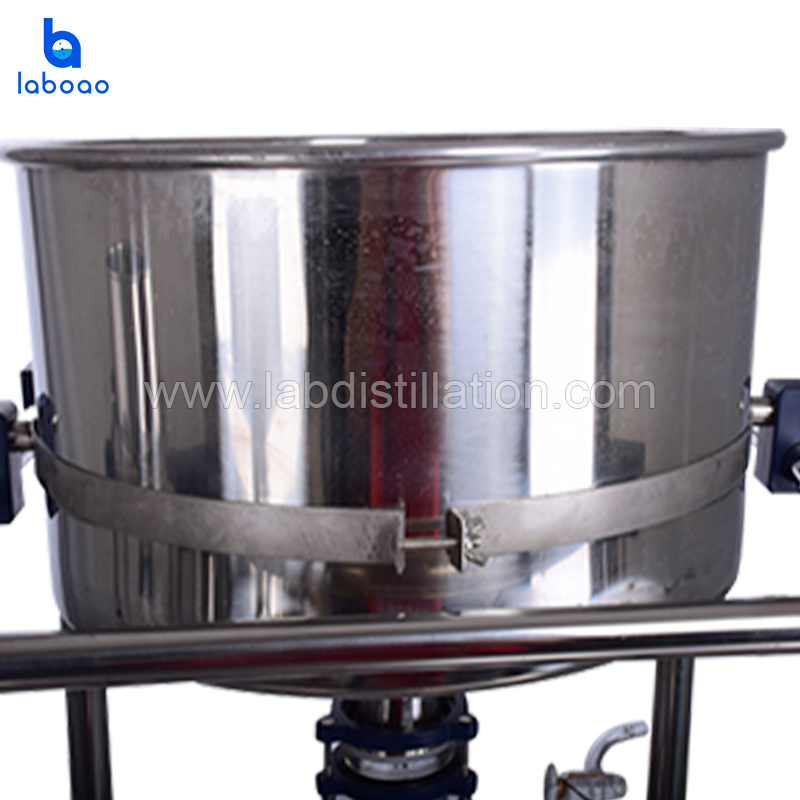

  • Vacuum filter adopts thicker 304 stainless steel funnel
  • Frame is made of stainless steel material

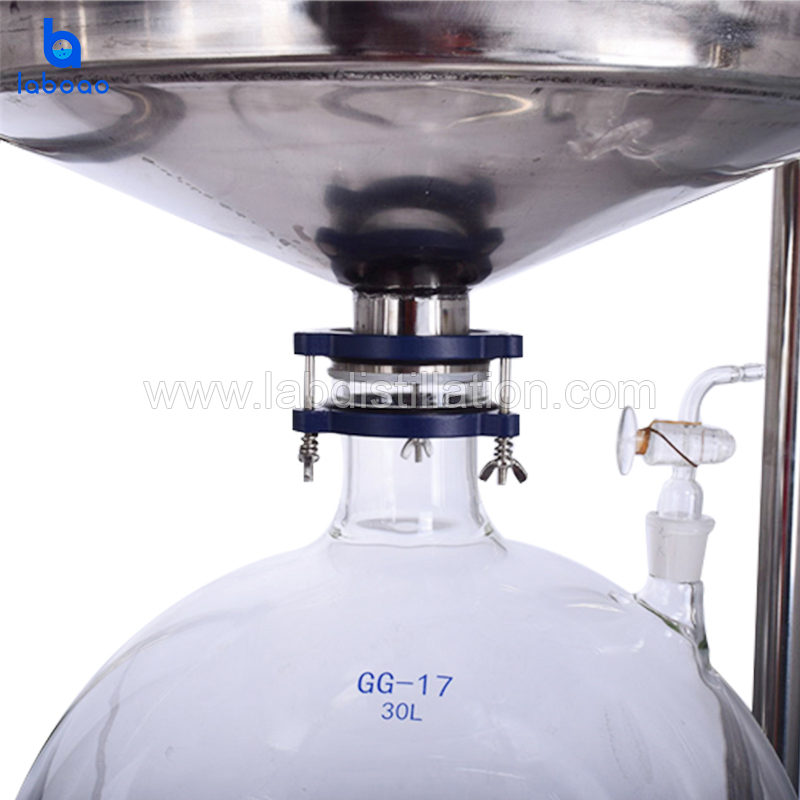

  • Special PTFE material seal

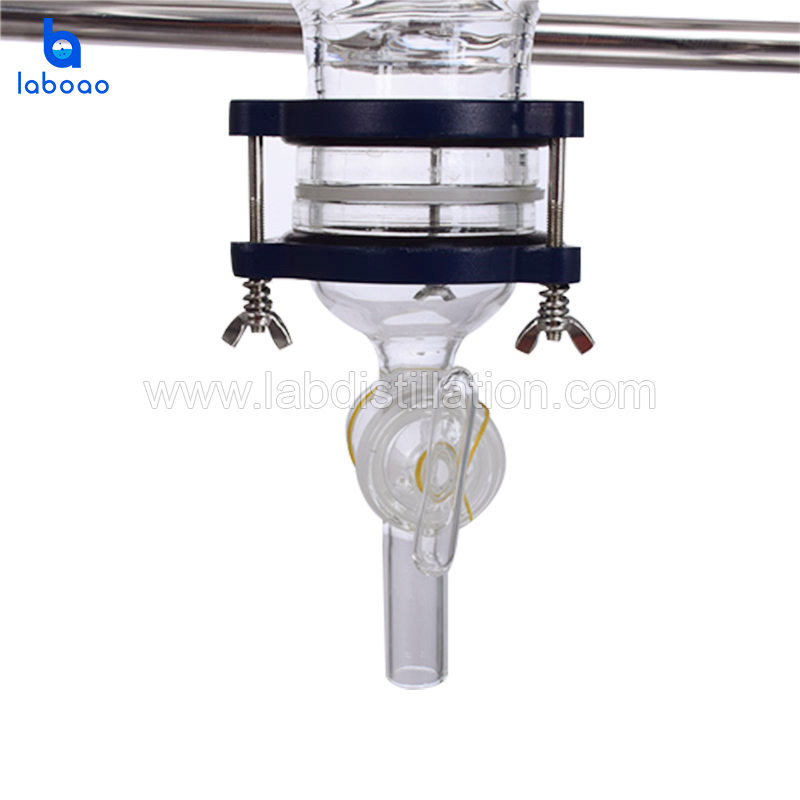

  • The discharge part is equipped with a PTFE valve
  • The negative pressure can reach below 0.095MPa under static state
REQUEST A QUOTE
Download

SPECIFICATIONS

Model

LVF-10

LVF-20

LVF-30

LVF-50

Glass material

GG-17

Frame material

Stainless   steel

Pipe material

304stainless   steel

Collection   bottle volume

10L

20L

30L

50L

Funnel size   (mm*mm)

350*220

350*220

450*250

450*250

Funnel   material

Stainless   steel

Distance   between dumping opening and ground (mm)

450

Filter opening

φ80flange   opening

Air exhaust   device

24#standard   bucket valve

Exterior   size(mm*mm*mm)

490*490*1500

490*490*1600

490*490*1650

490*490*1750

Packing   size(mm*mm*mm)

1600*540*540

1650*540*540

1700*540*540

1800*540*540

Weight (kg)

50

55

60

65
