20L Rotary Evaporator

Rotary evaporator (or rotavap/rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
Available ModelsLRE-2002
  • Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree.
  • Uses the main and secondary efficient double condenser.

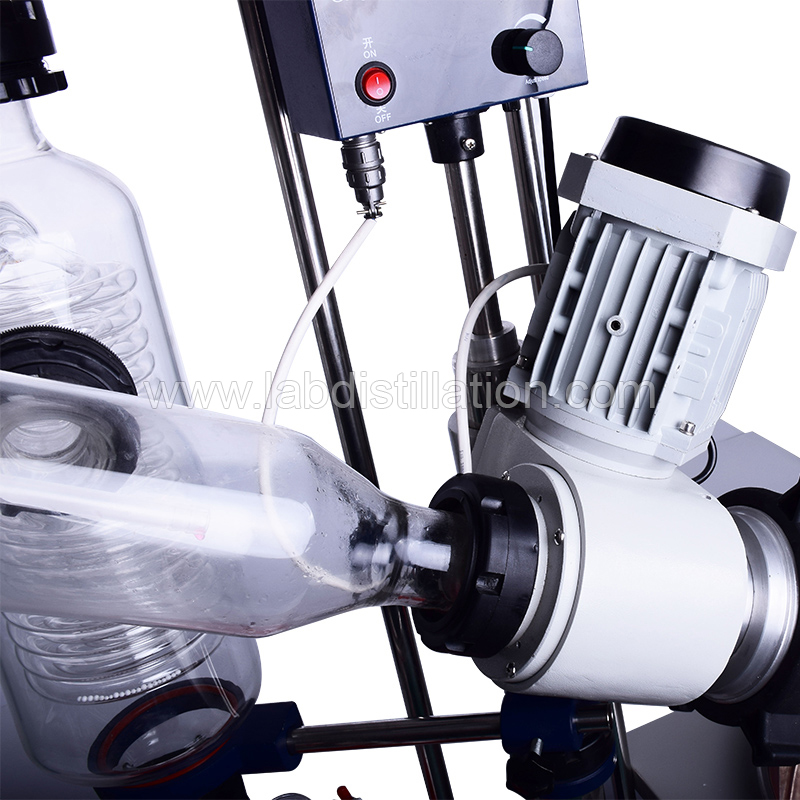

  • Rotating bottle with nut connection, it is easy to load and unload.
  • There is tap valve under the collection bottle mouth, recycled solvent is very fast.

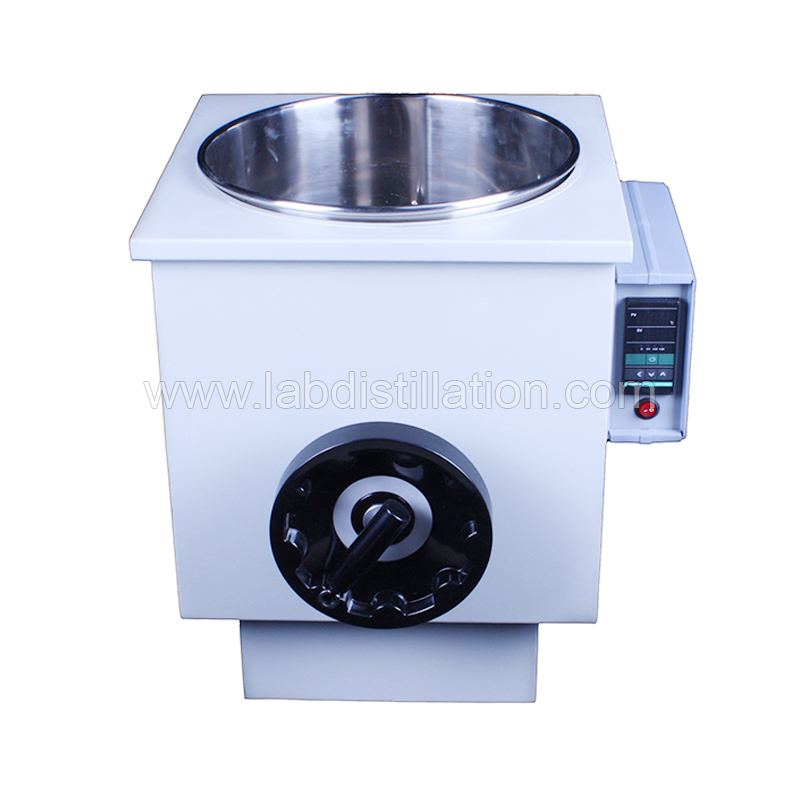

  • Water bath with digital and continuous temperature controlling.
  • The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass.
Download

SPECIFICATIONS

Specification

Model

LRE-2002

Glass material

GG-17

Frame material

Stainless steel

Pot shell Material

Spray anti-corrosion  630*534*638mm

Pot bravery material

Stainless steel    450*250mm

Plate size

534*504mm

Evaporator flask

20L    95Flange port

Collect flask

10L    60Flange port

Vacuum degree

0.098Mpa

Rotary power

120W

Rotary speed

0-110rpm

Heating power

5KW 220V/50Hz

Heating temp.range

0-400

Temp. accuracy

±1

Lifting disctance

180mm

Dimension(mm*mm*mm)

1170*540*2200

Packing size(mm*mm*mm)

1370*680*710   690*690*840   1CBM

Packing weightKG

(86+49)135

Configuration list

Speed mode

Electronic stepless adjustable   speed

Rotor speed display

digital display

Temp. display

K type sensor with digital display

Temp. control

Intelligent temp.control

Sealing method

PTFE sealing

Condenser

Vertical efficiency three reflux   condenser,Main condenser130*680Secondary condenser160*530

Continuous
  collection

non-return valve control

Lifting mode

Bath Manual lifting

Temp.
  measurement methods

19#Standard port

Continuous feed

34#Standard port feeding valve

Discharge valve

PTFE discharge valve,¢60Flange port

Vacuum display

Vacuum gauge

Optional

Lifting mode

Automatic electric lifting

Collecting device

Double collect bottle

Anti-explosion

Explosion-proof   motor&Explosion-proof inverterEX120W

Frame material optional

Spray or spray PTFE

Bath material

Fully304Stainless steel
