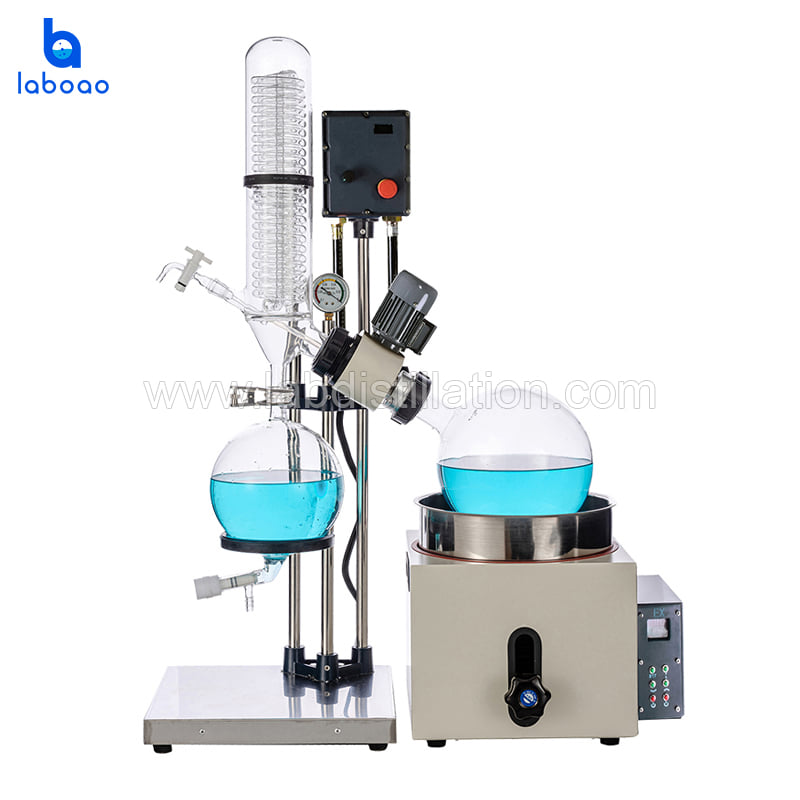

1L-5L Explosion Proof Manual Rotary Evaporator

The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries.
Available ModelsLRE-201EX/LRE-301EX/LRE-501EX
  • All of the high boric silicon glass (expansion coefficient 3.3) and polytetrafluoride material
  • The main bracket uses cold plate anti-corrosion spray + aluminum alloy material
  • The sealing system uses the polytetrafluoroethylene + fluororubber
  • Vacuum pressure gauge,Integrated condenser
  • The piston feeding valve sleeve piratifores lengthen tubes
  • Constant temperature bath temperature digital display
  • Variable frequency speed, explosion-proof switch
Download


DESCRIPTION


SPECIFICATIONS

Model

LRE-201EX

LRE-301EX

LRE-501EX

Voltage frequency

220V/50Hz

Total power

1040W

2040W

Rotating motor power

EX40W

Heating power

1000W

2000W

Vacuum

0.098Mpa

Rotary flask capacity

1L

3L

5L

Collect flask capacity

1L

2L

3L

Rotating speed

0~120rpm

Temperature range

RT-180

Temperature control accuracy

±1

Bath pot lifting stroke

200mm

Condenser size

φ85x430mm

φ100x530mm

Condensation area

0.17

0.26

Feed valve

19#standard port

Vacuum pumping outlet

Outer diameterφ10mm

Condensate tube into and out   circulation port

Outer diameterφ12mm

Bath size

φ245x140mm

φ265x160mm

φ280x170mm

Overall size(W*D*H)

750x360x1060mm

790x360x1090mm

Machine net weight

32KG

33KG

34KG

Package Size

990x620x470mm

1090x690x490mm

Package weight

49KG

50KG

51KG
