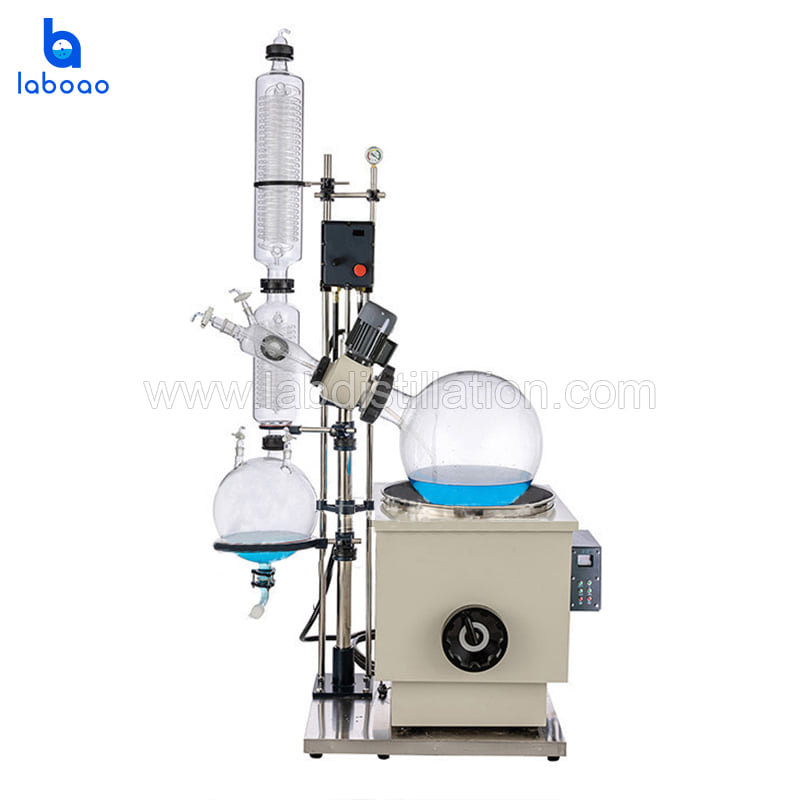

10L-50L Explosion Proof Manual Rotary Evaporator

The explosion-proof rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries.
Available ModelsLRE-1002EX/LRE-2002EX/LRE-5003EX
  • All of the high boric silicon glass (expansion coefficient 3.3) and polytetrafluoride material
  • The main bracket uses cold plate anti-corrosion spray + aluminum alloy material
  • The sealing system uses the polytetrafluoroethylene + fluororubber
  • Vacuum pressure gauge,Integrated condenser
  • The piston feeding valve sleeve piratifores lengthen tubes
  • Constant temperature bath temperature digital display
  • Variable frequency speed, explosion-proof switch
Download

SPECIFICATIONS

Model

LRE-1002EX

LRE-2002EX

LRE-5003EX

Voltage frequency

220V/50Hz

220V+380V

Total power

3120W

5120W

8180W

Rotating motor power

EX120W

EX180W

Heating power

3000W

5000W

8000W

Vacuum

0.098Mpa

Rotary flask capacity

10L

20L

50L

Collect flask capacity

5L

10L

20L

Rotating speed

0~120rpm

Temperature range

RT-180

Temperature control accuracy

±1

Bath pot lifting stroke

180mm

Condenser size

Main   condenser: φ120x620mm

Sub-condenser:   φ135x475mm

Main   condenser: φ130x700mm

Sub-condenser:   φ160x530mm



Main   condenser: φ160x835mm

Sub-condenser:   φ160x530mm

Condensation area

0.51(0.33+0.18)

0.95(0.46+0.49)

1.44(0.95+0.49)

Feed valve

34#standard port

40#standard port

Multi-function port

19#standard port

Release valve

24#standard port *2

Discharge valve

Outer diameter 20mm, 200mm from   the bottom plate

Outer diameter 20mm, 320mm from   the bottom plate

Vacuum pumping outlet

Outer diameterφ10mm

Condensate tube into and out   circulation port

Outer diameterφ16mm

Bath size

φ350x220mm

φ450x260mm

φ550x320mm

Overall size(W*D*H)

930x560x1910mm

1000x600x2130mm

1330x730x2340mm

Machine net weight

83KG

97KG

128KG

Package Size

1320x780x755mm

1350x670x720mm   + 680x680x790mm

1420x820x720mm   + 830x730x910mm

Package weight

116KG

143KG

195KG
